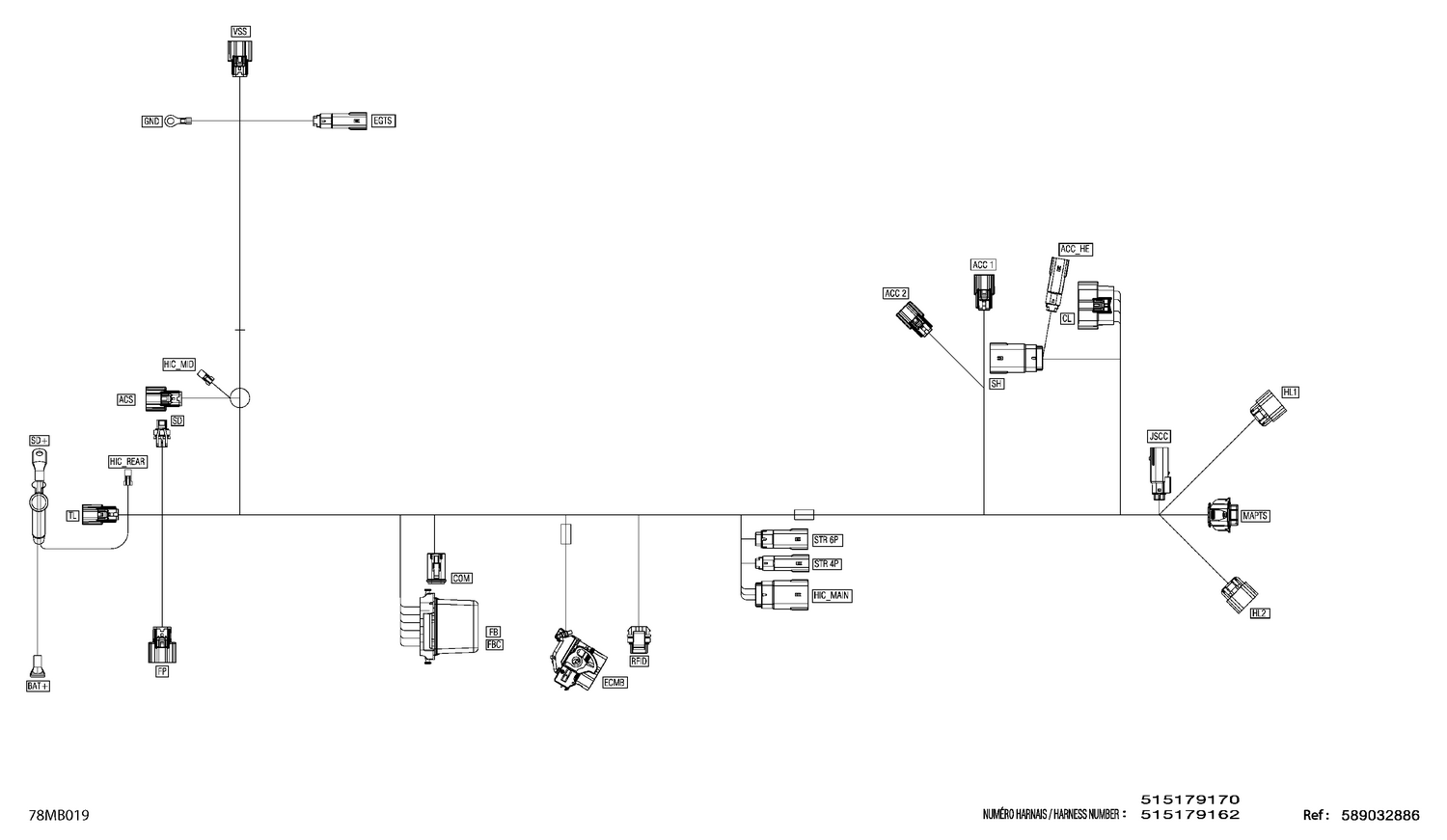

08- Electric - Main Harness - 515179170
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| CL | 278002858 | Female Housing 20 Circuits |
| CL | 278002860 | Sealing Cap |
| CL | 515178014 | Female Terminal |
| CL | 515178018 | Female Terminal |
| COM | 710002705 | Lock |
| COM | 710002706 | Female Housing 6 Circuits |
| COM | 710005438 | Female Terminal |
| COM | 710005439 | Female Terminal |
| ECMB | 515178168 | Connecteur Femelle 48 Circuits |
| ECMB | 710001589 | Female Terminal |
| ECMB | 710001590 | Female Terminal |
| ECMB | 710001591 | Cover, 48 positions |
| ECMB | 710001592 | Plug |
| ECMB | 710001727 | Female Terminal |
| EGTS | 515178013 | Male Terminal |
| EGTS | 515178020 | Logement Mâle 2 Circuits |
| EGTS | 515178223 | Clip Connector |
| F1 | 710000747 | Little Fuse, 30 Amperes |
| F2 | 710000744 | Little Fuse, 10 Amperes |
| F3 | 710000745 | Little Fuse, 15 Ampere |
| F4 | 278002389 | Little Fuse, 25 Ampere |
| F5 | 710000742 | Little Fuse, 5 Amperes |
| F6 | 710000745 | Little Fuse, 15 Ampere |
| FB | 278000218 | Wire Seal |
| FB | 278001065 | Wire Seal |
| FB | 278002578 | Female Terminal |
| FB | 515177177 | Female Terminal |
| FB | 515178762 | Fuse Box Ass'y |
| FB | 710000048 | Wire Seal |
| FB | 710000918 | Female Terminal |
| FBC | 278002286 | Fuse Box Cover |
| FBC | 516010620 | Fuse Decal |
| FP | 515178018 | Female Terminal |
| FP | 515178474 | Female Housing |
| GND | 278001392 | Open Barrel Terminal |
| HIC_MAIN | 515178013 | Male Terminal |
| HIC_MAIN | 515178223 | Clip Connector |
| HIC_MAIN | 515179155 | Male Molex Connector 12 Cavities |
| HIC_MAIN | 710006670 | Male Molex Terminal |
| HIC_MID | 515177181 | Female Connector |
| HIC_MID | 515177185 | Female Terminal |
| HIC_REAR | 515177185 | Female Terminal |
| HIC_REAR | 515177445 | PLUG - Call your local BRP dealership |
| HIC_REAR | 515178749 | Connector JST Female 6 Cavities |
| HL1 | 515178006 | Female Housing |
| HL1 | 710001228 | Terminal |
| HL1 | 710001332 | Seal Wire |
| HL2 | 515178006 | Female Housing |
| HL2 | 710001228 | Terminal |
| HL2 | 710001332 | Seal Wire |
| JSCC | 515178013 | Male Terminal |
| JSCC | 515178347 | Male Housing Connector 4 Pins |
| MAPTS | 415128501 | Seal |
| MAPTS | 515176410 | Male Connector |
| MAPTS | 710001137 | Female Terminal |
| RFID | 710001161 | Housing |
| RFID | 710001163 | Wire Seal |
| RFID | 710001164 | Female Terminal |
| RY1 | 715900824 | Relay This part replaces 710001778. |
| SD | 515177192 | Female Housing, 2 Circuits |
| SD | 710000925 | Terminal |
| SD | 710001332 | Seal Wire |
| SH | 515178013 | Male Terminal |
| SH | 515178578 | Block 12 |
| TL | 515178014 | Female Terminal |
| TL | 515178018 | Female Terminal |
| TL | 515178346 | Female Housing Connector 4 Pins W/O CPA |
| VSS | 515178954 | Housing |
| 3000 | 515179170 | Chassis Wiring Harness |
