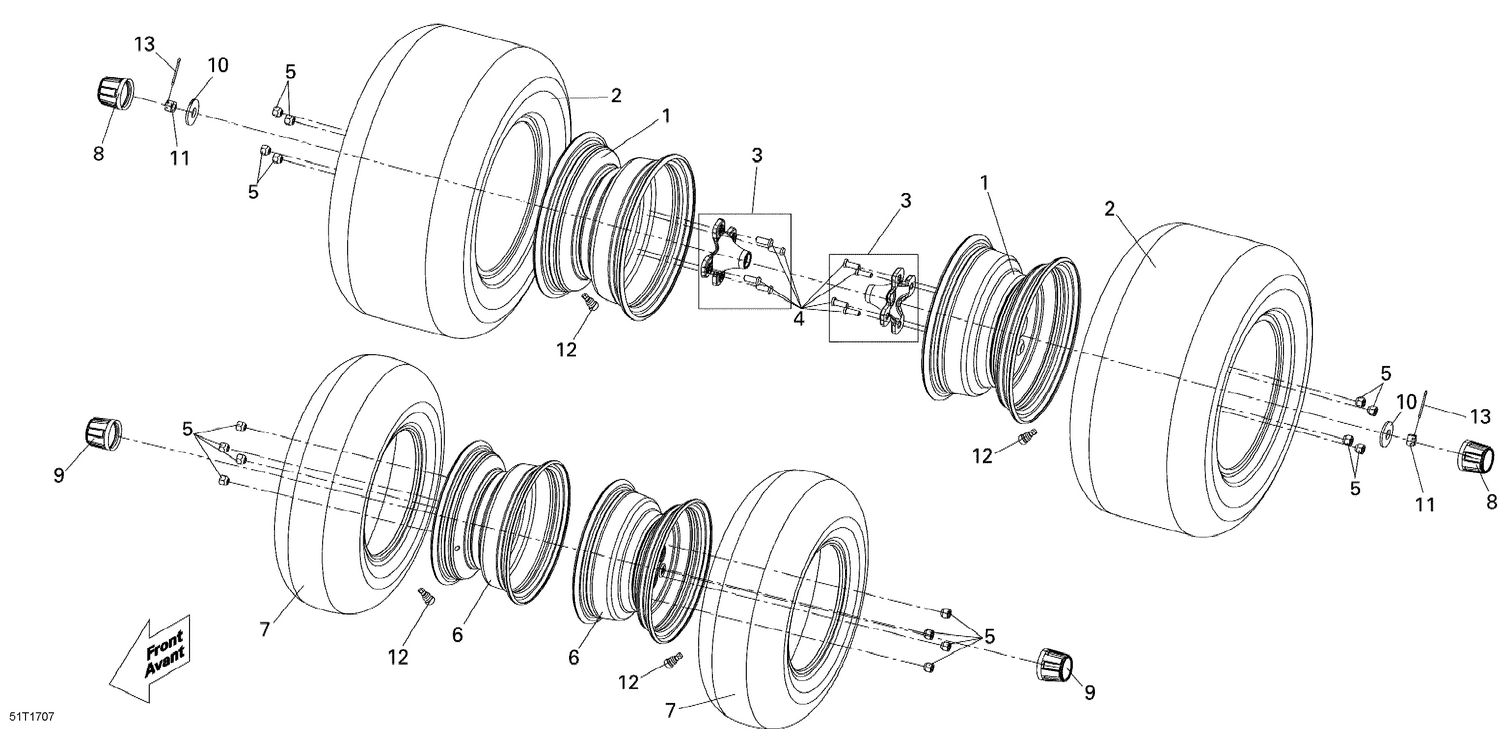

07- Wheels And Tires
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S42650RCA000KY | Black, Rear Rim Ass'y. |
| 2 | S42710RCA000 | Rear Tire |
| 4 | S90114RCA000 | Rear Hub Bolt |
| 5 | S90315RCA000 | Nut |
| 6 | S44650RCA000KY | Black, Front Rim Ass'y |
| 7 | S44710RCA001 | Front Tire This part replaces S44710RCA000. |
| 8 | S42609RCA000 | Rear Wheel Cap |
| 9 | S44609RCA000KY | Front Wheel Cap |
| 10 | 250200006 | Spring Washer 14 mm |
| 11 | S90310RCA000 | Castle Nut 14 mm |
| 12 | 705400193 | Rim Valve With Cap |
