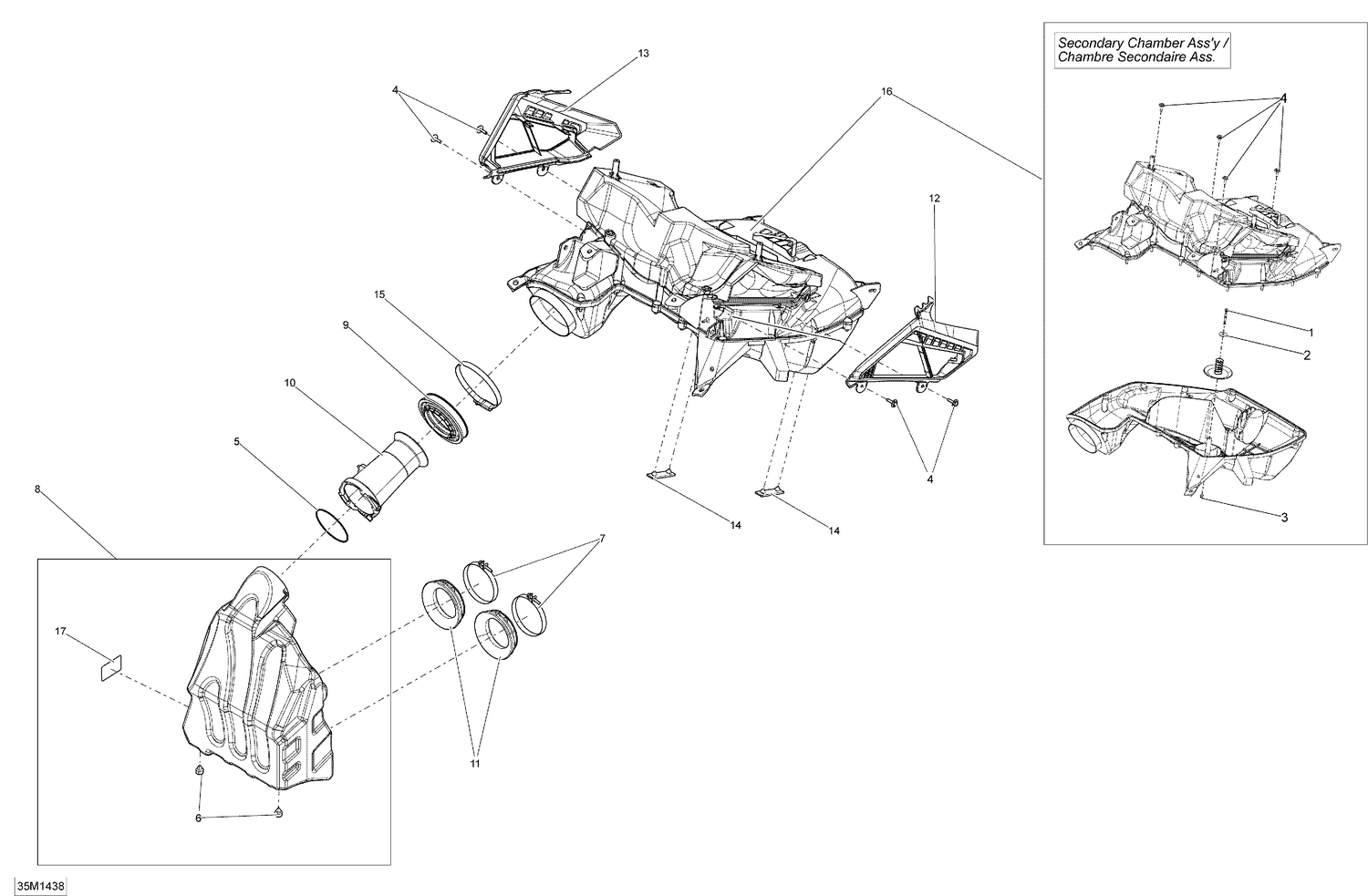

02- Air Intake System _35M1438
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205444086 | Socket Head Screw M4 X 40 |
| 2 | 224060201 | Flat Washer |
| 3 | 232541414 | Elastic Stop Nut M4 |
| 4 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 5 | 293300115 | O-Ring |
| 6 | 293830005 | Rubber Bumper |
| 7 | 508000346 | Gemi Clamp |
| 8 | 508000535 | PRIMARY CHAMBER ASS'Y - Call your local BRP dealership |
| 9 | 508000567 | Boot |
| 10 | 508000662 | Flute |
| 11 | 508000721 | INTAKE ADAPTER - Call your local BRP dealership |
| 12 | 508000730 | RH Air Filter |
| 13 | 508000731 | LH Air Filter |
| 14 | 508000744 | Stopper |
| 15 | 514052924 | Norma Clamp |
| 16 | 508000722 | Secondary Chamber Ass'y |
