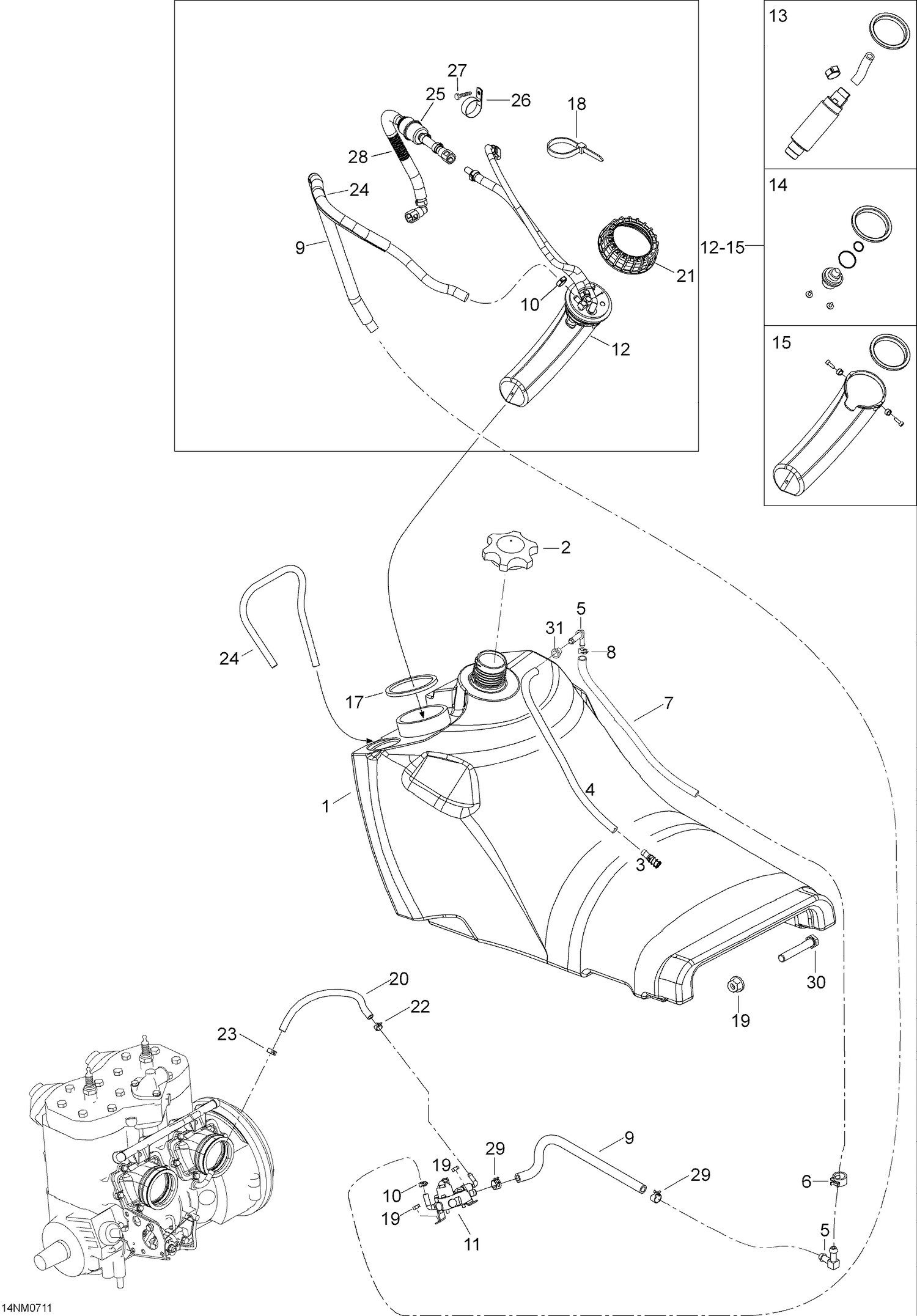

| Ref | Part Number | Description |
|---|
| 1 |
605253345 |
Polttoainetankki |
| 2 |
709000059 |
FUEL CAP - Call your local BRP dealership |
| 3 |
414872100 |
Fuel filter (in tank, fuel line) |
| 4 |
39048 |
Fuel line 12.5/7.5, 440 mm |
| 5 |
5341709 |
CONNECTOR-MALE - Call your local BRP dealership |
| 6 |
605627003 |
Kiristin |
| 7 |
513033374 |
Formed Hose This part replaces 513033027. |
| 8 |
513032979 |
UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 9 |
513033022 |
HOSE 8 MM, METER - Call your local BRP dealership |
| 10 |
414655700 |
Jousiklemmari |
| 11 |
403901812 |
Polttoainepumppu |
| 13 |
861302700 |
PUMP KIT - Call your local BRP dealership |
| 14 |
861302100 |
REGULATOR KIT - Call your local BRP dealership |
| 15 |
861302800 |
Reservoir kit |
| 17 |
513033039 |
SEAL - Call your local BRP dealership |
| 18 |
414115200 |
Tie-Rap 180 mm This part replaces 27026. |
| 19 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 20 |
513033035 |
HOSE - Call your local BRP dealership |
| 21 |
513033040 |
Kierrekansi, pa-pumpulle |
| 22 |
414415200 |
Universal Spring Clamp |
| 23 |
513033029 |
Universal Spring Clamp |
| 24 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership |
| 25 |
513033133 |
Polttoaineen suod. + letku |
| 26 |
513033047 |
Putkenside |
| 27 |
40327 |
Self tapping screw M6 x 12 |
| 28 |
27127 |
Suojaspiraali |
| 29 |
414420700 |
Universal Spring Clamp |
| 30 |
40031 |
Hex. screw M6 x 25 |
