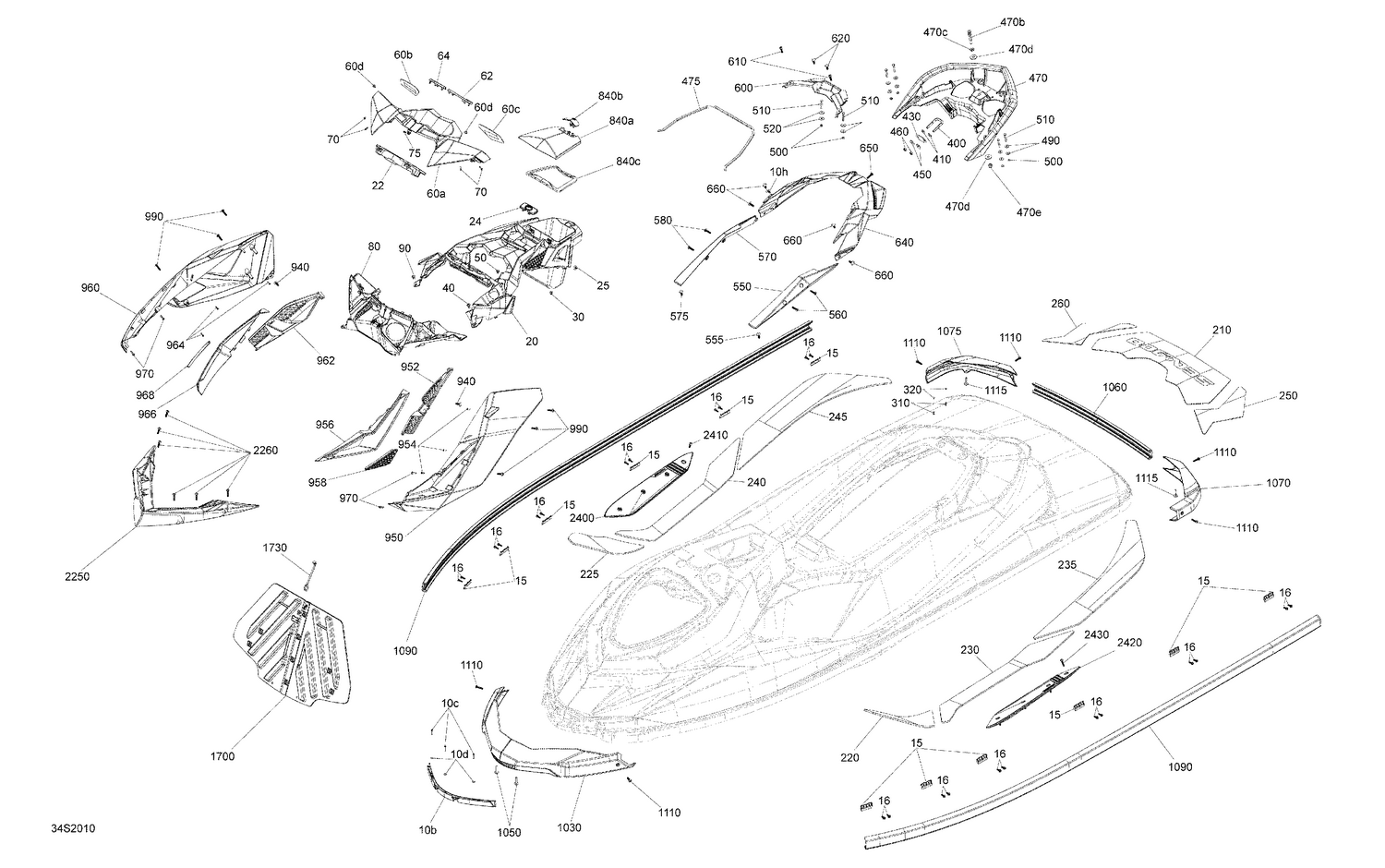

| Ref | Part Number | Description |
|---|
| 10b |
291003897 |
Deck Nose |
| 10c |
241142560 |
Hex. Flange Screw K40 X 25 |
| 10d |
234042600 |
Flat Washer 4 mm, Stainless |
| 10h |
293730011 |
Black, Dart |
| 15 |
291005313 |
Bumper Anchorage |
| 16 |
278002475 |
Torx Screw, Stainless |
| 20 |
291004654 |
Black, Console |
| 22 |
291004655 |
Deep Black, Display Adaptor |
| 24 |
291004718 |
Deep Black, Console Cap |
| 25 |
414644300 |
Black, Dart |
| 30 |
293830005 |
Rubber Bumper |
| 40 |
293150123 |
Pop Rivet 3/16" |
| 50 |
293150186 |
Pop Rivet 3/16 |
| 60a |
291004657 |
Deep Black, Gauge Bezel |
| 60b |
291003090 |
Mirror RH, With Double-Face Tape |
| 60c |
291003091 |
Mirror LH, With Double-Face Tape |
| 60d |
293830005 |
Rubber Bumper |
| 62 |
705012354 |
Dragon Red, Trim Gauge LH |
| 64 |
705012355 |
Dragon Red, Trim Gauge RH |
| 80 |
291004271 |
Deep Black, Mirror Support |
| 210 |
291003586 |
Platform Carpet |
| 220 |
291005364 |
Anti-Slip Mat Front LH |
| 225 |
291005365 |
Anti-Slip Mat Front RH |
| 230 |
291005362 |
Anti-Slip Mat Center LH |
| 235 |
291005358 |
Anti Slip Mat Rear LH |
| 240 |
291005363 |
Anti-Slip Mat Center RH |
| 245 |
291005359 |
Anti Slip Mat Rear RH |
| 250 |
291003593 |
Rear Carpet LH |
| 260 |
291003594 |
Rear Carpet RH |
| 310 |
293150016 |
Rivet 1/8" |
| 320 |
293000014 |
Black, Snap Cap |
| 400 |
292000933 |
U-Clamp |
| 410 |
293050001 |
Flat Washer M8.5 x 18 |
| 430 |
291001386 |
Black, Finition Plate |
| 450 |
234082600 |
Flat Washer 8 mm, Stainless |
| 460 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 470b |
291003877 |
Stud Seat |
| 470c |
232100600 |
Hex. Jam Nut M10 |
| 470d |
234002600 |
Flat Washer 10 mm, Stainless |
| 470e |
232501200 |
Elastic Stop Nut M10, Brass |
| 475 |
292002523 |
Gasket This part replaces 293250289. |
| 490 |
234062600 |
Flat Washer M6, Stainless |
| 500 |
232561200 |
Brass Elastic Stop Nut M6 |
| 510 |
207164060 |
Hex. Screw M6 X 40 |
| 520 |
250200022 |
Flat Washer M6.6 X 22 |
| 555 |
293730006 |
Black, Dart |
| 560 |
250001007 |
Screw Torx M6.81 X 30 |
| 575 |
293730006 |
Black, Dart |
| 580 |
250001007 |
Screw Torx M6.81 X 30 |
| 600 |
291003372 |
Deep Black, Vent Cover |
| 610 |
250001007 |
Screw Torx M6.81 X 30 |
| 620 |
293730006 |
Black, Dart |
| 640 |
291004365 |
Deep Black, Cosmetic Rear |
| 650 |
250001007 |
Screw Torx M6.81 X 30 |
| 660 |
293730006 |
Black, Dart |
| 840a |
291004579 |
Deep Black, Glove Box Door |
| 840b |
264000164 |
Black, Latch This part replaces 264000091. |
| 840c |
293250265 |
Urethane Seal |
| 952 |
291003348 |
Black, LH Side Grille |
| 954 |
250000287 |
Flange Torx Screw K40 X 16 |
| 962 |
291003349 |
Deep Black, RH Side Grille |
| 964 |
250000287 |
Flange Torx Screw K40 X 16 |
| 1030 |
291004277 |
Front Bumper This part replaces 291005401. |
| 1050 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 1060 |
291004451 |
Black, Side Bumper |
| 1070 |
291004278 |
Black, Corner Bumper |
| 1075 |
291004279 |
Black, Corner Bumper |
| 1090 |
291004451 |
Black, Side Bumper |
| 1110 |
250001007 |
Screw Torx M6.81 X 30 |
| 1115 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 1700 |
291005160 |
Panel, Divider Ass'y |
| 1730 |
269502111 |
Holding Strap |
| 2250 |
291004367 |
Deflector |
| 2260 |
250001007 |
Screw Torx M6.81 X 30 |
| 2400 |
291004317 |
Footrest |
| 2410 |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250001008. |
| 2420 |
291004319 |
Footrest |
