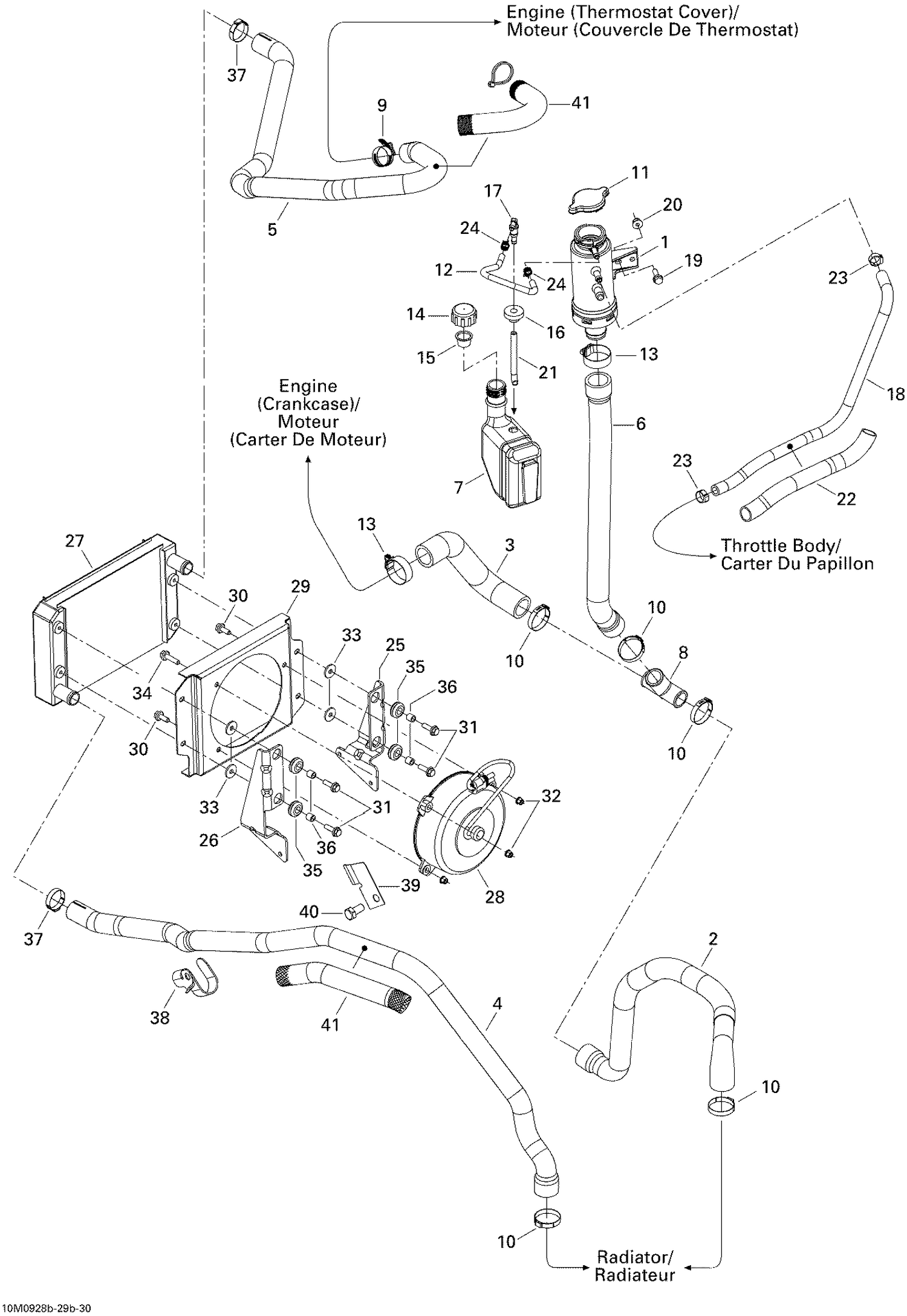

| Ref | Part Number | Description |
|---|
| 1 |
509000176 |
FILLER NECK ASS'Y - Call your local BRP dealership |
| 2 |
509000364 |
T-FITTING HOSE - Call your local BRP dealership |
| 3 |
509000365 |
PUMP INLET HOSE - Call your local BRP dealership |
| 4 |
509000481 |
EXIT HOSE - Call your local BRP dealership |
| 5 |
509000482 |
ENTRY HOSE - Call your local BRP dealership |
| 6 |
509000367 |
COOLANT TANK HOSE - Call your local BRP dealership |
| 7 |
709200099 |
COOLANT TANK - Call your local BRP dealership |
| 8 |
509000219 |
T-Fitting |
| 9 |
293650019 |
Tridon Gear Clamp |
| 10 |
509000045 |
Oetiker Gear Clamp 36.1MM |
| 11 |
509000187 |
Pressure Cap |
| 12 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 13 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 14 |
709200009 |
TANK CAP - Call your local BRP dealership |
| 15 |
709200205 |
PROTECTION CAP - Call your local BRP dealership |
| 16 |
709200285 |
Grommet This part replaces 570135100. |
| 17 |
414580600 |
Elbow Male Connector |
| 18 |
219704420 |
Was 509000407 Hose 8 mm |
| 19 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 20 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 21 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 22 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 23 |
293650140 |
Oetiker Clamp |
| 24 |
414554800 |
Spring Clamp |
| 25 |
509000483 |
RH SUPPORT - Call your local BRP dealership |
| 26 |
509000484 |
LH SUPPORT - Call your local BRP dealership |
| 27 |
509000488 |
Radiator |
| 28 |
709200173 |
FAN - Call your local BRP dealership |
| 29 |
509000487 |
FAN SUPPORT - Call your local BRP dealership |
| 30 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 31 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 32 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 33 |
224061201 |
Flat Washer |
| 34 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 35 |
709000582 |
Grommet This part replaces 293720053. |
| 36 |
293900105 |
Bushing This part replaces 293900045. |
| 37 |
293650099 |
Crimp Clamp |
| 38 |
509000494 |
SUPPORT - Call your local BRP dealership |
| 39 |
509000496 |
PROTECTOR - Call your local BRP dealership |
| 40 |
207302044 |
Hex. Screw M10 X 20, Scotch Grip |
