| Ref | Part Number | Description |
|---|
| 1 |
5030207 |
FITTING, GREASE |
| 2 |
5033836 |
LEAD (L:165mm) |
| 3 |
5035123 |
BRACKET, SWIVEL |
| 4 |
5035124 |
WASHER, SWIVEL TO CLAMP BRKT |
| 5 |
5032634 |
BUSHING |
| 6 |
5030852 |
BUSHING, STEERING |
| 7 |
5035125 |
BRACKET, STEERING |
| 8 |
5030409 |
SCREW |
| 9 |
5030456 |
WASHER |
| 10 |
5030477 |
SHIM |
| 11 |
5030548 |
SEAL |
| 12 |
5030572 |
CIRCLIP |
| 13 |
5036642 |
LEVER, TILT LOCK This part replaces 5035121. |
| 14 |
5035122 |
LEVER, TILT LOCK PORT |
| 15 |
5030843 |
BUSHING, TILT STOP ROD |
| 16 |
5030846 |
LINK, TILT LOCK LEVER |
| 17 |
5030847 |
BRACKET, TILT LOCK SPRING |
| 18 |
5030409 |
SCREW |
| 19 |
5030417 |
NUT |
| 22 |
5030597 |
SPRING |

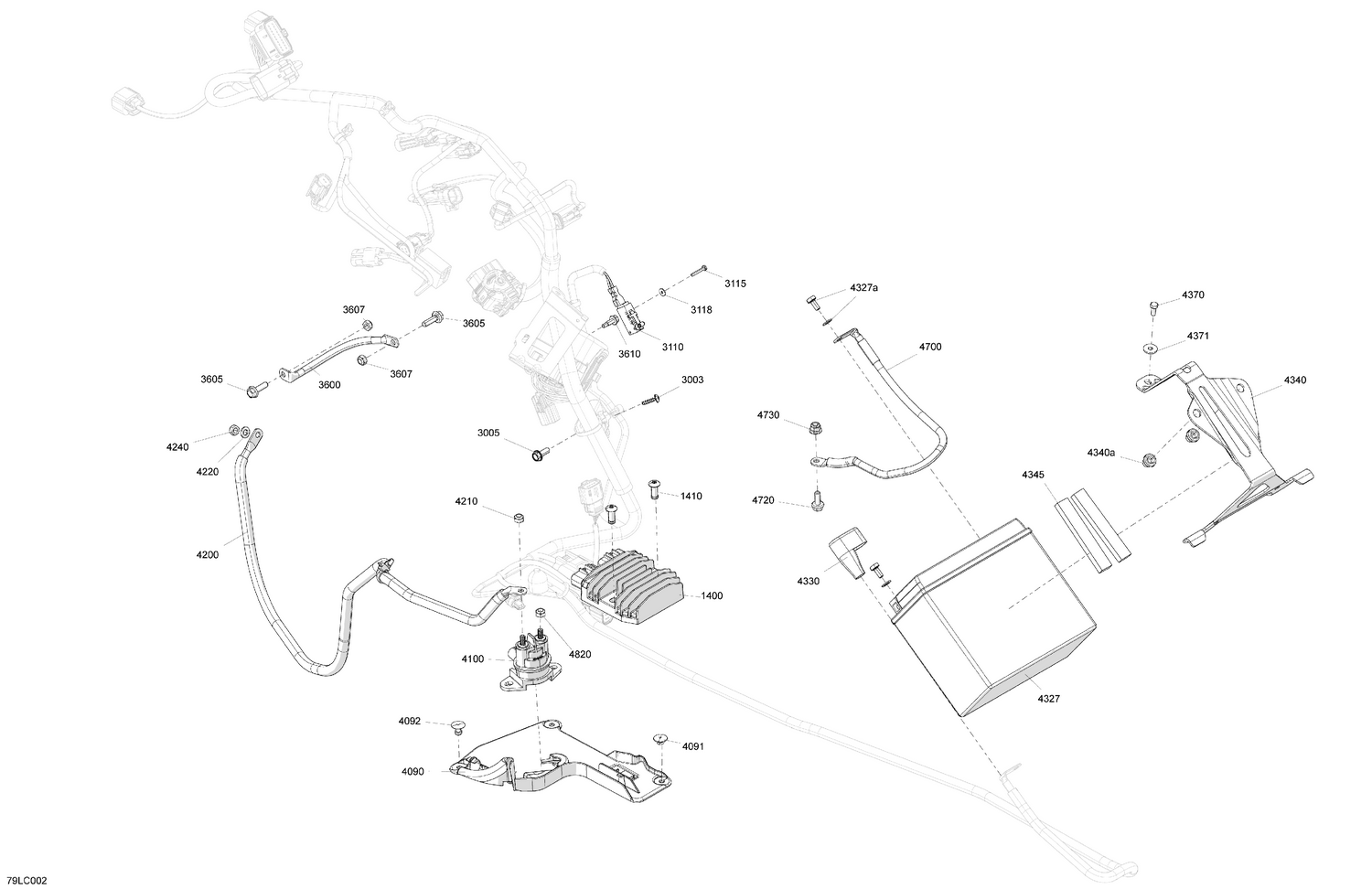

| 1400 |
710010539 |
Voltage Regulator This part replaces 710005569. |
| 1410 |
293150182 |
Monobolt Rivet 6.4 |
| 3003 |
250000742 |
Torx Screw M5 X 14 |
| 3005 |
250001062 |
Hex. Flanged Screw M6 X 16 |
| 3110 |
515177460 |
Switch Ass'y |
| 3115 |
207132044 |
Hex. Cap Screw M3 x 20 |
| 3118 |
234032600 |
Flat Washer M3, Stainless |
| 3600 |
515178338 |
Ground Wire |
| 3605 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 3607 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 3610 |
250000911 |
Hex. Flange Screw M5 X 16 |
| 4090 |
515178244 |
Support |
| 4091 |
293150103 |
Pop Rivet 3/16 |
| 4092 |
293150104 |
Pop Rivet 3/16 |
| 4100 |
278003012 |
Starter Relay |
| 4200 |
515178336 |
Battery Wire |
| 4210 |
232561434 |
Elastic Stop Nut M6 |
| 4220 |
234061410 |
Flat Washer 6 mm |
| 4240 |
232561434 |
Elastic Stop Nut M6 |
| 4327a |
250000282 |
Battery Bolt Kit |
| 4330 |
710001817 |
Protector Cap |
| 4340a |
293450275 |
Insert |
| 4345 |
517305157 |
Seal Joint |
| 4370 |
207151244 |
Hex. Screw M5 X 12 |
| 4371 |
391301600 |
Washer |
| 4700 |
515178155 |
Ground Wire |
| 4720 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 4730 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
