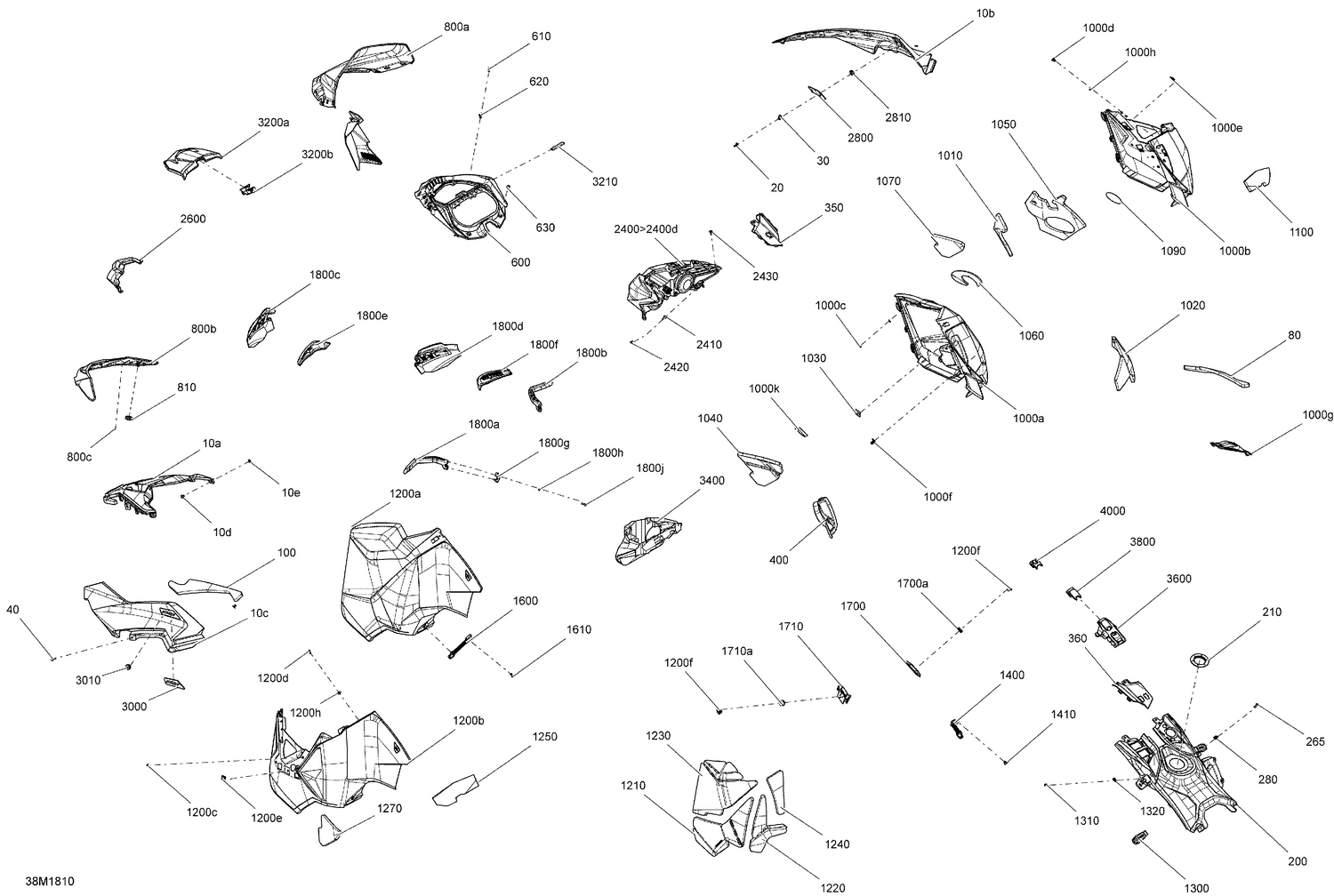

09- Hood Renegade 1200 4-TEC
Parts (66)
| Ref | Part Number | Description |
|---|---|---|
| 10d | 293150104 | Pop Rivet 3/16" |
| 10e | 517124300 | Washer |
| 20 | 250000528 | Torx Screw M5 X 20 |
| 30 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 40 | 250000587 | Torx Screw M5 X 26 |
| 80 | 517305090 | RH Rear Hood Foam |
| 100 | 517305091 | LH Rear Hood Foam |
| 210 | 517304518 | Console Nut |
| 265 | 250000705 | Torx Truss Screw M6 X 20 |
| 280 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 600 | 517305511 | Deep Black, Indicator Support |
| 610 | 250000528 | Torx Screw M5 X 20 |
| 620 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 630 | 250000587 | Torx Screw M5 X 26 |
| 800c | 732610072 | Push Nut |
| 810 | 517303756 | Grommet |
| 1000c | 250100158 | Push Nut |
| 1000d | 293150104 | Pop Rivet 3/16" |
| 1000e | 517305109 | Rivet Plate |
| 1000h | 517124300 | Washer |
| 1010 | 517305793 | RH Foam Central |
| 1020 | 517305801 | RH Foam Rear |
| 1030 | 517305451 | Heat Shield |
| 1040 | 517305790 | RH Foam Upper |
| 1050 | 517305792 | RH Foam Lower |
| 1060 | 517305795 | Foam |
| 1070 | 517305791 | Foam |
| 1090 | 517305796 | Rubber Sheet |
| 1100 | 517305794 | Foam |
| 1200b | 517304805 | Black, LH Flashing Panel |
| 1200c | 250100158 | Push Nut |
| 1200d | 293150104 | Pop Rivet 3/16" |
| 1200e | 517305109 | Rivet Plate |
| 1200f | 517305734 | Pin This part replaces 517305504. |
| 1200g | 517124300 | Washer |
| 1210 | 517305802 | Foam |
| 1220 | 517305797 | Foam |
| 1230 | 517305798 | Foam |
| 1240 | 517305803 | Foam |
| 1250 | 517305800 | Foam |
| 1270 | 517305799 | Foam |
| 1300 | 517305279 | Panel Latch |
| 1310 | 250000565 | Hexalob Screw M4 X 10 |
| 1320 | 250100156 | Weld Nut M4 |
| 1400 | 517304919 | RH Panel Latch |
| 1410 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 1600 | 517303808 | LH Panel Latch |
| 1610 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 1700a | 517305723 | Ring |
| 1710a | 517305723 | Ring |
| 2400a | 219400070 | Cap |
| 2400b | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 2400c | 219800282 | Holder Bracket |
| 2400d | 219800281 | Spring |
| 2400e | 415130194 | Harness |
| 2400f | 710002033 | Connector Holder |
| 2410 | 250000528 | Torx Screw M5 X 20 |
| 2420 | 250100035 | Jack Nut M5 |
| 2430 | 250000725 | Screw M4 X 16 |
| 2600 | 517305010 | Headlight Trim Cap |
| 3200a | 517304912 | Deep Black, Upper Storage Access Cover |
| 3200b | 517304917 | Cover Latch |
| 3210 | 517305157 | Seal Joint |
| 3400 | 517305095 | Deep Black, Trunk |
| 3600 | 517304970 | Deep Black, Console Support |
| 3800 | 517305180 | Deep Black, Support Console Cap |
