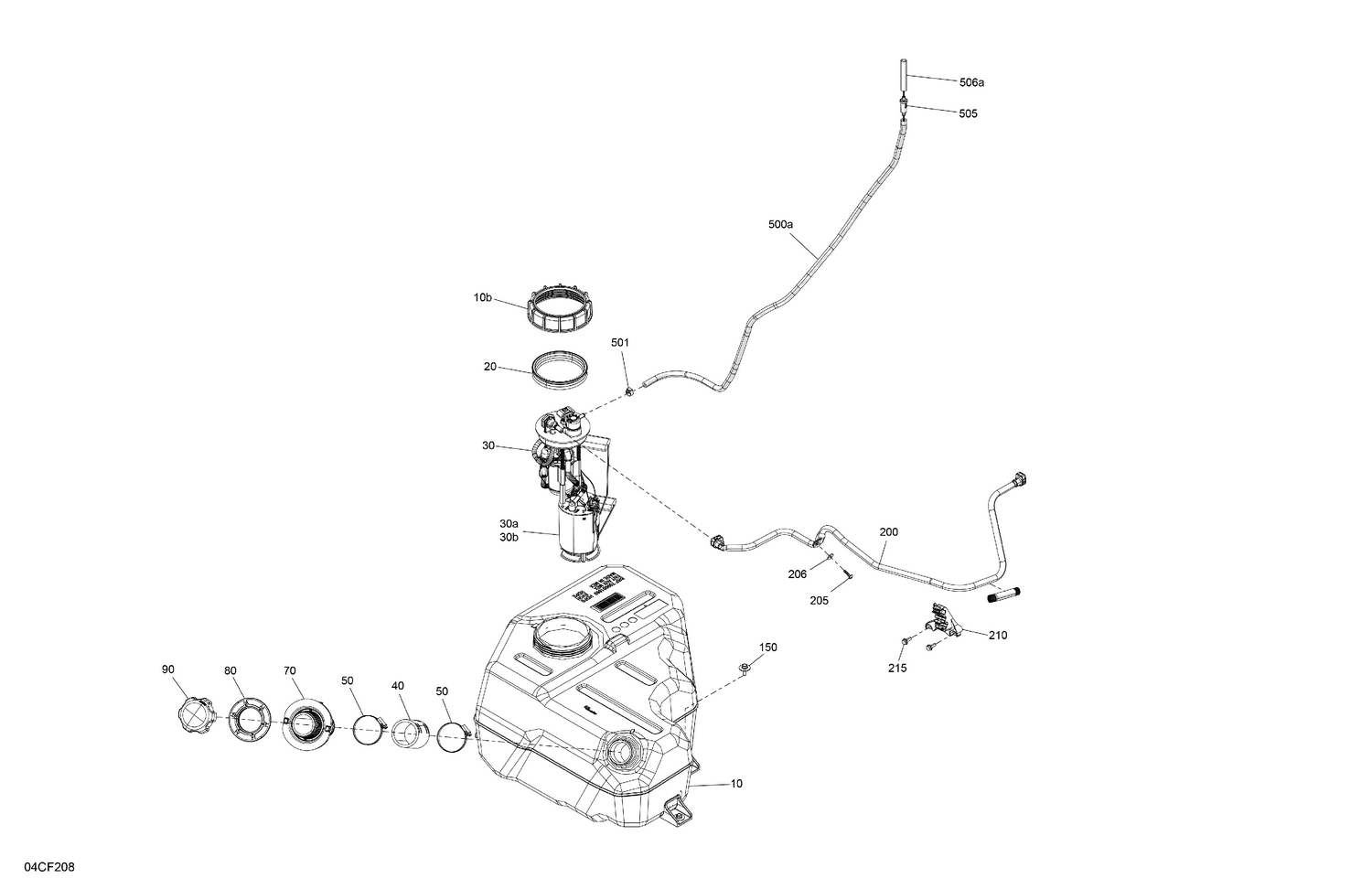

02- Engine - Fuel
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 250100062 | Special Nut M130 |
| 20 | 293250514 | Pump Gasket |
| 30a | 270600113 | Fuel Filter |
| 30b | 715900955 | Fuel Level Sensor |
| 40 | 709001697 | Filler Neck Hose |
| 50 | 293650371 | Gear Clamp |
| 70 | 709001670 | Filler Neck Ass'y |
| 80 | 709001472 | Round Slotted Nut |
| 90 | 709000868 | Fuel Cap |
| 150 | 250001299 | Hex Flange Screw Sems M6 X 20 |
| 200 | 709001398 | Formed Hose |
| 205 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 206 | 250200025 | Washer M5 |
| 210 | 709001519 | Base Support |
| 215 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 500a | 219704534 | Hose 6.35MM ID |
| 501 | 293650046 | Oetiker Clamp |
| 505 | 709001120 | Filter |
