| Ref | Part Number | Description |
|---|
| 1 |
0312693 |
DASH PANEL |
| 2 |
0312691 |
SCREW, Cash pannel |
| 3 |
0205870 |
DECAL, Dash panel |
| 4 |
0386545 |
IGNITION SWITCH & KEY ASSY This part replaces 0378238. |
| 8 |
KEY,Ignition |
Ref: 9 0306559 *SCREW, Ignition switch 0306559 |
| 10 |
0975257 |
SWITCH ASSEMBLLY |
| 12 |
0900696 |
WASHER |
| 15 |
0378321 |
INDICATING LIGHT, Ignition "on" |
| 18 |
0381626 |
LEAD ASSEMBLY, Ignition to choke switch |
| 21 |
0381629 |
INDICATING LIGHT, Temp |
| 24 |
0382779 |
CABLE ASSY.,Instrument |
| 31 |
0311472 |
CONNECTOR |
| 39 |
0385407 |
BATTERY TERMINAL KIT This part replaces 0277708. |
| 41 |
0385407 |
BATTERY TERMINAL KIT This part replaces 0277709. |
| 43 |
0382777 |
CABLE ASSY.,Motor |
| 49 |
0311471 |
CONNECTOR |
| 50 |
0312467 |
O RING |
| 55 |
0825886 |
TERMINAL This part replaces 0510541. |
| 0278934 |
0278934 |

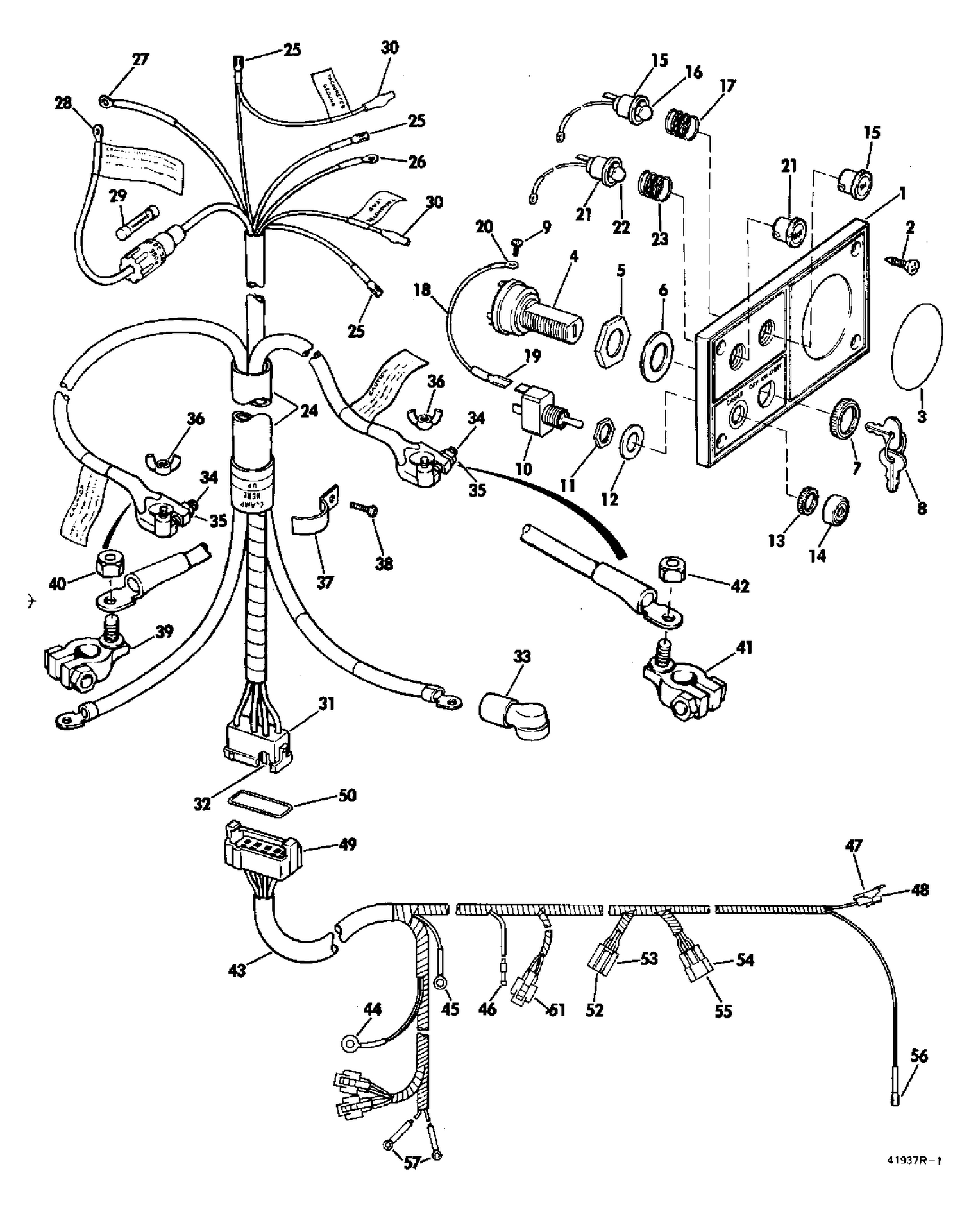

INSTRUMENTS & CABLE ASSY. |
