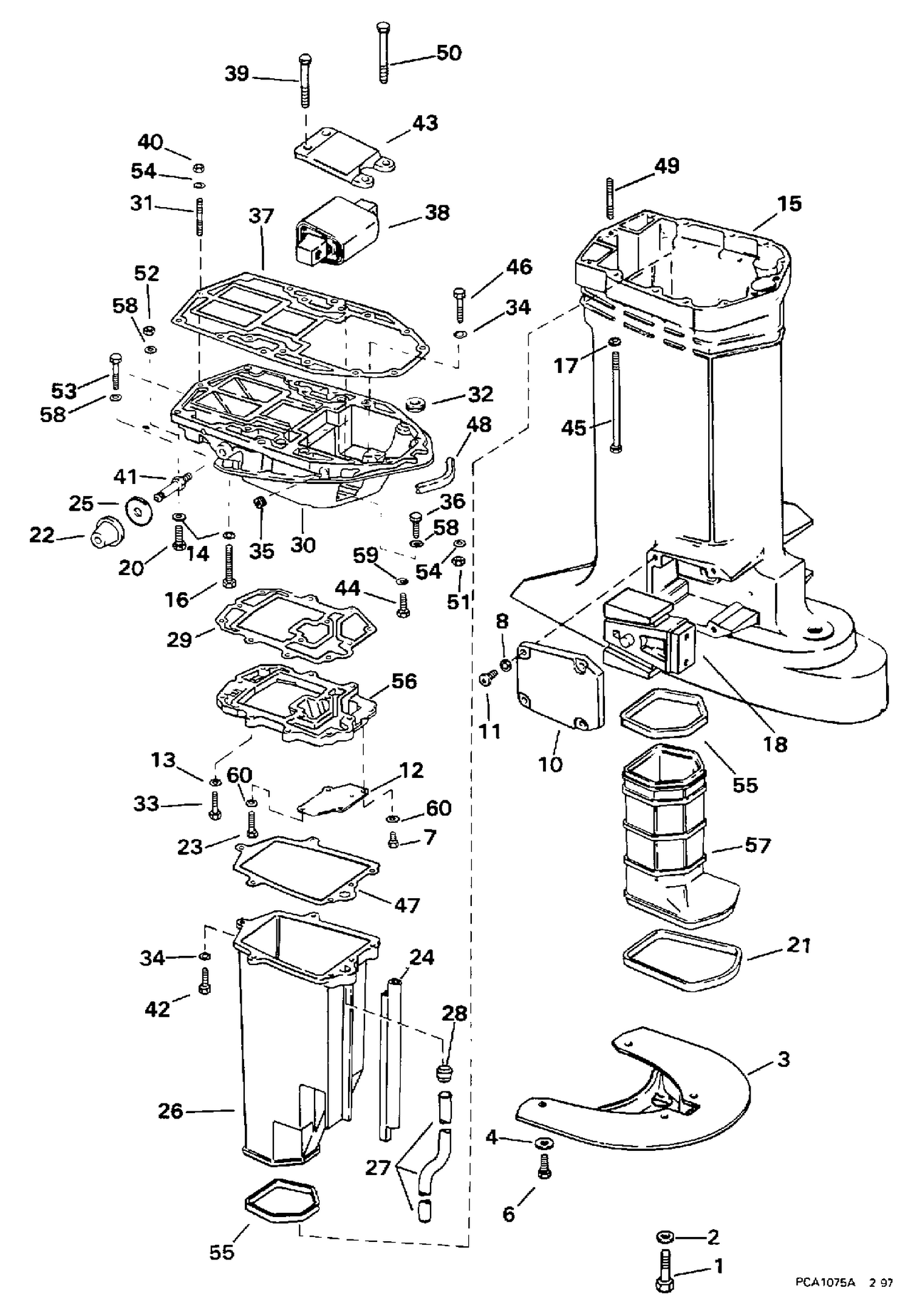

| Ref | Part Number | Description |
|---|
| 1 |
0910736 |
SCREW, Deflector |
| 3 |
0345776 |
DÉFLECTEUR DE PROJECTIONS This part replaces 0341359. |
| 6 |
0910741 |
SCREW, Cover plate |
| 10 |
0338741 |
COVER, Mount bracket lower |
| 11 |
0341013 |
SCREW, Cover |
| 12 |
0333565 |
COVER, Water plate |
| 15 |
0435433 |
EXHAUST HOUSING |
| 15 |
0435479 |
EXHAUST HOUSING |
| 16 |
0911042 |
SCREW, Adapter to cylinder |
| 18 |
0434629 |
MOUNT, Lower |
| 20 |
0305282 |
BOLT, Bowl & suction piece This part replaces 0301218. |
| 21 |
0320961 |
JOINT, boîtier d'engrenages vers carter intérieur |
| 22 |
0349557 |
MOUNT This part replaces 0328584. |
| 23 |
0333165 |
SCREW, Cover, long |
| 24 |
0334118 |
SEAL, Exhaust housing, front |
| 25 |
0349556 |
Washer This part replaces 0329749. |
| 26 |
0338597 |
EXHAUST HOUSING, Inner, upper |
| 27 |
0346897 |
TUBE WATER, Inlet This part replaces 0321016. |
| 27 |
0346898 |
TUBE WATER, Inlet This part replaces 0321015. |
| 28 |
0305145 |
GROMMET |
| 29 |
0343809 |
GASKET, Plate to adapter |
| 30 |
5001299 |
ADAPTER, Exhaust housing - V, U This part replaces 0436751. |
| 33 |
0312978 |
SCREEN, Ground plt to intmd hsg |
| 36 |
0341011 |
SCREW, Adapter to housing, outer |
| 37 |
0333879 |
GASKET, Adapter to powerhead |
| 38 |
0432017 |
RUBBER MOUNT Assembly |
| 41 |
0329743 |
STUD, Cover mount |
| 42 |
0341010 |
SCREW, Adapter to inner housing |
| 43 |
0330929 |
PLATE, Upper mount |
| 44 |
0306503 |
SCREW, Short |
| 45 |
0355037 |
SCREW, Exhaust housing to c/c This part replaces 0332128. |
| 46 |
0341010 |
SCREW, Adapter to inner housing |
| 47 |
0334113 |
GASKET, Inner exh hsg to water plate |
| 48 |
0333434 |
SEAL, Cover to adapter |
| 50 |
0330931 |
VIS, support supérieur |
| 52 |
0328742 |
NUT |
| 53 |
0341009 |
SCREW, Adapter to outer housing |
| 55 |
0320936 |
JOINT, boîtier échappement, inférieur |
| 56 |
0347251 |
WATER PLATE This part replaces 0338668. |
| 57 |
0327796 |
EXHASUT HSG,Inner lower |
| 57 |
0338664 |
BOÎTIER D'ÉCHAPPEMENT, intérieur, inférieur |
| 58 |
0329241 |
RONDELLE |
