Home / BRP / 2019 / SKI-DOO - EXPEDITION Series / 004 - EXPEDITION LE-SE 600HO E-TEC, 2019 000SGKA00 000SGKE00 000SGKF00 / 08- Rear Suspension - Upper Section - SE

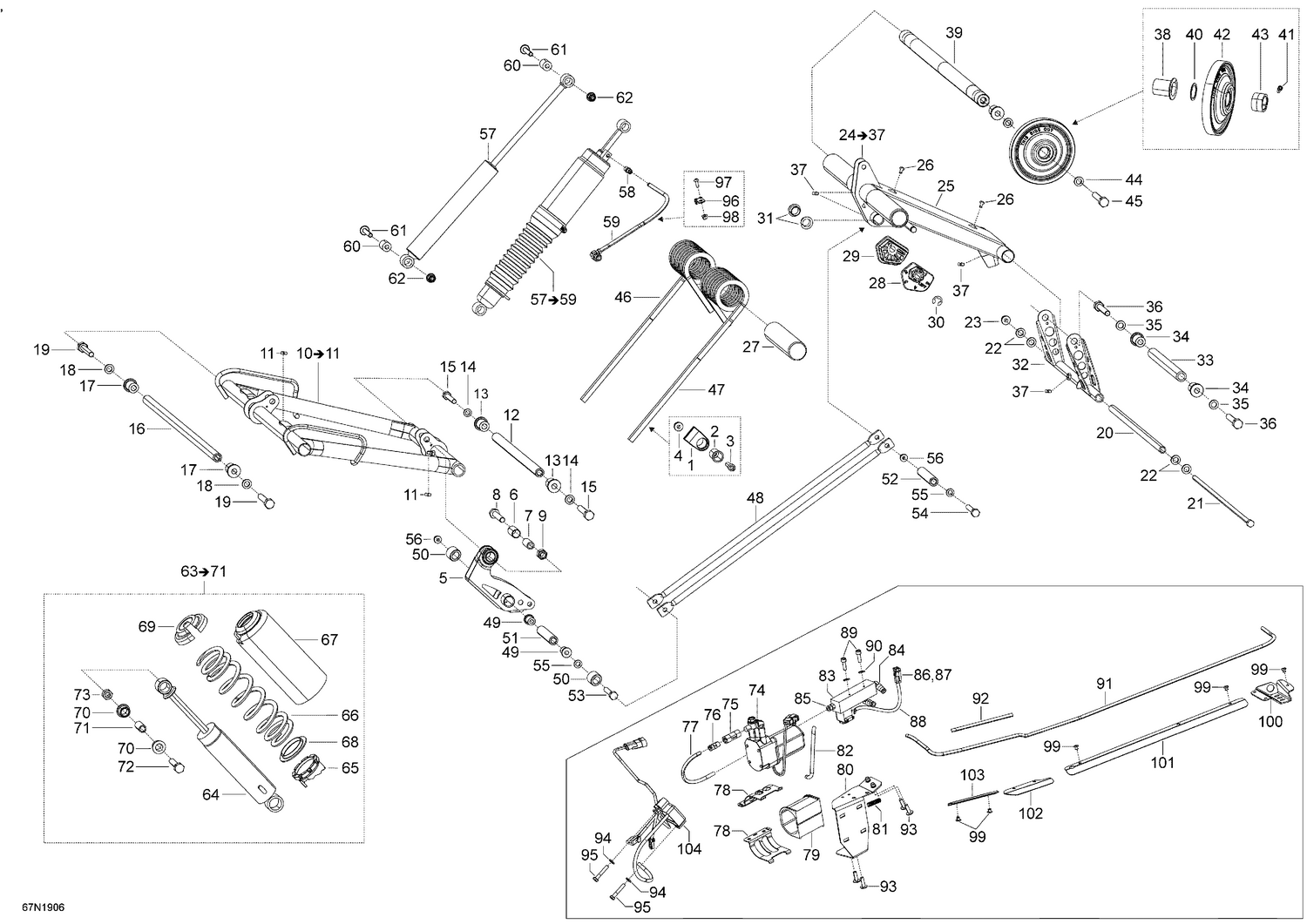

08- Rear Suspension - Upper Section - SE

08- Rear Suspension - Upper Section - SE

Parts (92)

RefPart NumberDescription
1 861805547 Spring Support Kit This part replaces 503191183.
2 861805547 Spring Support Kit This part replaces 503190754.
3 205082544 Socket Head Screw M8 X 25
4 233281414 Hex. Flange Elastic Nut M8
5 503192211 Rocker
6 503193037 Bushing
7 503189282 Bushing
8 207005044 Hex. Screw M10 X 1.5 X 50
9 233601416 Elastic Locking Nut M10 X 1.5
10 503193274 Front Arm Ass'y
12 503191390 Lower Shaft
13 503189324 Bushing
14 503192496 Washer
15 250000605 Hex. Screw S.Grip M10 X 55
16 503191391 Upper Shaft
17 503189324 Bushing
18 503189564 Washer
19 250000605 Hex. Screw S.Grip M10 X 55
20 503191396 Axle Pivot
21 503195156 Bolt 369MM This part replaces 503191397.
22 503189157 Washer
23 233281414 Hex. Flange Elastic Nut M8
25 503195402 Rear Arm Ass'y This part replaces 503191398.
26 414644300 Black, Dart
27 503191740 Plastic Bushing
28 503191565 LH Cam Adjuster
29 503191566 RH Cam Adjuster
30 293370013 E-Circlip
31 503191555 Swivel Bushing
33 503192330 Lower Shaft
34 503191640 Cushion
35 503192491 Washer
36 205523554 Socket Head Screw M12 X 35
37 408200700 Grease Fitting
38 503191451 Cushion
39 503191405 Upper Shaft
40 503190328 Washer
41 206260844 Socket Set Screw M6 X 8
42 503190803 Wheel 165
43 503194366 Retaining Ring
44 503192491 Washer
45 250000484 Socket Screw M12 X 35
46 503192377 Black RH Square Spring
47 503192378 Black LH Square Spring
48 503193026 ROD_LINK - Call your local BRP dealership
49 503191555 Swivel Bushing
50 503190114 Spacer
51 503190113 Bar Axle (Short)
52 503190643 Axle Bar (Long)
53 230083044 Hex. Screw M8 X 130
54 207089044 Hex. Screw M8 X 90
55 503189157 Washer
56 233281414 Hex. Flange Elastic Nut M8
58 503191939 Male Pneumatic Connector
59 503192649 Pneumatic Hose Ass'y
60 414936000 Bushing
61 207684044 Hex. Flange Screw M8 X 40
62 233281414 Hex. Flange Elastic Nut M8
64 503192266 Center Shock
65 505073625 Adjustment Cam
66 503191880 Black, Spring 242MM
67 503193663 Protector
68 503191872 Spring Guide
69 706200881 Spring Stopper
70 503189117 Urethane Bushing
71 503189282 Bushing
72 207005044 Hex. Screw M10 X 1.5 X 50
73 233601416 Elastic Locking Nut M10 X 1.5
74 706001349 Compressor
75 706000940 Check Valve
76 706000869 Connector
77 219704415 Hose 4.32Mm 3000Mm Long
78 503193103 Compressor Bracket
79 706000631 Compressor Isolator
80 503193484 SUPPORT - Call your local BRP dealership
81 219704425 Tubing 6 Mm 3000Mm Long
82 219704425 Tubing 6 Mm 3000Mm Long
83 503193009 Air manifold Ass'y
89 205562044 Socket Head Screw M6 X 20, Scotch Grip
90 234061410 Flat Washer 6 mm
91 503193034 Tube
92 219704425 Tubing 6 Mm 3000Mm Long
93 250000722 Torx Screw M6 X 20
94 234061410 Flat Washer 6 mm
95 207063544 Hex. Flange Screw M6 X 35
96 503193393 CLAMP - Call your local BRP dealership
97 235551454 Screw-Torx Button Head M5 X 14
98 233251434 Flange Elastic Nut M5
99 293150102 Rivet 3/16"
100 503193004 BRACKET - Call your local BRP dealership
101 503193006 Hose Protector
102 503193007 Hose Protector
