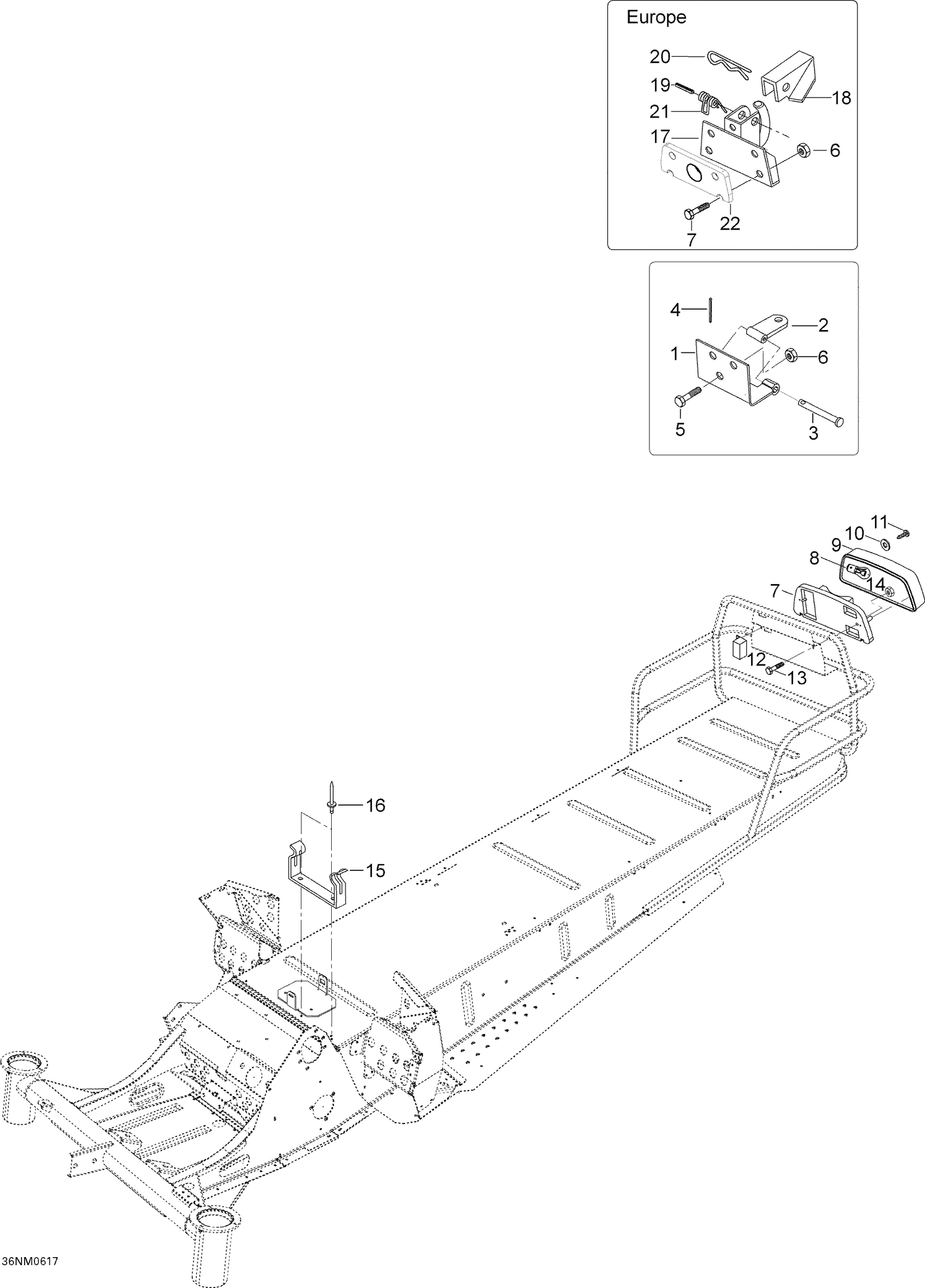

09- Frame and Components
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 510004061 | LIGHT HOUSING - Call your local BRP dealership |
| 8 | 520000758 | Bulb This part replaces 410504100. |
| 9 | 414513700 | Lens |
| 10 | 414516400 | Washer - Call your local BRP dealership |
| 11 | 209632540 | Phillips Tapping Screw M3.9 X 25 |
| 12 | 605448415 | PROTECTION PLATE - Call your local BRP dealership |
| 13 | 207063044 | Hex. Screw M6 X 30 |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 15 | M5346204 | Support |
| 16 | 36108 | Rivet This part replaces M36083. |
