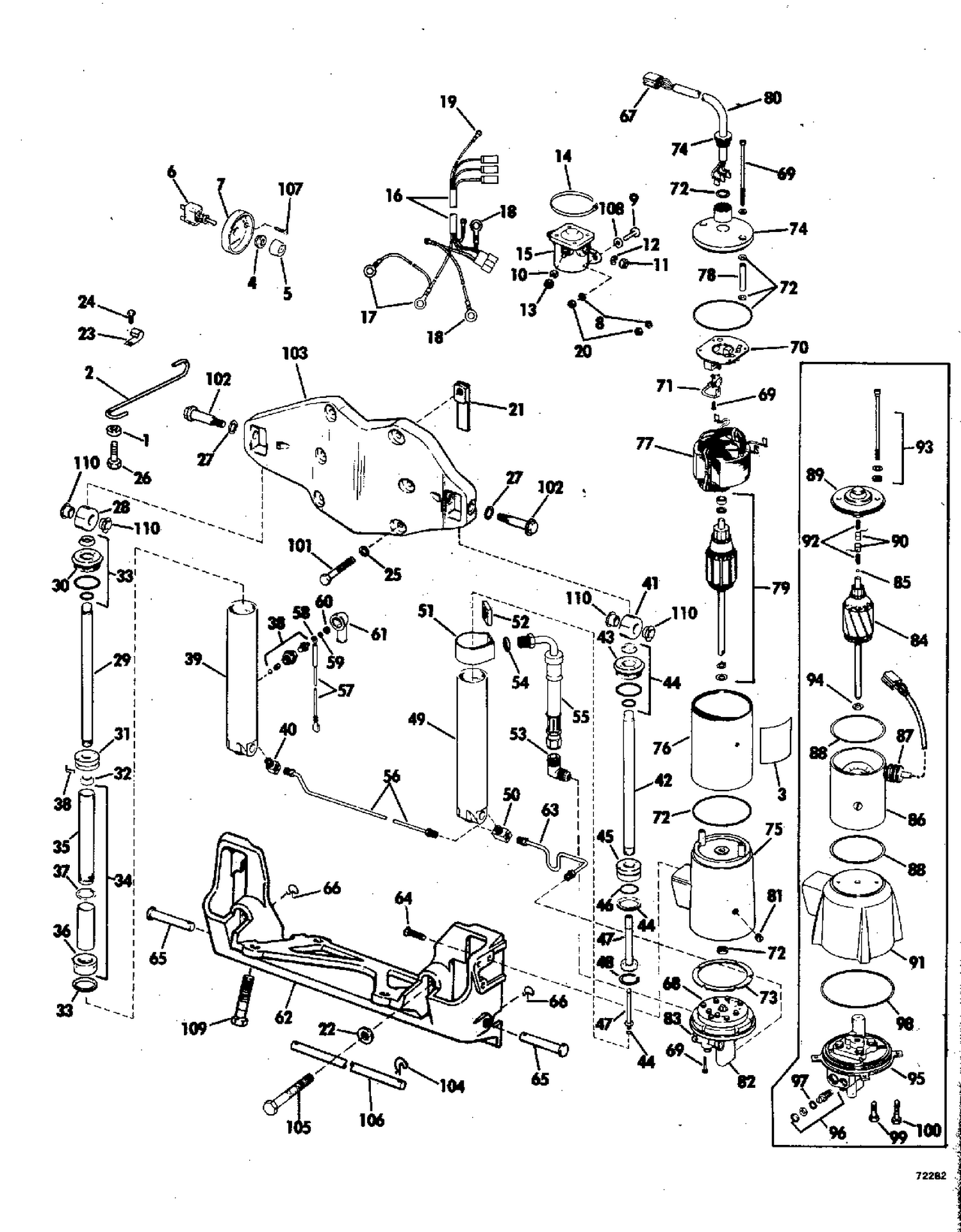

| Ref | Part Number | Description |
|---|
| 1 |
0122401 |
SPACER, Release rod |
| 2 |
0122402 |
RELEASE ROD |
| 3 |
0122548 |
DECAL, Pump unit, johnson |
| 3 |
0122549 |
DECAL PUMP UNIT, Evinrude |
| 9 |
0904871 |
SCREW, Solenoid mtg |
| 11 |
0310755 |
LOCKWASHER, Solenoid term |
| 14 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 0315633. |
| 16 |
0172870 |
CABLE ASSY |
| 21 |
0172679 |
LOCKSTRAP ASSY |
| 22 |
0306428 |
FLAT WASHER, Trans. bolt |
| 26 |
0904441 |
SCREW |
| 27 |
0322624 |
WASHER, Lag screw This part replaces 0313169. |
| 33 |
0174520 |
O-RING KIT This part replaces 0172575. |
| 44 |
0174520 |
O-RING KIT This part replaces 0172575. |
| 64 |
0341013 |
SCREW, Cover This part replaces 0908668. |
| 67 |
0122619 |
CONNECTOR |
| 68 |
0172577 |
PUMP ASSY |
| 69 |
0172849 |
BOLT KIT |
| 70 |
0172579 |
BRUSH HOLDER ASSY |
| 71 |
0172580 |
CIRCUIT BREAKER ASSEMBLY |
| 72 |
0172717 |
GASKET & "O" RING KIT |
| 73 |
0122748 |
GASKET, Motor reservoir |
| 74 |
0172845 |
END CAP & BEARING ASSY. |
| 75 |
0172848 |
RESERVOIR |
| 76 |
0122620 |
MOTOR SHELL |
| 77 |
0172576 |
FIELD ASSY |
| 78 |
0122656 |
SPACER |
| 79 |
0172716 |
ARMATURE ASSY |
| 80 |
0172718 |
CABLE ASSY |
| 81 |
0172846 |
PLUG KIT |
| 82 |
0172768 |
CHECK VALVE & "O" RING ASSEMBLY |
| 83 |
0172767 |
RELEASE VALVE PKG |
| 87 |
0122619 |
CONNECTOR This part replaces 0122789. |
| 101 |
0552898 |
SCR,Grc to hsg,short |
| 102 |
0122680 |
PIOVT SCREW,Lift bracket |
| 103 |
0122612 |
LIFT BRACKET |
| 105 |
0363012 |
SCREW, Bracket mounting This part replaces 0313327. |
| 106 |
0319809 |
THRUST ROD |
| 0172835 |
0172835 |
HYDRAULIC LIFT ASSY |
| 0172859 |
0172859 |
POWER TILT & TRIM ASSY |
| 0172871 |
0172871 |
SOLENOID & CABLE ASSY |
