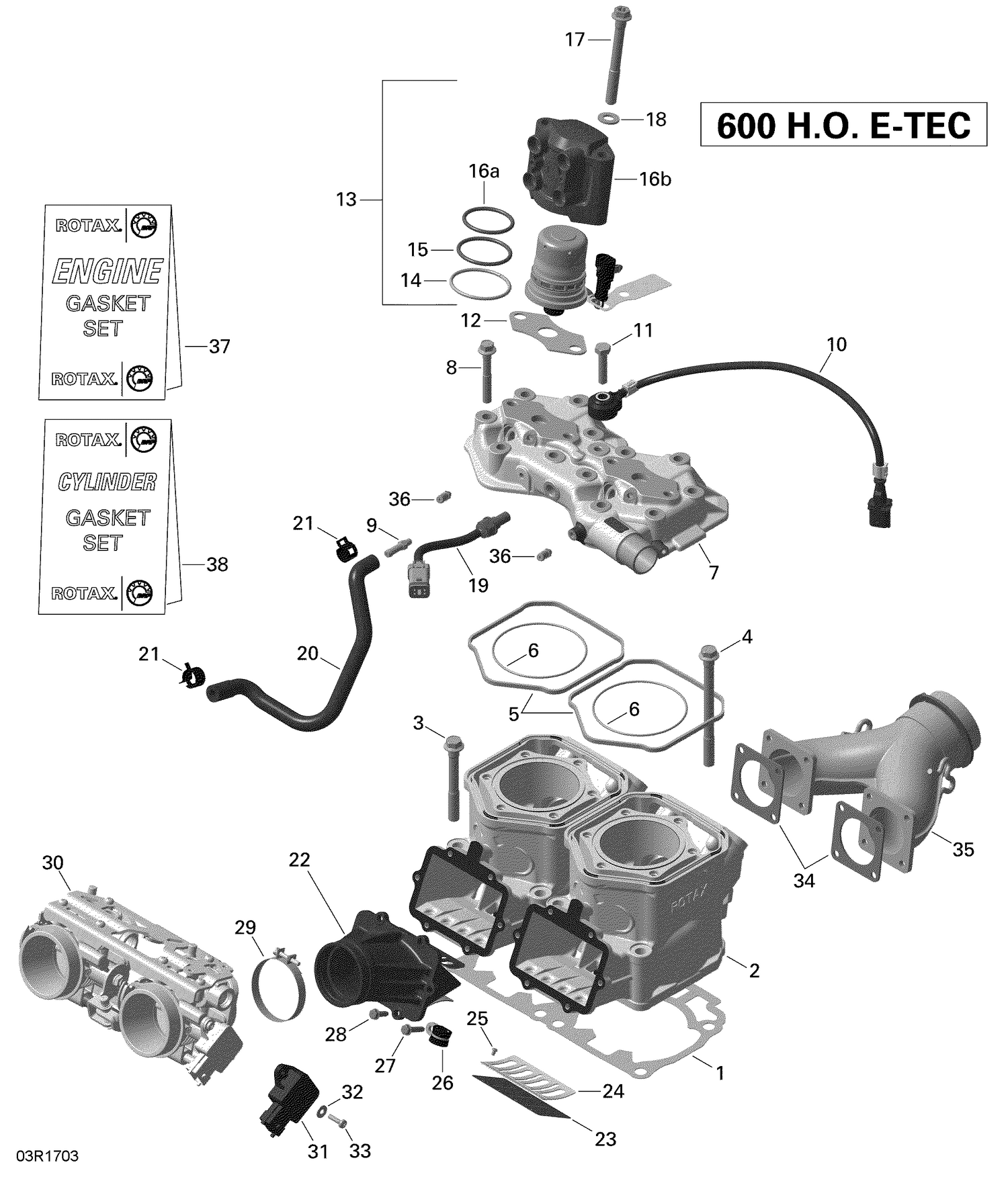

01- Cylinder and Injection System - 600HO E-TEC
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420431160 | Gasket 0.5 mm |
| 1 | 420431161 | Gasket 0.6 mm |
| 1 | 420431162 | Gasket 0.7 mm |
| 1 | 420431163 | Double Gasket 0.8 mm |
| 2 | 420623263 | Cylinder |
| 3 | 420640524 | Hex. Collar Screw |
| 4 | 420640534 | Hex. Collar Screw |
| 5 | 420931590 | Rubber Ring |
| 6 | 293300026 | O-Ring |
| 7 | 420623299 | Head Cylinder Cover |
| 8 | 420941627 | Hex. Screw M8 X 56.5 |
| 9 | 420924724 | Hose Nipple |
| 10 | 270000484 | Noise Sensor |
| 11 | 207083544 | Hex. Screw M8 X 35 |
| 12 | 420430930 | Gasket |
| 14 | 415129497 | Crush Ring |
| 15 | 415129498 | O-Ring |
| 16a | 415129499 | O-Ring |
| 16b | 415129942 | Fuel Injector Cover |
| 17 | 420441187 | Torx Flange Screw M10 X 90 -SW 13/T50 |
| 18 | 420927411 | Flat Washer M10 This part replaces 420927410. |
| 19 | 420664509 | Temperature Sensor This part replaces 515177813. |
| 20 | 420460867 | Molded Hose |
| 21 | 420853511 | Clamp |
| 23 | 420924680 | Reed Pedal |
| 24 | 420924695 | Reed Pedal Stop |
| 25 | 420941215 | Phillips Screw M3 X 5 |
| 26 | 420851250 | Clamp |
| 27 | 420841550 | Tapping Screw M5 X 22 |
| 28 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 29 | 420851065 | Clamp |
| 30 | 420889201 | Throttle Body |
| 31 | 420866120 | Position Sensor |
| 32 | 234041600 | Flat Washer 4 mm, Stainless |
| 33 | 208641660 | Phillips Screw M4 X 16 |
| 34 | 420850552 | Gasket |
| 35 | 420673421 | Exhaust Manifold This part replaces 420673420. |
| 36 | 420924724 | Hose Nipple |
| 37 | 420889924 | Gasket Set, Engine |
