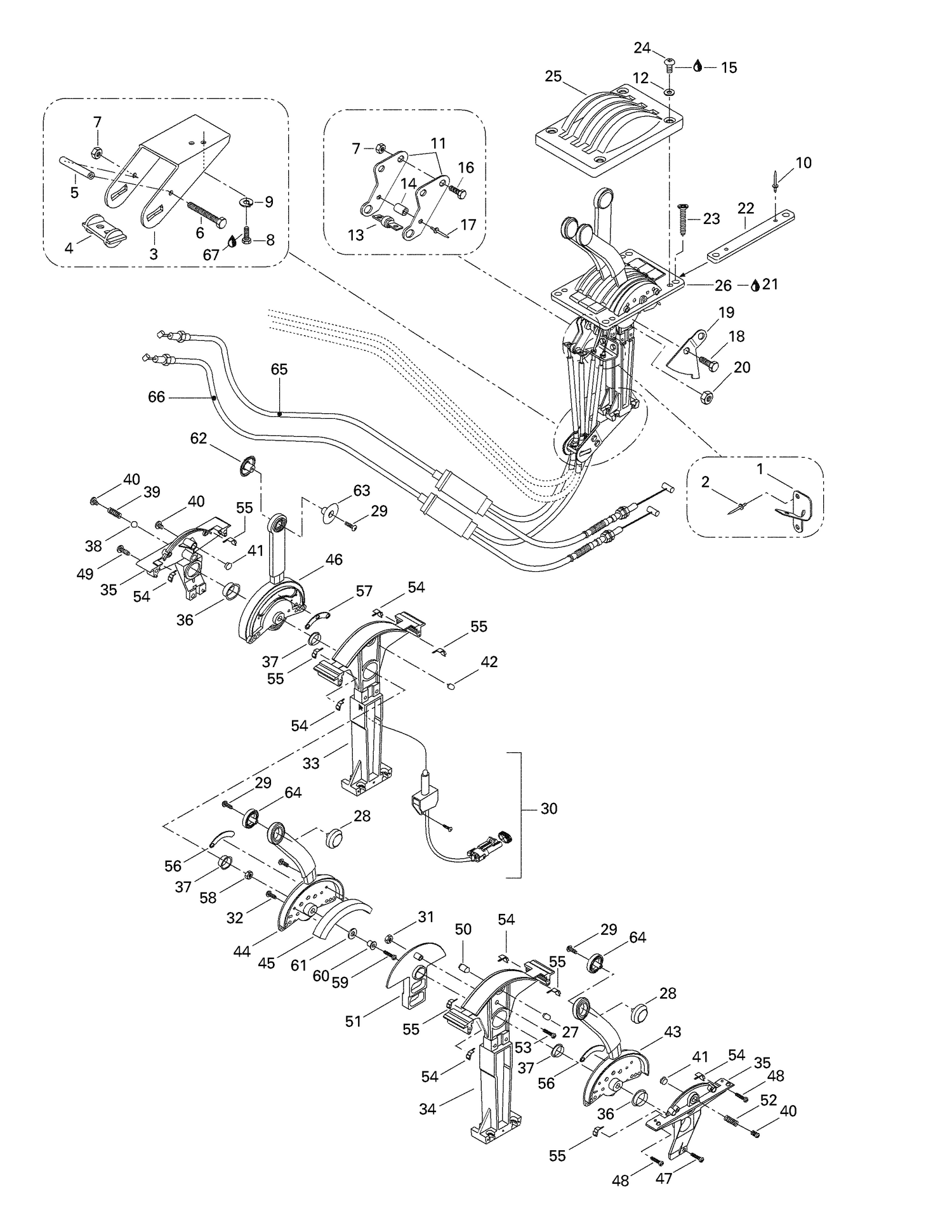

| Ref | Part Number | Description |
|---|
| 1 |
277000504 |
CABLE SUPPORT - Call your local BRP dealership |
| 2 |
293150026 |
RIVET_POP 1/8 - Call your local BRP dealership |
| 3 |
277000452 |
SUPPORT - Call your local BRP dealership |
| 4 |
277000451 |
PIVOT BRACKET - Call your local BRP dealership |
| 5 |
277000453 |
SPACER - Call your local BRP dealership |
| 6 |
210100010 |
Screw M6 x 80 |
| 7 |
232561600 |
Hex. Elastic Stop Nut M6 This part replaces 212000001. |
| 8 |
210000011 |
Hex. Screw M6 x 12 |
| 9 |
234161601 |
Lock Washer Helical M6 This part replaces 217361500. |
| 10 |
293150013 |
Pop Rivet 3/16" |
| 11 |
277000578 |
LINK - REVERSE - Call your local BRP dealership |
| 12 |
234040600 |
Flat Washer 4 mm This part replaces 213200010. |
| 13 |
277000450 |
PIVOT BRACKET - Call your local BRP dealership |
| 14 |
277000449 |
SPACER - Call your local BRP dealership |
| 15 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 16 |
207161660 |
Hex. Screw M6 X 16 This part replaces 215061660. |
| 17 |
293150023 |
RIVET_POP 1/8 X ,625 - Call your local BRP dealership |
| 18 |
215051660 |
SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership |
| 19 |
204390045 |
THROTTLE LINK - Call your local BRP dealership |
| 20 |
232551600 |
Hex. Elastic Nut M5 This part replaces 212000004. |
| 21 |
293550010 |
Synthetic Grease, 400 G |
| 22 |
293450061 |
SHIFTER INSERT - Call your local BRP dealership |
| 23 |
216153060 |
SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership |
| 24 |
208641060 |
Phillips Screw M4 X 10 This part replaces 212200005. |
| 25 |
277000505 |
Control Cover |
| 27 |
277000708 |
Throttle Lever Pin |
| 28 |
277000415 |
HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership |
| 29 |
277000419 |
SCREW M3.5 X 25 - Call your local BRP dealership |
| 30 |
278001195 |
NEUTRAL SWITCH ASS'Y - Call your local BRP dealership |
| 31 |
232551600 |
Hex. Elastic Nut M5 This part replaces 212000004. |
| 32 |
277000411 |
Screw M4.2 x 19 |
| 33 |
277000394 |
LH Frame |
| 34 |
277000395 |
RH Frame |
| 35 |
277000703 |
Half-Case |
| 36 |
277000397 |
BUSHING - Call your local BRP dealership |
| 37 |
277000398 |
BUSHING - Call your local BRP dealership |
| 38 |
277000399 |
BALL - Call your local BRP dealership |
| 39 |
277000400 |
SPRING - Call your local BRP dealership |
| 40 |
277000402 |
CAP SCREW - Call your local BRP dealership |
| 41 |
277000403 |
FRICTION INSERT - Call your local BRP dealership |
| 42 |
277000704 |
BLOCKING PIVOT - Call your local BRP dealership |
| 43 |
277000655 |
THROTTLE LEVER - Call your local BRP dealership This part replaces 277000413. |
| 44 |
277000409 |
LH THROTTLE LEVER - Call your local BRP dealership |
| 45 |
277000410 |
Guide Block |
| 46 |
277000414 |
SHIFT LEVER - Call your local BRP dealership |
| 47 |
277000420 |
SCREW M5 X 60 - Call your local BRP dealership |
| 48 |
277000421 |
Screw M5 X 20 |
| 49 |
277000422 |
Screw M5 X 70 |
| 50 |
277000705 |
THROTTLE LEVER PIN - Call your local BRP dealership |
| 51 |
277000706 |
SPACER FRAME - Call your local BRP dealership |
| 52 |
277000401 |
SPRING - Call your local BRP dealership |
| 53 |
277000412 |
Screw M5 X 25 |
| 54 |
277000423 |
RH Water Seal |
| 55 |
277000424 |
LH Water Seal |
| 56 |
277000707 |
SPACER - Call your local BRP dealership |
| 57 |
277000408 |
Shift Lever Spacer |
| 58 |
277000425 |
NUT M6 - Call your local BRP dealership |
| 59 |
277000426 |
Screw M6 x 35 |
| 60 |
277000427 |
Bushing |
| 61 |
277000428 |
Washer |
| 62 |
277000417 |
HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership |
| 63 |
277000418 |
HALF-SHIFT HANDLE - Call your local BRP dealership |
| 64 |
277000416 |
HALF-THROTTLE HANDLE - Call your local BRP dealership |
| 65 |
204390027 |
Throttle Cable R.H |
| 66 |
204390028 |
Throttle Cable L.H |
