Home / BRP / 2013 / TUNDRA / TUNDRA LT 600 ACE (4-TEMPS) XP, 2013 000GHDA00 000GHDB00 / 09- Hood, Windshield And Console

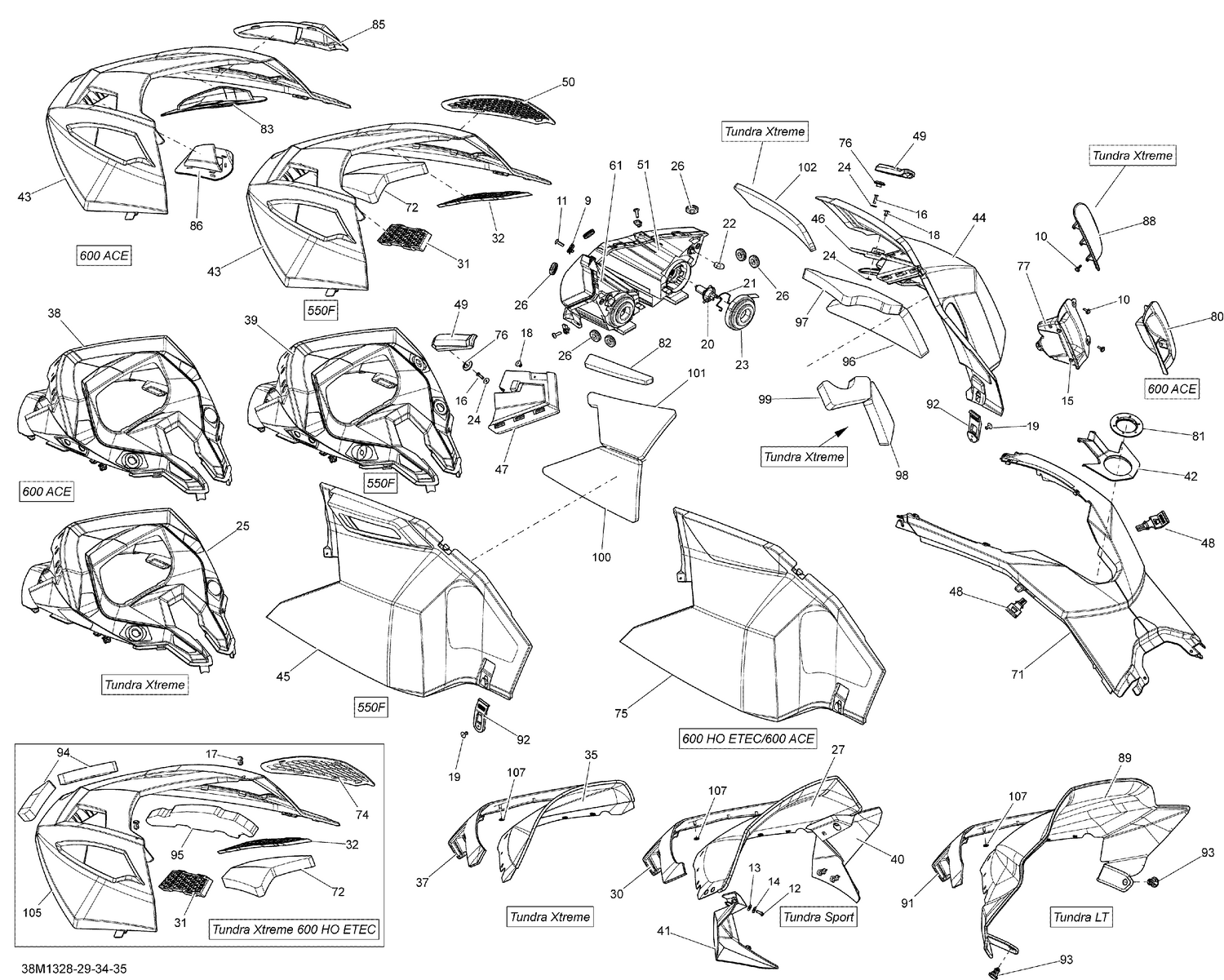

09- Hood, Windshield And Console

09- Hood, Windshield And Console

Parts (68)

RefPart NumberDescription
9 250100198 Panel Nut M6 X 1.0 This part replaces 250100113.
10 250000725 Screw M4 X 16 This part replaces 250000113.
11 250000722 Torx Screw M6 X 20 This part replaces 250000128.
12 250000720 Torx Screw K50 X 16 This part replaces 250000146.
13 250200024 Rubber Washer 5 mm
14 250200025 Washer M5
15 XXX Not Available As Spare Parts
16 293150014 Pop Rivet 3/16"
17 XXX Not Available As Spare Parts
18 293150104 Pop Rivet 3/16"
19 293150108 Pop Rivet 3/16” This part replaces 293150108.
20 515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )
21 515176493 BULB HOLDER - Call your local BRP dealership
22 515176498 Cap
23 219800280 Rubber Cap Protector This part replaces 515176499.
24 517124300 Washer
25 XXX Not Available As Spare Parts
26 517303756 Grommet
27 XXX Not Available As Spare Parts
30 XXX Not Available As Spare Parts
31 XXX Not Available As Spare Parts
32 XXX Not Available As Spare Parts
35 XXX Not Available As Spare Parts
37 XXX Not Available As Spare Parts
38 517303972 Indicator Support
39 XXX Not Available As Spare Parts
40 XXX Not Available As Spare Parts
41 XXX Not Available As Spare Parts
42 517304027 Deep Black, Cap Console
43 517304070 HOOD B-190 - Call your local BRP dealership
44 517304071 PANEL_BODY RH B-190 - Call your local BRP dealership
44 517304617 Black RH Panel
45 XXX Not Available As Spare Parts
46 517304090 RH Insert
47 517304092 LH Panel Insert
48 517304093 Center Panel Latch
49 517305186 Front Latch Panel
50 XXX Not Available As Spare Parts
51 517304194 RH Headlamp Ass'y
61 517304195 LH Headlamp Ass'y
71 517303741 Black Console
71 517304206 CONSOLE B-190 - Call your local BRP dealership
72 517304877 Foam Hood
74 XXX Not Available As Spare Parts
75 517304307 PANEL_BODY LH B-190 - Call your local BRP dealership
76 517304320 Anchor Link
77 XXX Not Available As Spare Parts
80 517304500 Black, RH Console
81 517304518 Console Nut
82 XXX Not Available As Spare Parts
83 517304567 RH Hood Grille
85 517304569 Air Inlet
86 517304694 LH Hood Grille
88 XXX Not Available As Spare Parts
89 517304964 Windshield (410)
91 517303959 LOW WINDSHIELD SUPPORT - Call your local BRP dealership
92 517304999 Rear Panel Latch
93 517304744 Button
94 XXX Not Available As Spare Parts
95 XXX Not Available As Spare Parts
96 517304870 Foam
97 517304871 Foam
98 XXX Not Available As Spare Parts
99 XXX Not Available As Spare Parts
100 517304874 Foam
101 517304875 Foam
102 XXX Not Available As Spare Parts
105 517305273 HOOD B-160 - Call your local BRP dealership
