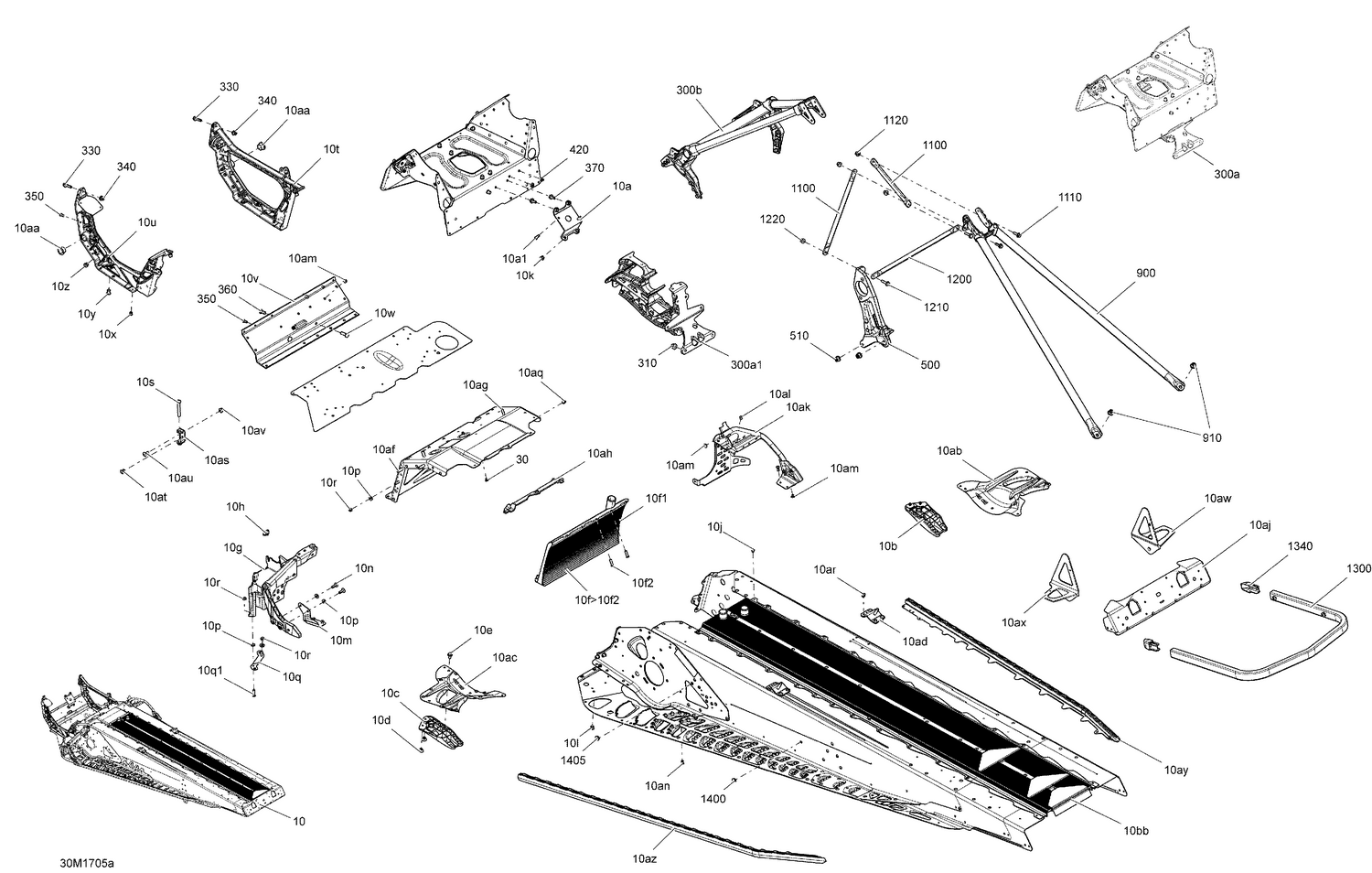

| Ref | Part Number | Description |
|---|
| 10a1 |
250300027 |
Clinch Stud M6 X 20 |
| 10aa |
505073317 |
Leg Cushion |
| 10ab |
518324874 |
RH Reinforcement |
| 10ac |
518324875 |
LH Reinforcement |
| 10ad |
518325973 |
RH Rear Base |
| 10ad |
518325974 |
LH Rear Base |
| 10af |
250300038 |
Clinch Stud |
| 10ag |
250300027 |
Clinch Stud M6 X 20 |
| 10ah |
518326656 |
Seal |
| 10aj |
518327105 |
Rear Cap |
| 10ak |
518328938 |
RH Stirup |
| 10al |
390909200 |
Avex Rivet |
| 10am |
293150203 |
Rivet Avibulb 3/16 |
| 10am |
293730042 |
Full Moon Dart 5 mm |
| 10an |
390909100 |
Avex Rivet |
| 10aq |
293150146 |
Henrob Rivet |
| 10ar |
293150174 |
Hemlock Rivet, 6.4 mm |
| 10as |
518326961 |
U-Attach |
| 10at |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 10au |
250000534 |
Tork Screw M6 X 16 |
| 10av |
233061414 |
Hex. Flange Nut M6 |
| 10aw |
518324885 |
RH Slide Bracket |
| 10ax |
518324886 |
LH Slide Bracket |
| 10ay |
518324812 |
RH Roller |
| 10az |
518324813 |
LH Roller |
| 10b |
518325782 |
RH Deflector, Black Polypropylene |
| 10bb |
518327580 |
Rear Radiator 120'' |
| 10c |
518325783 |
LH Deflector, Black Polypropylene |
| 10d |
293150104 |
Pop Rivet 3/16" |
| 10e |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 10f1 |
518326485 |
Front Radiator This part replaces 518326486. |
| 10f2 |
250300027 |
Clinch Stud M6 X 20 |
| 10g |
518326820 |
LH Stirup |
| 10h |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 10j |
293150203 |
Rivet Avibulb 3/16 |
| 10k |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10l |
293150174 |
Hemlock Rivet, 6.4 mm |
| 10m |
518326960 |
Support |
| 10n |
250000536 |
Tork Screw M6 X 18 |
| 10p |
250200039 |
Flat Washer |
| 10q1 |
250300027 |
Clinch Stud M6 X 20 |
| 10r |
232561414 |
Elastic Stop Nut M6 |
| 10s |
250000535 |
Torx Screw M8 X 55 |
| 10t |
518326795 |
RH Member |
| 10u |
518326796 |
LH Member |
| 10v |
518326198 |
Front Member |
| 10w |
250300038 |
Clinch Stud |
| 10x |
293150144 |
Stavex Rivet |
| 10y |
293150120 |
Hemlock Rivet 6.5 mm |
| 10z |
293150119 |
Hemlock Rivet, 6.5 mm |
| 30 |
390402400 |
Pop Rivet 3/16" |
| 300a1 |
518327487 |
Front Suspension Support |
| 300b |
518326970 |
Front Member |
| 310 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 330 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 340 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 350 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 360 |
293150182 |
Monobolt Rivet 6.4 |
| 370 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 420 |
293730053 |
Black Dart 5 mm |
| 500 |
518328346 |
Pulley Support |
| 510 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 900 |
518326559 |
Rear Member |
| 910 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 1100 |
518325114 |
Upper Lateral Column Support |
| 1110 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1200 |
518325115 |
Center Column Support |
| 1210 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 1220 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1300 |
518325374 |
Rear Bumper, 146" |
| 1340 |
520000567 |
Full Moon Cap |
| 1400 |
293730041 |
Full Moon Dart 8 mm |
