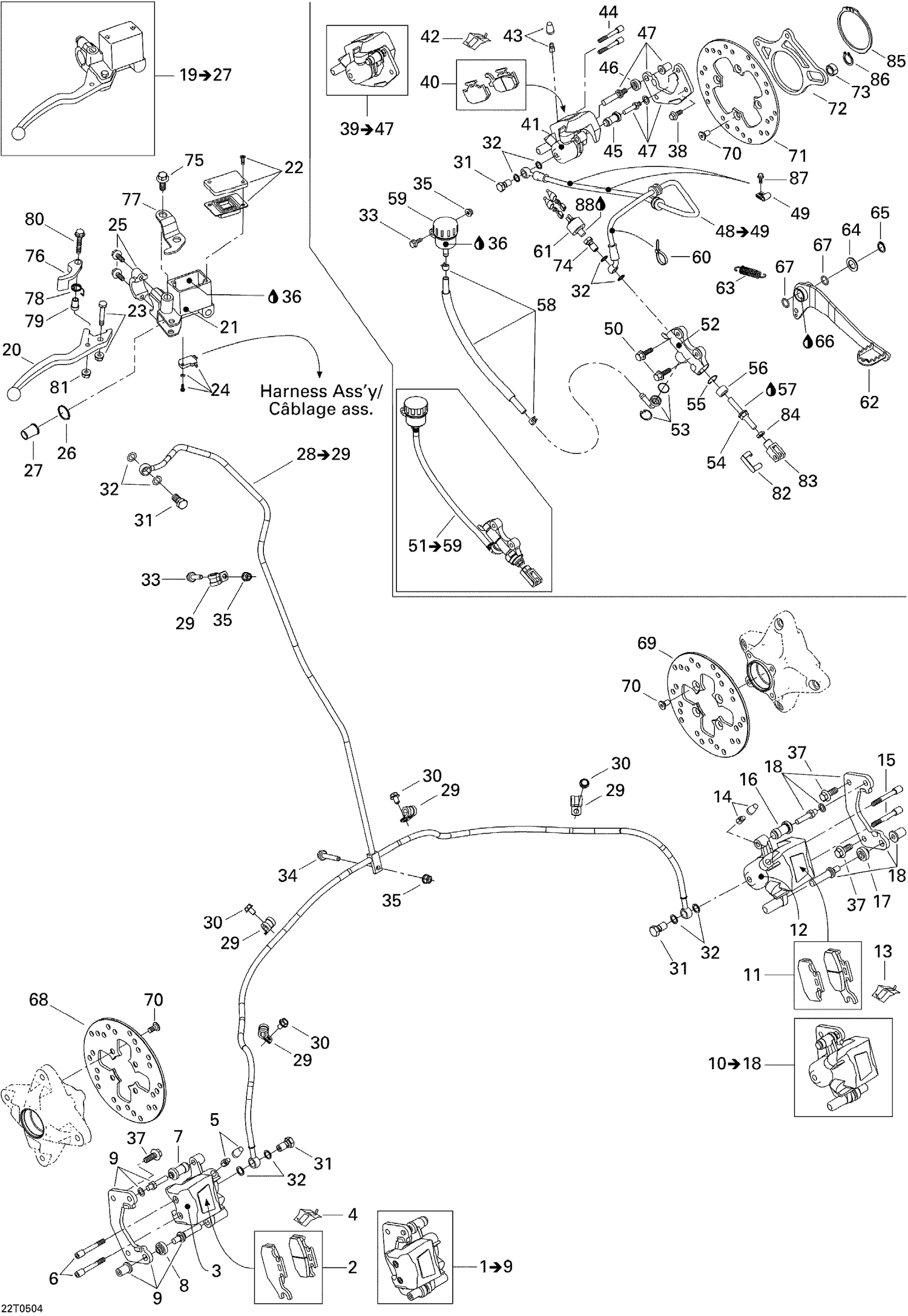

| Ref | Part Number | Description |
|---|
| 2 |
705600004 |
Brake Pad Kit |
| 3 |
705600078 |
Piston Set |
| 4 |
705600079 |
Spring |
| 5 |
705600080 |
Bleeding Screw |
| 6 |
705600081 |
Pin Set (2) |
| 7 |
705600082 |
Compression Boot |
| 8 |
705600083 |
Compression Boot |
| 9 |
705600062 |
RH BRAKE SUPPORT - Call your local BRP dealership |
| 11 |
705600014 |
Brake Pad Kit |
| 12 |
705600078 |
Piston Set |
| 13 |
705600079 |
Spring |
| 14 |
705600080 |
Bleeding Screw |
| 15 |
705600081 |
Pin Set (2) |
| 16 |
705600082 |
Compression Boot |
| 17 |
705600083 |
Compression Boot |
| 18 |
705600061 |
LH BRAKE SUPPORT - Call your local BRP dealership |
| 20 |
705600057 |
ARM LEVER - Call your local BRP dealership |
| 21 |
705600058 |
Piston Kit |
| 22 |
705600084 |
Cap Set |
| 23 |
705600085 |
BOLT KIT - Call your local BRP dealership |
| 24 |
705600086 |
SWITCH KIT - Call your local BRP dealership |
| 25 |
705600087 |
BRACKET KIT - Call your local BRP dealership |
| 26 |
705600088 |
CIRCLIP - Call your local BRP dealership |
| 27 |
705600089 |
COMPRESSION BOOT - Call your local BRP dealership |
| 29 |
Not |
Available As Spare Part - Hose Retainer |
| 30 |
210261050 |
Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 31 |
705600609 |
Banjo Bolt (M10 x 1.25 thread) This part replaces 705600396. |
| 32 |
414920600 |
Washer |
| 33 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 34 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 35 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 36 |
293600063 |
BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership |
| 36 |
293600131 |
HYDRAULIC OIL - Call your local BRP dealership This part replaces 293600062. |
| 37 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 38 |
207581244 |
Hex. Flange Screw M8 X 12, Scotch Grip |
| 40 |
705600014 |
Brake Pad Kit |
| 41 |
705600078 |
Piston Set |
| 42 |
705600079 |
Spring |
| 43 |
705600080 |
Bleeding Screw |
| 44 |
705600081 |
Pin Set (2) |
| 45 |
705600082 |
Compression Boot |
| 46 |
705600083 |
Compression Boot |
| 47 |
705600298 |
LH CALIPER SUPPORT - Call your local BRP dealership |
| 49 |
Not |
Available As Spare Part - Hose Retainer |
| 50 |
207581646 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 52 |
705600063 |
Piston Set |
| 53 |
705600064 |
PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership |
| 55 |
705600068 |
Circlip |
| 56 |
705600090 |
Compression Boot |
| 57 |
Not |
Available As Spare Part - Grease, Therma Lube, 2 G |
| 58 |
705600190 |
HOSE ASS'Y - Call your local BRP dealership |
| 59 |
705600182 |
Oil Tank, Brake Fluid Reservoir |
| 60 |
414115200 |
Tie-Rap 180 mm |
| 61 |
710001345 |
BRAKE SWITCH - Call your local BRP dealership This part replaces 710000099. |
| 62 |
705600094 |
Brake Pedal |
| 63 |
705600098 |
BREAK PEDAL SPRING - Call your local BRP dealership |
| 64 |
503107800 |
WASHER - Call your local BRP dealership |
| 65 |
293370012 |
CIRCLIP - Call your local BRP dealership |
| 66 |
293550010 |
Synthetic Grease, 400 G |
| 67 |
293300053 |
O-RING - Call your local BRP dealership |
| 68 |
705600042 |
RH BRAKE DISC - Call your local BRP dealership |
| 69 |
705600093 |
LH BRAKE DISC - Call your local BRP dealership |
| 70 |
235381646 |
Torx Screw M8 X 16, Scotch Grip |
| 71 |
705500059 |
Brake Disc |
| 72 |
705600305 |
REAR CALIPER SUPPORT - Call your local BRP dealership |
| 73 |
705500068 |
Caliper Guide |
| 74 |
705600092 |
BANJO BOLT - Call your local BRP dealership |
| 75 |
250000029 |
HEX. SCREW M10 X 16 - Call your local BRP dealership |
| 76 |
705600095 |
LEVER ARM - Call your local BRP dealership |
| 77 |
705600389 |
LEVER STOPPER - Call your local BRP dealership |
| 78 |
705600055 |
SPRING - Call your local BRP dealership |
| 79 |
705600097 |
SNAP RING - Call your local BRP dealership |
| 80 |
210264080 |
HEX. SCREW M6 X 40 - Call your local BRP dealership |
| 81 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 82 |
219702305 |
Pin Kit This part replaces 250400007. |
| 83 |
705600100 |
Yoke |
| 84 |
232180600 |
Hex. Jam Nut M8 |
| 85 |
293370014 |
CIRCLIP - Call your local BRP dealership |
| 86 |
293370015 |
CIRCLIP - Call your local BRP dealership |
| 87 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
