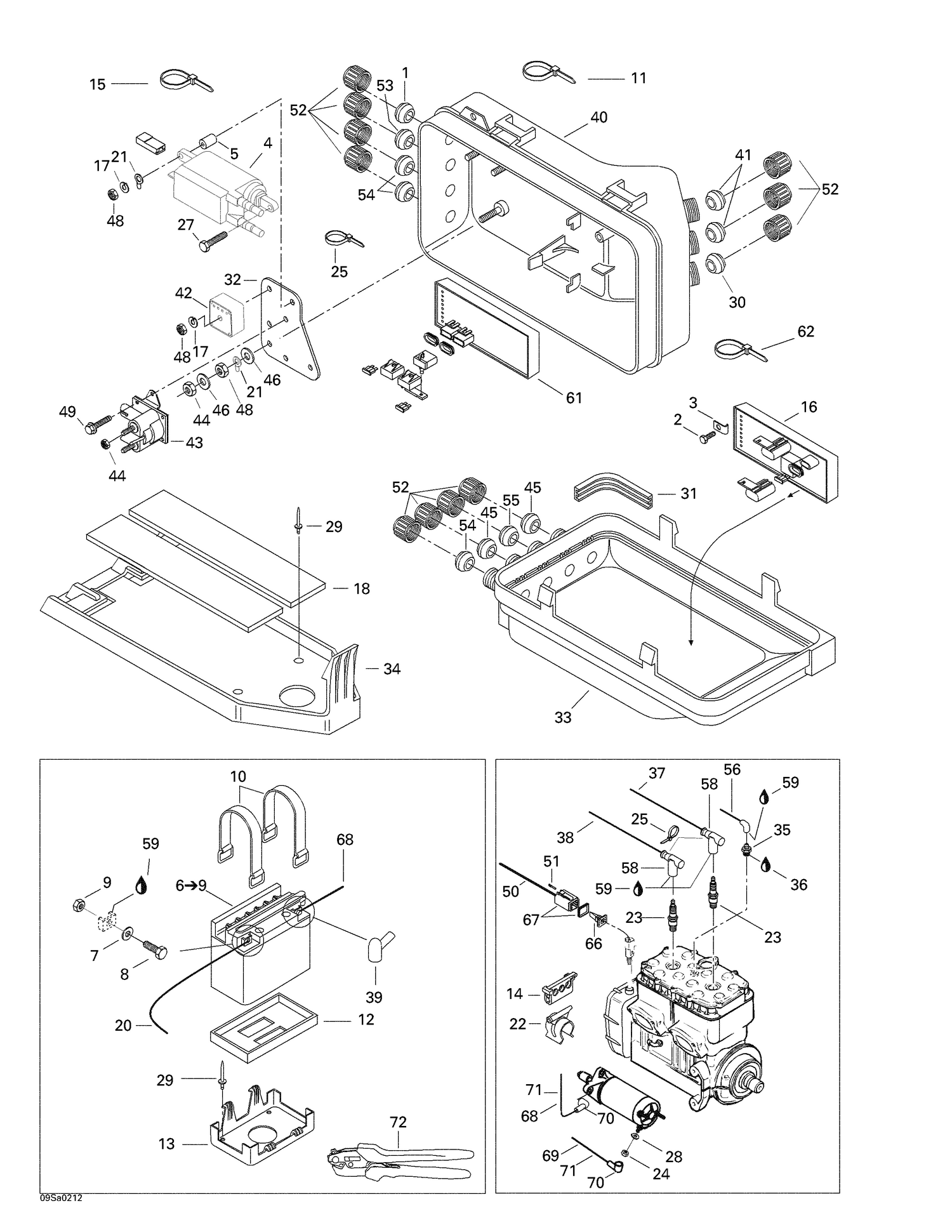

| Ref | Part Number | Description |
|---|
| 1 |
293720030 |
Grommet, 1 Circuit, Blue |
| 2 |
209461340 |
Hex. Screw M6.3 x 13 |
| 3 |
278000401 |
Support Bracket |
| 4 |
278000586 |
IGNITION COIL - Call your local BRP dealership |
| 5 |
278000235 |
SPACER - Call your local BRP dealership |
| 7 |
211200018 |
FLAT WASHER 6 MM - Call your local BRP dealership |
| 8 |
207161644 |
Hex. Screw M6 X 16 This part replaces 211000045. |
| 9 |
232061414 |
Hex. Nut M6 This part replaces 211100022. |
| 10 |
293850097 |
Retainer Strap This part replaces 293850021. |
| 11 |
414115200 |
Tie-Rap 180 mm |
| 12 |
278001746 |
Lower Battery Pad |
| 13 |
278001430 |
Battery Support |
| 15 |
293750009 |
Tie-Rap 173 mm |
| 16 |
278000391 |
Fuse Block |
| 17 |
234161601 |
Lock Washer Helical M6 |
| 18 |
293830012 |
Rubber Strip |
| 19 |
278001008 |
Insulated Sheath |
| 20 |
278000514 |
Battery Cable (Red) |
| 21 |
278000300 |
Ring Terminal |
| 22 |
278000559 |
COLLAR SUPPORT - Call your local BRP dealership |
| 23 |
219703119 |
NGK Spark Plug BR8ES This part replaces 278000609. |
| 24 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 25 |
293750002 |
Tie Wrap 142 mm |
| 26 |
278001009 |
Female Terminal |
| 27 |
209462540 |
SCREW-TAPP.HEX.ISO.1479C - Call your local BRP dealership |
| 28 |
234061600 |
Stainless Flat Washer M6 |
| 29 |
293150037 |
Avdel Rivet 3/16" |
| 30 |
278000098 |
GROMMET - Call your local BRP dealership |
| 31 |
278000181 |
Gasket |
| 32 |
278000615 |
Mounting Plate |
| 33 |
278000786 |
Electric Box Cover |
| 34 |
278001119 |
Electric Box Support |
| 35 |
278000194 |
Temperature Sensor |
| 37 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 38 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 39 |
278000020 |
PROTECTION CAP - Call your local BRP dealership |
| 40 |
278001085 |
Electric Box Base |
| 41 |
278000682 |
Grommet |
| 42 |
278000123 |
RECTIFIER ASS'Y - Call your local BRP dealership |
| 43 |
278003012 |
Starter Relay This part replaces 278001376. |
| 44 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 45 |
293720025 |
GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership |
| 46 |
234061600 |
Stainless Flat Washer M6 |
| 48 |
232061600 |
Hex. Nut M6 |
| 49 |
210261040 |
Hex. Flange Screw M6 X 10 |
| 51 |
278000632 |
Female Terminal |
| 52 |
278000100 |
Electric Wire Cap |
| 53 |
278000098 |
GROMMET - Call your local BRP dealership |
| 54 |
570026800 |
Grommet, 4 Circuit, Red |
| 55 |
278000193 |
GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership |
| 57 |
278001008 |
Insulated Sheath |
| 58 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 59 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 60 |
278001007 |
Insulated Sheath This part replaces 290964072. |
| 61 |
278001134 |
ELECTRONIC MODULE ASS'Y - Call your local BRP dealership |
| 62 |
414115200 |
Tie-Rap 180 mm This part replaces 294000606. |
| 64 |
278000230 |
Male Terminal |
| 65 |
278000231 |
Insulation Sheath |
| 66 |
278000738 |
Male Lock, 4 Circuits |
| 67 |
278000739 |
Male Connector, 4 Circuits |
| 68 |
278001680 |
Ground Cable Battery, no 6, meter) |
| 69 |
278001690 |
Cable Battery, no 6, meter) |
| 70 |
278001682 |
Terminal 45°, Small Hole |
| 71 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 278001681 |
Ground |
Cable Battery, No. 4, Meter 278001681 |
| 278001685 |
FLAT |
TERMINAL, BIG HOLE - Call your local BRP dealership 278001685 |
| 278001688 |
FLAT |
TERMINAL - Call your local BRP dealership 278001688 |
| 278001691 |
Red |
Cable Battery/Starter (no. 4) (Meter 278001691 |
