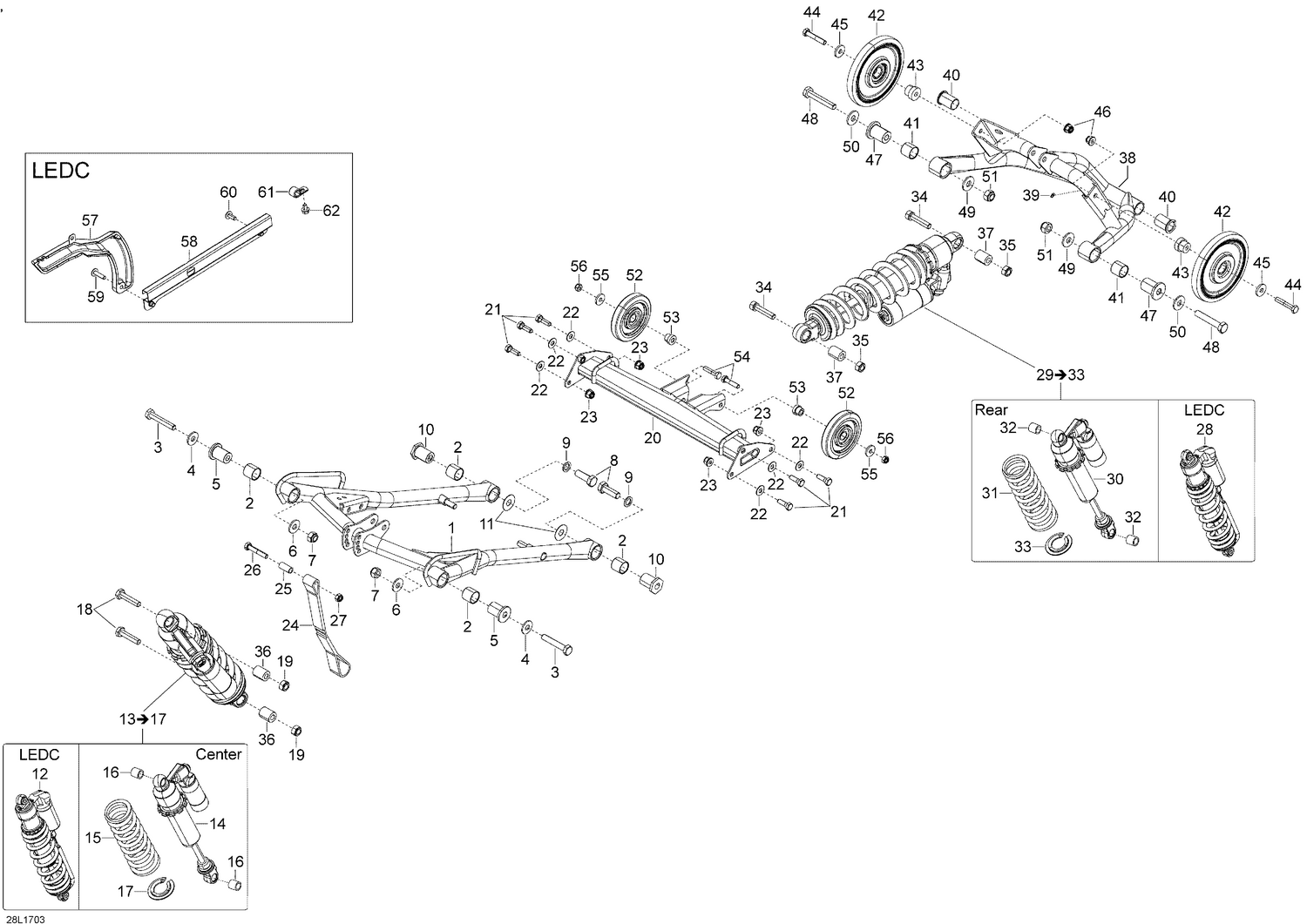

08- Rear Suspension
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 503191554 | Bushing |
| 3 | 250000696 | Hexagonal Screw |
| 4 | 503191926 | Washer |
| 5 | 503194580 | Upper Axle Sleeve |
| 6 | 503191926 | Washer |
| 7 | 233601466 | Elastic Locking Nut M10 |
| 8 | 250000537 | Hex. Cap Screw M12 X 35 |
| 9 | 503192491 | Washer |
| 10 | 503194579 | Lower Axle Sleeve |
| 11 | 503190656 | Washer |
| 14 | 503194402 | Shock |
| 15 | 250500011 | Spring (220mm - 55N/mm) |
| 16 | 31094 | Cushion |
| 17 | 605354631 | Spring Lock |
| 18 | 207004544 | Hex. Screw M10 X 45 |
| 19 | 232500416 | Elastic Stop Nut M10 |
| 21 | 250000556 | Hex. Cap Screw M8 x 25 |
| 22 | 503192494 | Washer |
| 23 | 233281414 | Hex. Flange Elastic Nut M8 |
| 24 | 605355116 | Limiter Strap |
| 25 | 605455335 | Sleeve |
| 26 | 207084544 | Hex. Screw M8 X 45 |
| 27 | 232581414 | Hex. Elastic Stop Nut M8 |
| 30 | 503194404 | Shock |
| 31 | 503193513 | Spring (280mm - 60N/mm) |
| 32 | 31094 | Cushion |
| 33 | 605354631 | Spring Lock |
| 34 | 40134 | Screw Socket HD.DIN 912 This part replaces 205004544. |
| 35 | 232500416 | Elastic Stop Nut M10 |
| 38 | 503193571 | Rear Arm |
| 39 | 408200700 | Grease Fitting |
| 40 | 503191640 | Cushion |
| 41 | 503191554 | Bushing |
| 42 | 503193852 | Idler Wheel |
| 43 | 605454461 | Sleeve |
| 44 | 207084544 | Hex. Screw M8 X 45 |
| 45 | 20077 | M8 Washer |
| 46 | 233281414 | Hex. Flange Elastic Nut M8 |
| 47 | 503190698 | Axle |
| 48 | 250000696 | Hexagonal Screw |
| 49 | 503191926 | Washer |
| 50 | 503191926 | Washer |
| 51 | 233601466 | Elastic Locking Nut M10 |
| 52 | 572043500 | Idler Wheel |
| 53 | 503193330 | Sleeve |
| 54 | 207083544 | Hex. Screw M8 X 35 |
| 55 | 20077 | M8 Washer |
| 56 | 232581414 | Hex. Elastic Stop Nut M8 |
