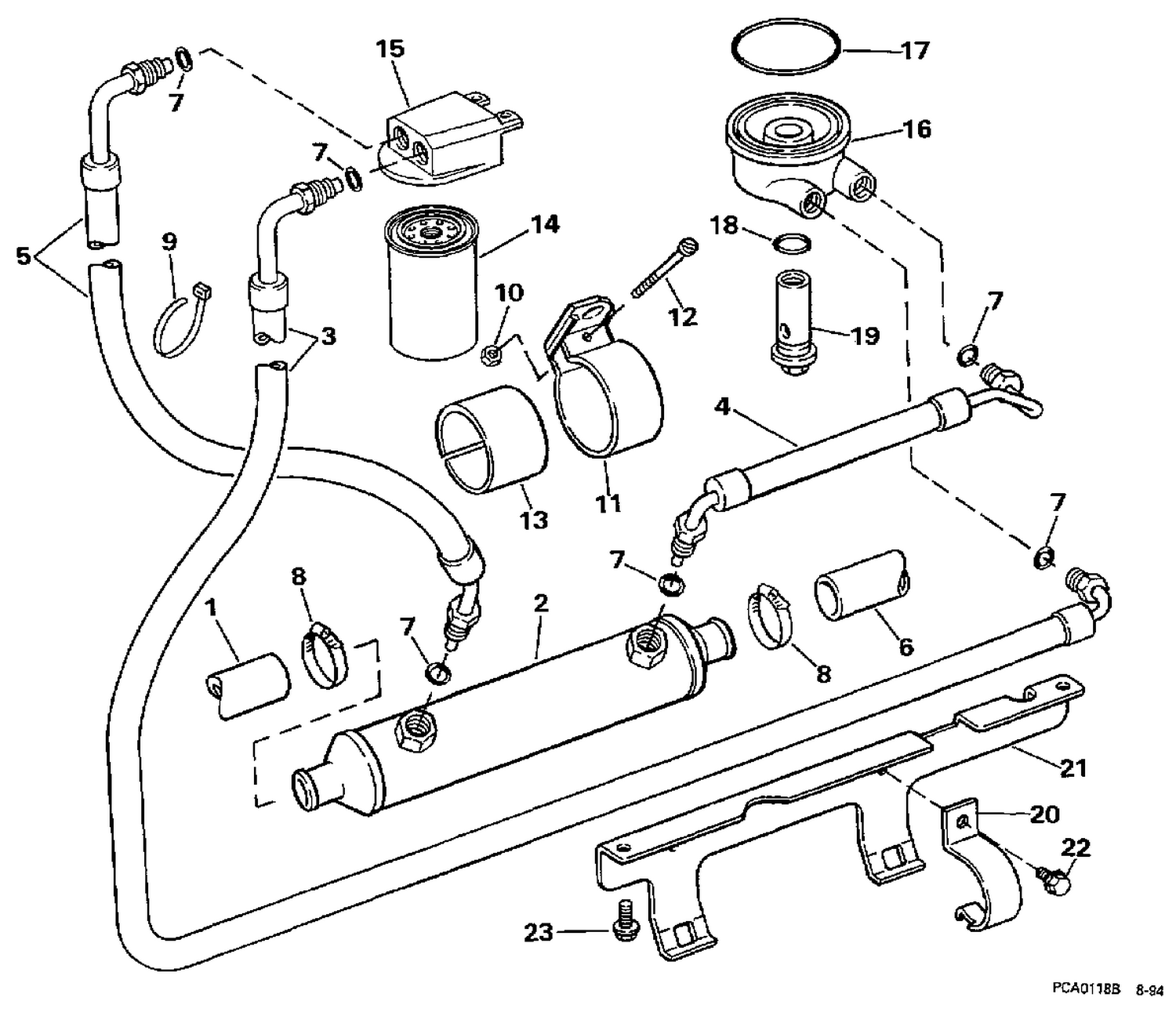

| Ref | Part Number | Description |
|---|
| 1 |
3853243 |
HOSE, Cooler to thermostat This part replaces 3850419. |
| 2 |
3853969 |
OIL COOLER |
| 2 |
3854113 |
OIL COOLER |
| 3 |
3853964 |
HOSE, Filter to adapter |
| 4 |
3853965 |
HOSE, Adapter to cooler |
| 4 |
3854111 |
HOSE, Adapter to cooler |
| 5 |
3853966 |
HOSE, Cooler to filter |
| 6 |
3853240 |
HOSE, Cooler to cooler |
| 6 |
3854848 |
HOSE, Cooler to cooler |
| 8 |
0912627 |
CLAMP This part replaces 3852602. |
| 9 |
3852620 |
TIE STRAP, Oil lines |
| 10 |
3852079 |
BRACKET, Oil cooler |
| 11 |
3852079 |
BRACKET, Oil cooler |
| 13 |
3853236 |
SLEEVE, Ignition coil |
| 14 |
0502901 |
OIL FILTER This part replaces 0173233. |
| 15 |
3854662 |
ADAPTER, Oil filter |
| 16 |
3853246 |
ADAPTER, Engine oil |
| 17 |
3852470 |
O-RING, Adapter to engine |
| 19 |
3853495 |
RETAINER, Adapter |
| 20 |
3853535 |
CLAMP, Oil cooler |
| 21 |
3853532 |
BRACKET, Oil cooler |
| 22 |
3853399 |
SCREW, Brace to alternator |
