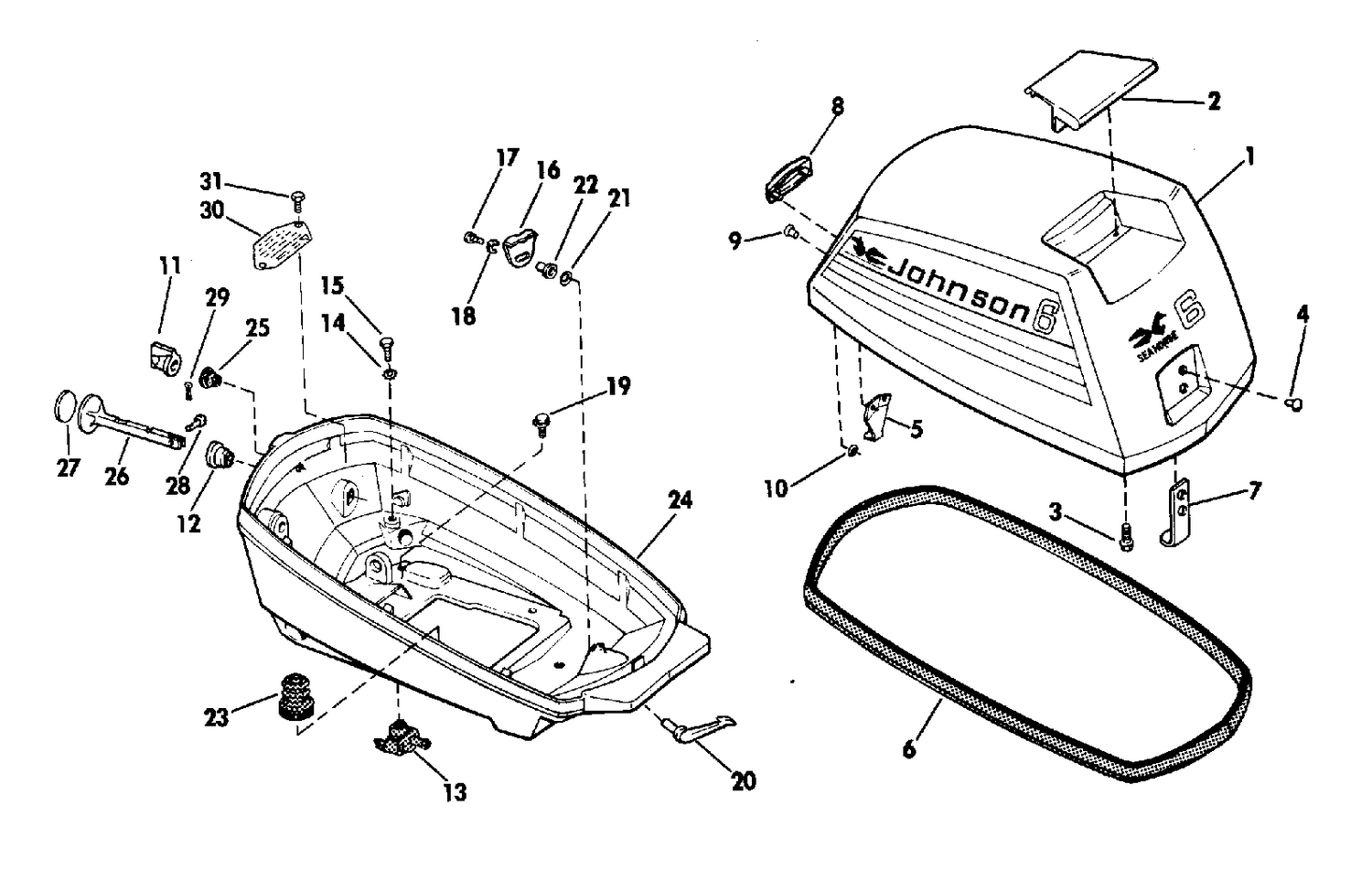

| Ref | Part Number | Description |
|---|
| 1 |
0386167 |
MOTOR COVER ASSY. |
| 2 |
0381165 |
TILT HAND & SCREW ASSY |
| 3 |
0312299 |
VIS, serre-câble |
| 4 |
0315705 |
RIVERT,Rear hook |
| 5 |
0311324 |
HOOK, Front |
| 6 |
0311383 |
SEAL |
| 7 |
0312183 |
HOOK, Rear |
| 8 |
0317086 |
APPLIQUE |
| 11 |
0314615 |
ADJUSTING KNOB |
| 12 |
0320731 |
BUSHING, Choke knob This part replaces 0204450. |
| 13 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 17 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 19 |
0309526 |
SCREW |
| 20 |
0312184 |
HANDLE, Latch |
| 22 |
0553769 |
BUSHING |
| 23 |
0306119 |
GROMMET |
| 24 |
0319390 |
MOTOR COVER, Lower |
| 25 |
0311439 |
GROMET, Knob slow speed |
| 26 |
0315520 |
KNOB, Choke |
| 27 |
0315521 |
INSERT |
| 28 |
0382778 |
PIN, Solenoid This part replaces 0303738. |
| 29 |
0301912 |
COTER PIN |
| 30 |
0320023 |
PLATE, Safety warning |
| 31 |
0316195 |
SCREW |
| 0386525 |
0386525 |
DECAL SET |
