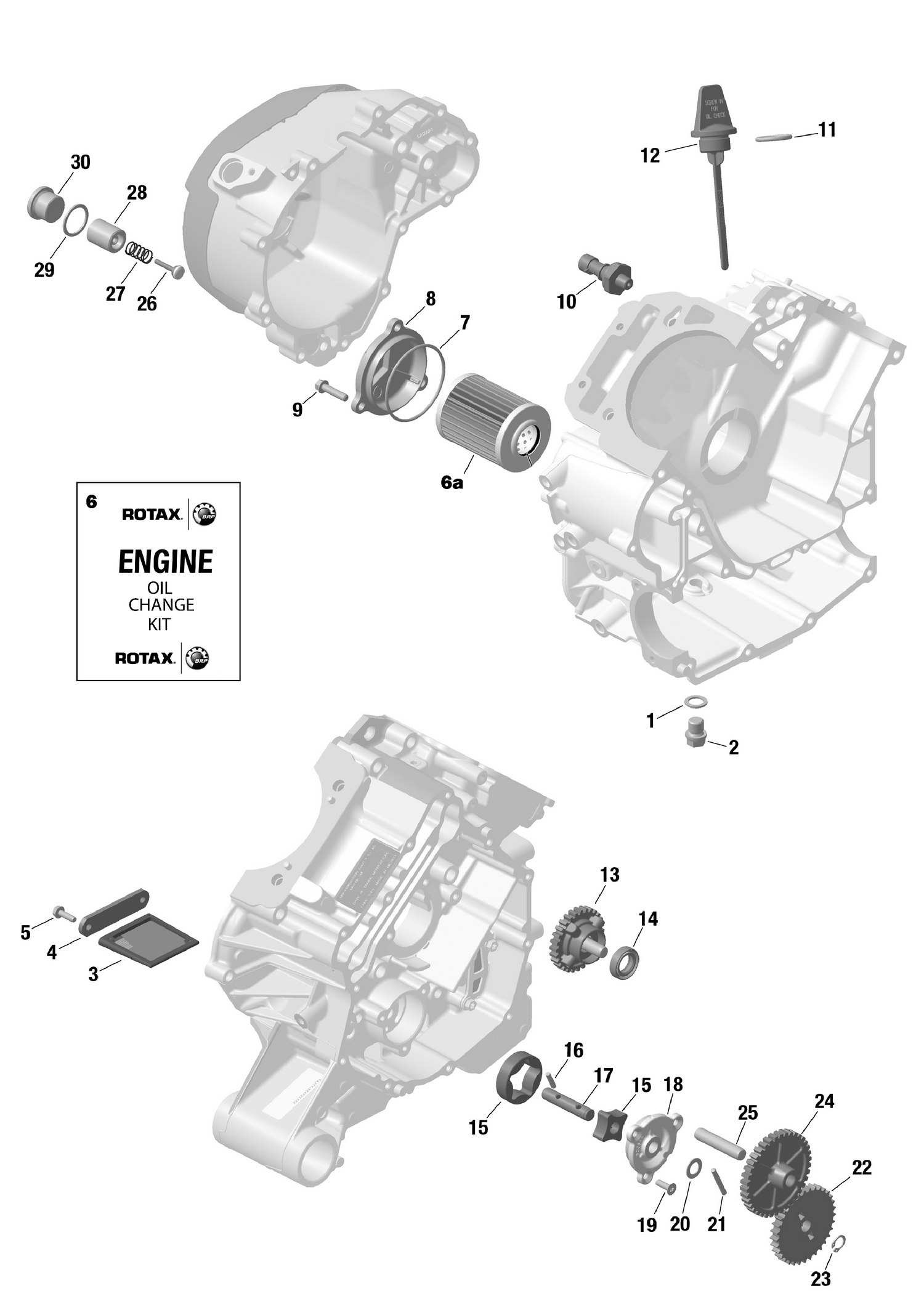

| Ref | Part Number | Description |
|---|
| 2 |
420241787 |
Magnetic Drain Plug M12 This part replaces 420241786. |
| 3 |
420256322 |
Oil Sieve |
| 4 |
420210661 |
Cover Sieve |
| 5 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 6 |
9779252 |
Ensemble de vidange d’huile synthétique 4T 10W-50 pour moteur bicylindre en V Rotax de 500 cc et plus |
| 6 |
9779259 |
Can-Am Oil Change Kit 0W40 500 Cc + |
| 6 |
9779488 |
Can-Am Oil Change Kit 5W40 500 CC + This part replaces 9779258. |
| 6a |
420256188 |
Oil Filter |
| 8 |
420612135 |
Oil Filter cover This part replaces 420612132. |
| 9 |
420641238 |
Torx Flange Screw M6 X 25 |
| 10 |
420256915 |
Oil Pressure Switch |
| 12 |
420256802 |
Oil Dipstick |
| 15 |
420256348 |
Oil Pump Rotor |
| 16 |
420232731 |
Needle Pin |
| 17 |
420237059 |
Oil Pump Shaft |
| 18 |
420210646 |
Oil Pump Cover This part replaces 420210641. |
| 19 |
420640823 |
Torx Head Screw M5 X 16 This part replaces 420640821. |
| 20 |
420827590 |
Thrust Washer |
| 21 |
420232431 |
Needle Pin |
| 22 |
420434320 |
Oil Pump Gear, 33 Teeth |
| 23 |
504152282 |
Circlip |
| 24 |
420434300 |
Idle Gear, 38 Teeth |
| 25 |
XXX |
Not Available As Spare Parts |
| 26 |
420656370 |
Pressure Relief Valve |
| 27 |
420939481 |
Spring This part replaces 420939480. |
| 28 |
420256487 |
Housing This part replaces 420256486. |
