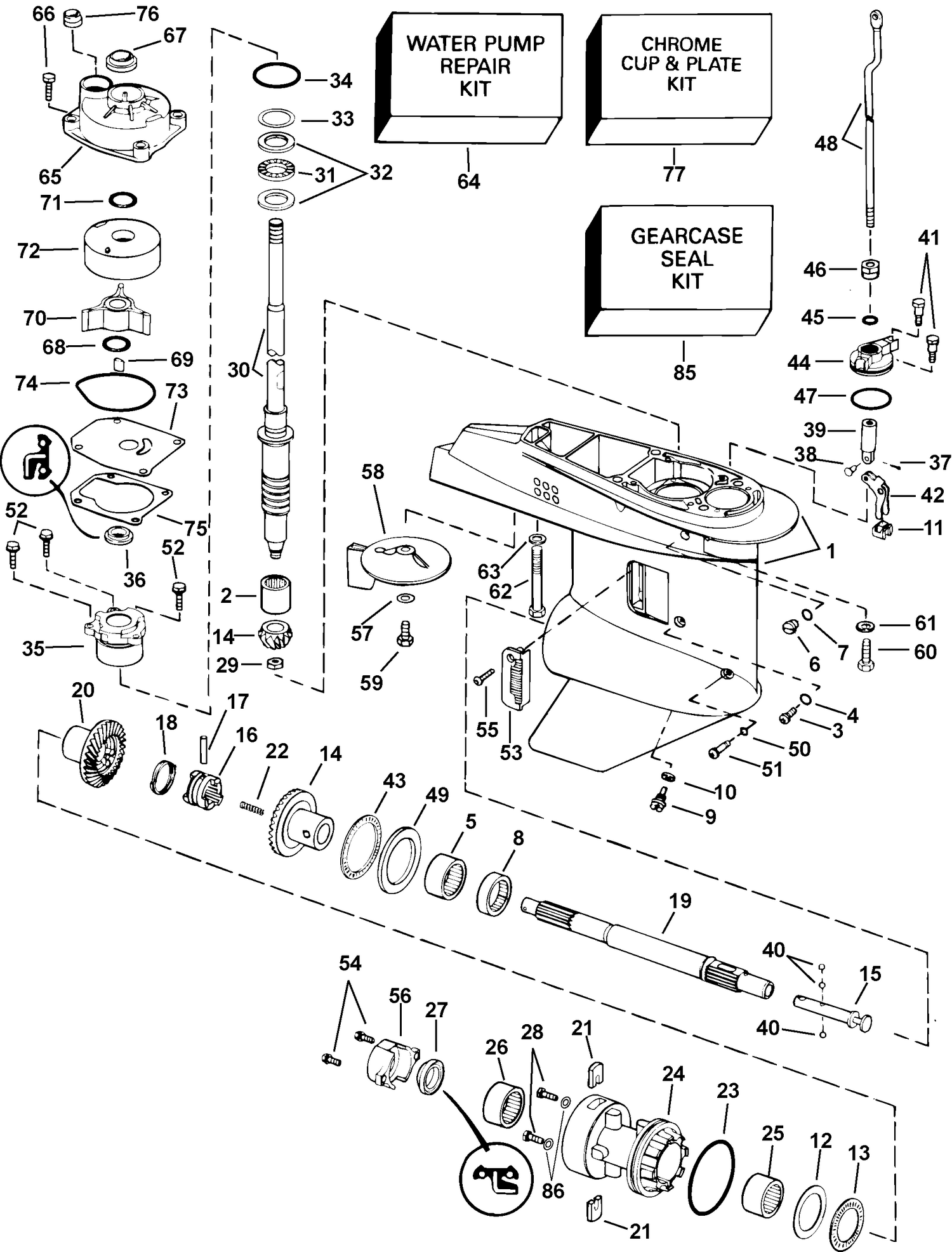

GEARCASE
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0435275 | BOÎTIER D'ENGRENAGES & PALIER |
| 53 | 0332494 | SCREEN |
| 56 | 0398873 | ANODE AY |
| 58 | 0340539 | TRIM TAB, Gearcase |
| 60 | 0305282 | BOLT, Bowl & suction piece |
| 62 | 0313697 | SCR,Grc to hsg.long |
| 64 | 0438592 | WATER PUMP REPAIR KIT |
| 71 | 0331188 | O-Ring |
| 77 | 0389145 | CHROME CUP & PLATE KIT |
| 85 | 0433550 | GEARCASE SEAL KIT |
| 0435280 | BOÎTIER | D'ENGRENAGES 0435280 |
| 0435280 | GEARCASE | Assy 0435280 |
