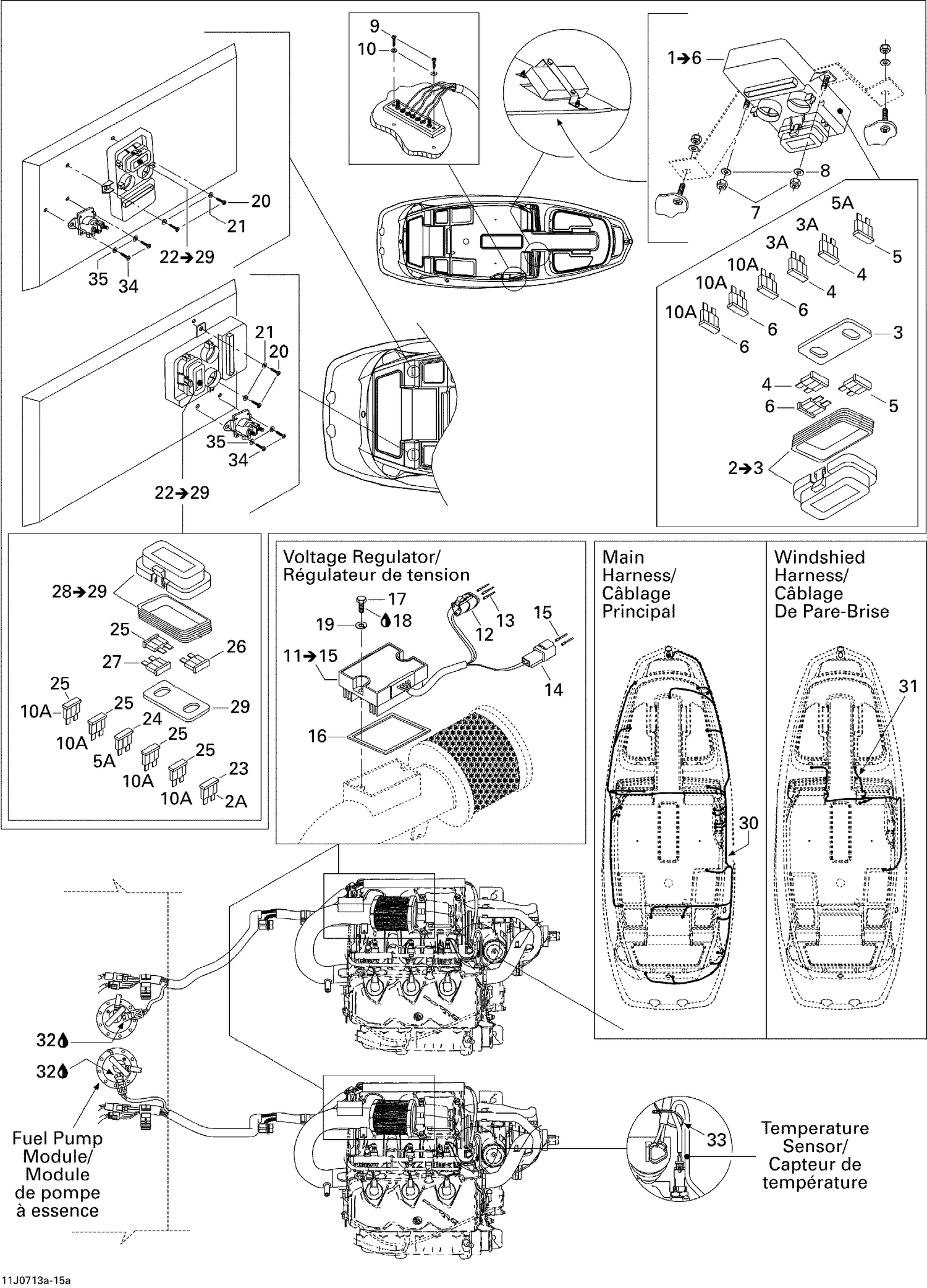

| Ref | Part Number | Description |
|---|
| 3 |
278001719 |
COVER BUSHING - Call your local BRP dealership |
| 4 |
278001196 |
FUSE, 3 AMPERES - Call your local BRP dealership |
| 5 |
278000344 |
Fuse, 5 Amperes |
| 6 |
278001197 |
Fuse, 10 Amperes |
| 7 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 8 |
234062600 |
Flat Washer M6, Stainless |
| 9 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 10 |
234041600 |
Flat Washer 4 mm, Stainless |
| 12 |
278002375 |
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership This part replaces 409207400. |
| 13 |
278000632 |
Female Terminal |
| 14 |
409206900 |
Male Housing, 2 Circuits |
| 15 |
515175567 |
Female Terminal |
| 16 |
293250123 |
SEAL - Call your local BRP dealership |
| 17 |
204100134 |
TAPPING SCREW 1/4-20 X 3/4 - Call your local BRP dealership |
| 18 |
293800005 |
Loctite 271, 10 ml |
| 19 |
211200025 |
Lock Washer 1/4” |
| 20 |
204100203 |
TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership |
| 21 |
234062600 |
Flat Washer M6, Stainless |
| 23 |
278001442 |
FUSE, 2 AMPERES - Call your local BRP dealership |
| 24 |
278000344 |
Fuse, 5 Amperes |
| 25 |
278001197 |
Fuse, 10 Amperes |
| 26 |
409003900 |
Fuse, 20 Amperes |
| 27 |
410917200 |
Fuse, 30 Amperes |
| 29 |
278001719 |
COVER BUSHING - Call your local BRP dealership |
| 30 |
204471098 |
Main Harness (Accessory Harness) |
| 32 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 33 |
293750002 |
Tie Wrap 142 mm |
| 34 |
204100073 |
SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership |
