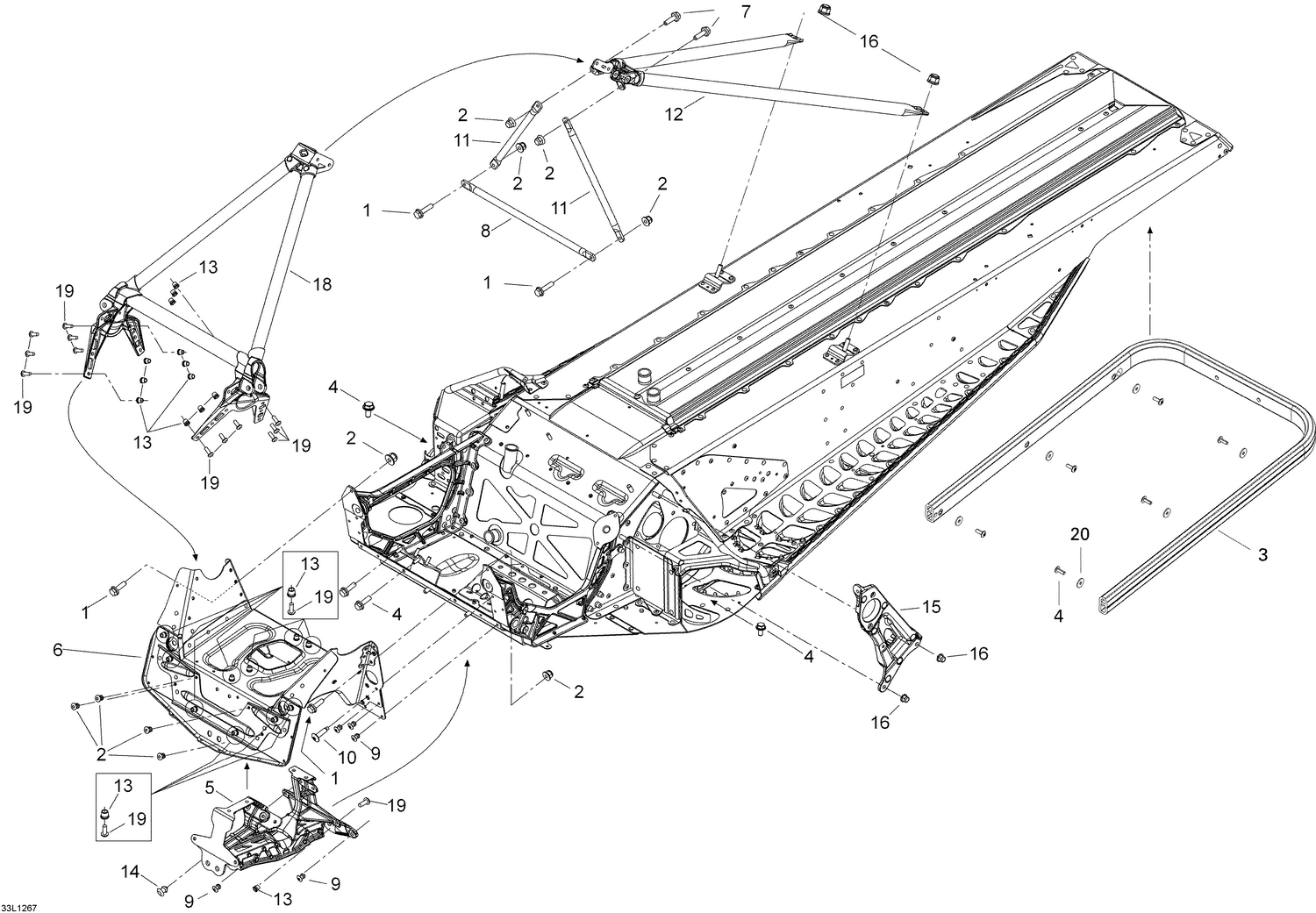

| Ref | Part Number | Description |
|---|
| 1 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 2 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 3 |
518326611 |
Rear Bumper |
| 4 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 5 |
518327487 |
Support This part replaces 518325925. |
| 6 |
518326762 |
Cross member |
| 7 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 8 |
518325115 |
Center Column Support |
| 9 |
293150144 |
Stavex Rivet |
| 10 |
210262050 |
Forming Screw M6 x 20 This part replaces 210262080. |
| 11 |
518325114 |
Upper Column Support |
| 12 |
518327237 |
Rear Member |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 14 |
293150266 |
Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 15 |
518327460 |
Pulley Support This part replaces 518326192. |
| 16 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 18 |
518327565 |
Front Member This part replaces 518326972. |
| 19 |
207662044 |
Hex. Flange Screw M6 X 20 |
