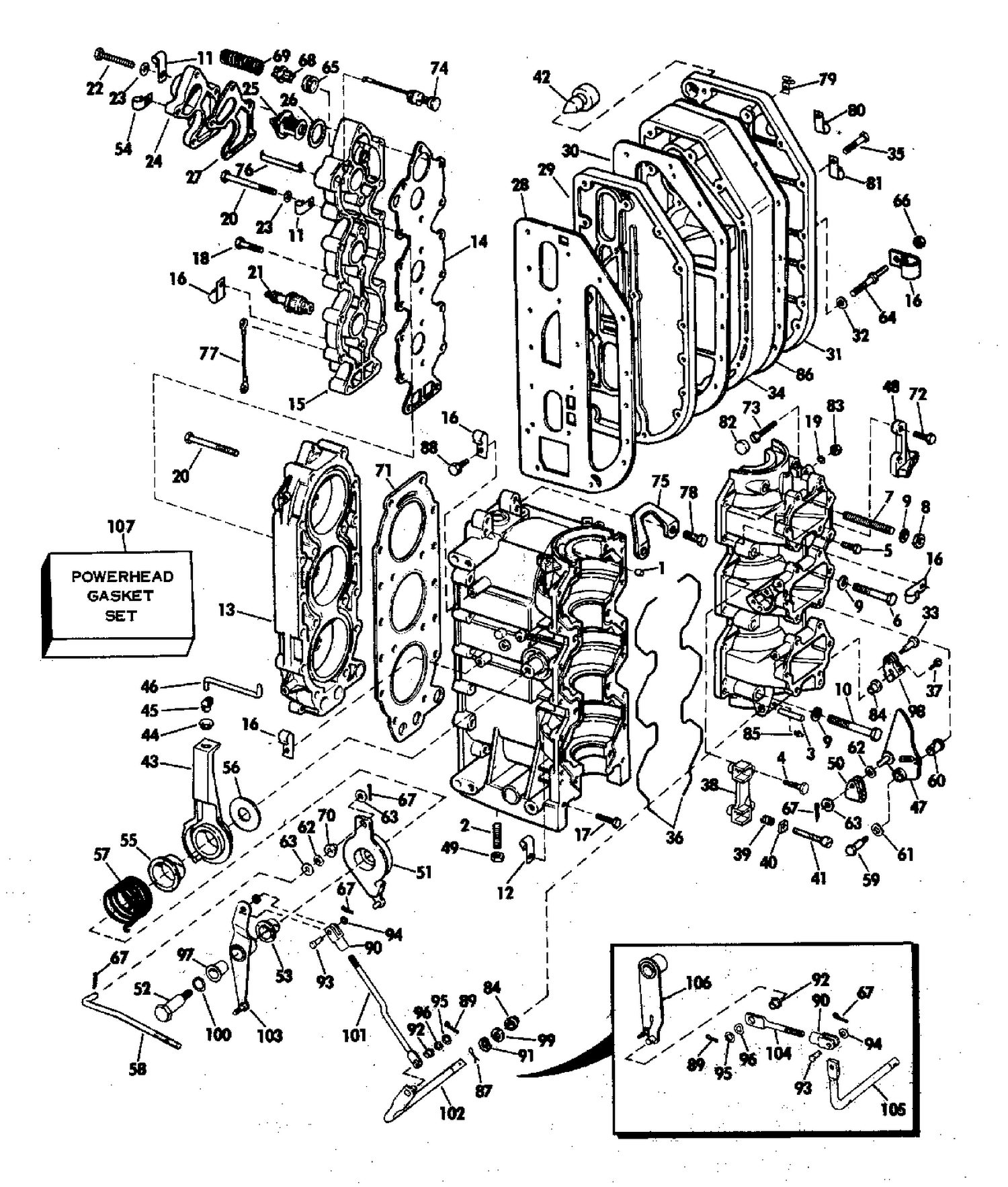

| Ref | Part Number | Description |
|---|
| 4 |
0302288 |
BOLT |
| 5 |
0300646 |
VIS, ancrage |
| 13 |
0319335 |
CYLINDER HEAD |
| 14 |
0318609 |
GASKET, Cover |
| 15 |
0317218 |
COVER, Cylinder head |
| 16 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 18 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 20 |
0307267 |
SCREW |
| 21 |
0386939 |
PARK PLUG,AC M40FFX |
| 21 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 22 |
0314907 |
SCREW, Cover |
| 23 |
0302471 |
W.ASHER, Plain |
| 24 |
0317219 |
COVER, Thermostat & valves |
| 25 |
0396987 |
THERMOSTAT & SEAL ASSY. This part replaces 0382385. |
| 26 |
0313416 |
GASKET, Thermostat |
| 27 |
0332108 |
GASKET, Thermostat cover This part replaces 0317226. |
| 28 |
0331917 |
GASKET, Plate to crankcase This part replaces 0317227. |
| 29 |
0324555 |
PLATE, Exhaust manifold This part replaces 0317215. |
| 30 |
0331916 |
GASKET, Exhaust manifold This part replaces 0317228. |
| 31 |
0390041 |
COVER, Exhaust manifold This part replaces 0317217. |
| 32 |
0316676 |
LOCKWASHER, Ground |
| 33 |
0388676 |
PIN, Shaft lever to shift rod This part replaces 0318583. |
| 34 |
0318309 |
MANIFOLD, Exhaust |
| 35 |
0316907 |
SCREW, Exhaust cover |
| 37 |
0325857 |
SCREW, Fuel connector This part replaces 0304151. |
| 38 |
0316664 |
BRACKET, Adjustment |
| 41 |
0306337 |
SCREW, Adjustment |
| 42 |
0314021 |
BUMBER, Exhaust manifold |
| 43 |
0319318 |
LEVER, Spark adavance |
| 44 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313700. |
| 45 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313703. |
| 46 |
0330275 |
LINK, Spark advance This part replaces 0320284. |
| 47 |
0394466 |
CAM & PIN ASSY., Throttle This part replaces 0386652. |
| 48 |
0318366 |
BRACKET, Fuel pump |
| 49 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 50 |
0310524 |
YOKE |
| 51 |
0318251 |
LEVER, Throttle |
| 52 |
0318192 |
SHDLR. SCREW, Throttle lever |
| 53 |
0314002 |
BUSHING |
| 54 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 55 |
0314003 |
BSHING, Spark lever |
| 56 |
0314098 |
WASHER, Throttle lever |
| 57 |
0314094 |
LINK, Throttle lever to cam |
| 58 |
0329889 |
LINK Throttle lever to cam This part replaces 0314133. |
| 59 |
0314136 |
VIS, came de papillon |
| 61 |
0204445 |
BOW WASHER |
| 62 |
0204757 |
BOW WASHER |
| 63 |
0302474 |
WAHSER,Link |
| 64 |
0330777 |
BOLT, Double ended This part replaces 0318449. |
| 65 |
0316132 |
GORMMET, Valve |
| 66 |
0311375 |
NUT This part replaces 0316659. |
| 68 |
0397958 |
VALVE, Pressure relief This part replaces 0315625. |
| 69 |
0317245 |
SPRING, Control valve |
| 71 |
0313413 |
GASKET, Cylinder head |
| 72 |
0303398 |
VIS, support This part replaces 0302030. |
| 73 |
0317615 |
SCERW,Spark advance |
| 74 |
0386686 |
SWITCH TEMP |
| 75 |
0333962 |
LIFT BRACKET This part replaces 0315930. |
| 77 |
0376349 |
FIL, masse |
| 78 |
0306322 |
BOLT, Water pump |
| 79 |
0031197 |
CLIP,Cable clamp to exhaust cover |
| 80 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 81 |
0317000 |
COLLIER, câble |
| 82 |
0314416 |
BUMBER, Advance screw |
| 84 |
0312708 |
BUSHING |
| 86 |
0331916 |
GASKET, Exhaust manifold This part replaces 0319097. |
| 88 |
0303911 |
SCREW, Clamp stator to ground |
| 90 |
0318567 |
TOKE, Link to bellcrank |
| 91 |
0202026 |
LOCK WASHER, Stud |
| 92 |
0318194 |
BUSHING |
| 94 |
0302474 |
WAHSER,Link |
| 95 |
0330179 |
WASHER This part replaces 0303304. |
| 96 |
0312977 |
BOW WASHER, Link to lever |
| 97 |
0318193 |
BUSHING |
| 98 |
0326642 |
LEVER, Shift rod This part replaces 0318539. |
| 99 |
0306012 |
BOW WASHER |
| 100 |
0908060 |
BOW WASHER, Shoulder screw This part replaces 0318202. |
| 101 |
0318245 |
LINK, Shift lever to bellcrank |
| 102 |
0385676 |
SHIFT LEVER & PIN ASSY |
| 103 |
0385697 |
BELLCRANK ASSY |
| 104 |
0320184 |
LINK, Shift lever to bellcrank |
| 105 |
0320185 |
SHIFT LEVER |
| 106 |
0386802 |
BELLCRANK ASSY |
| 0385758 |
0385758 |
CYLINDER & C'CASE ASSY |
