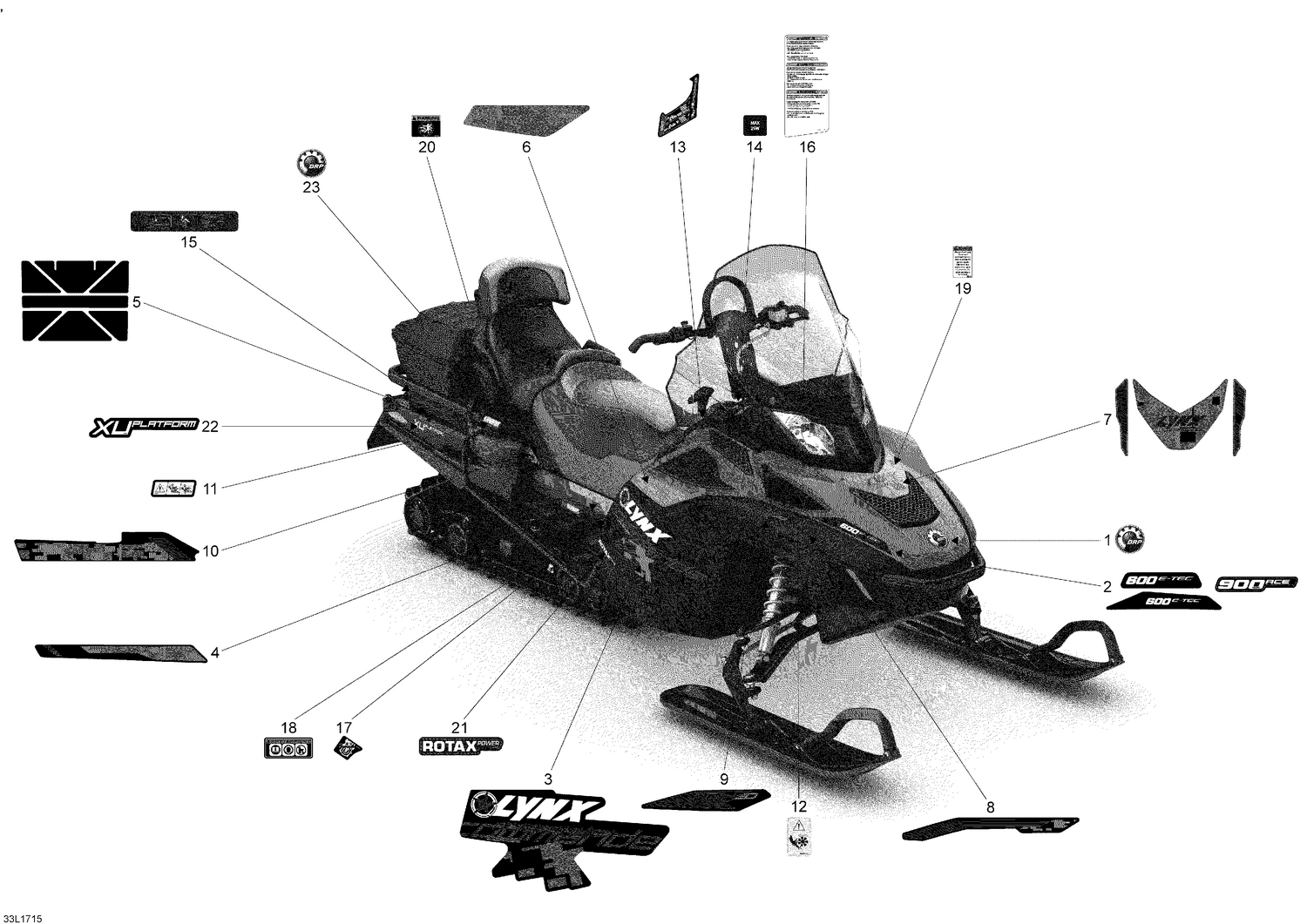

09- Decals 600 ETEC
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516008739 | Logo 68mm "BRP" This part replaces 516006888. |
| 2 | 516007120 | LH Hood Decal |
| 2 | 516007121 | RH Hood Decal |
| 3 | 516007123 | LH Side Panel Decal |
| 3 | 516007124 | RH Side Panel Decal |
| 4 | 516007125 | LH Frame Decal |
| 4 | 516007126 | RH Frame Decal |
| 5 | 516005120 | Top Tunnel Decal |
| 6 | 516007118 | LH Access Panel Decal |
| 6 | 516007119 | RH Access Panel Decal |
| 7 | 516007117 | Hood Decal |
| 8 | 516007113 | LH Bottom Pan Decal |
| 8 | 516007114 | RH Bottom Pan Decal |
| 9 | 516007115 | LH Bottom Pan Decal |
| 9 | 516007116 | RH Bottom Pan Decal |
| 10 | 516007127 | LH Storage Box Decal |
| 10 | 516007128 | RH Storage Box Decal |
| 11 | 516005111 | Instruction Decal, Back Seat Locking |
| 12 | 516003923 | WARNING DECAL - Call your local BRP dealership |
| 13 | 516004294 | Instruction Decal |
| 14 | 516003918 | Power Outlet Decal (25W) |
| 15 | 516003886 | WARNING DECAL, TOWING - Call your local BRP dealership |
| 16 | 516006403 | Instruction/Warning Decal, FI/SWE/EN |
| 17 | 516003925 | Checking Label, Transmission |
| 18 | 516002703 | Decal, Europe |
| 19 | 516005583 | WARNING DECAL, INJECTORS - Call your local BRP dealership |
| 20 | 516007584 | Rotating Track Warning Decal |
| 21 | 516006331 | Rotax Power Decal |
| 22 | 516005954 | XU Plateform Decal |
| 23 | 516008738 | Logo 48mm "BRP" This part replaces 516006887. |
