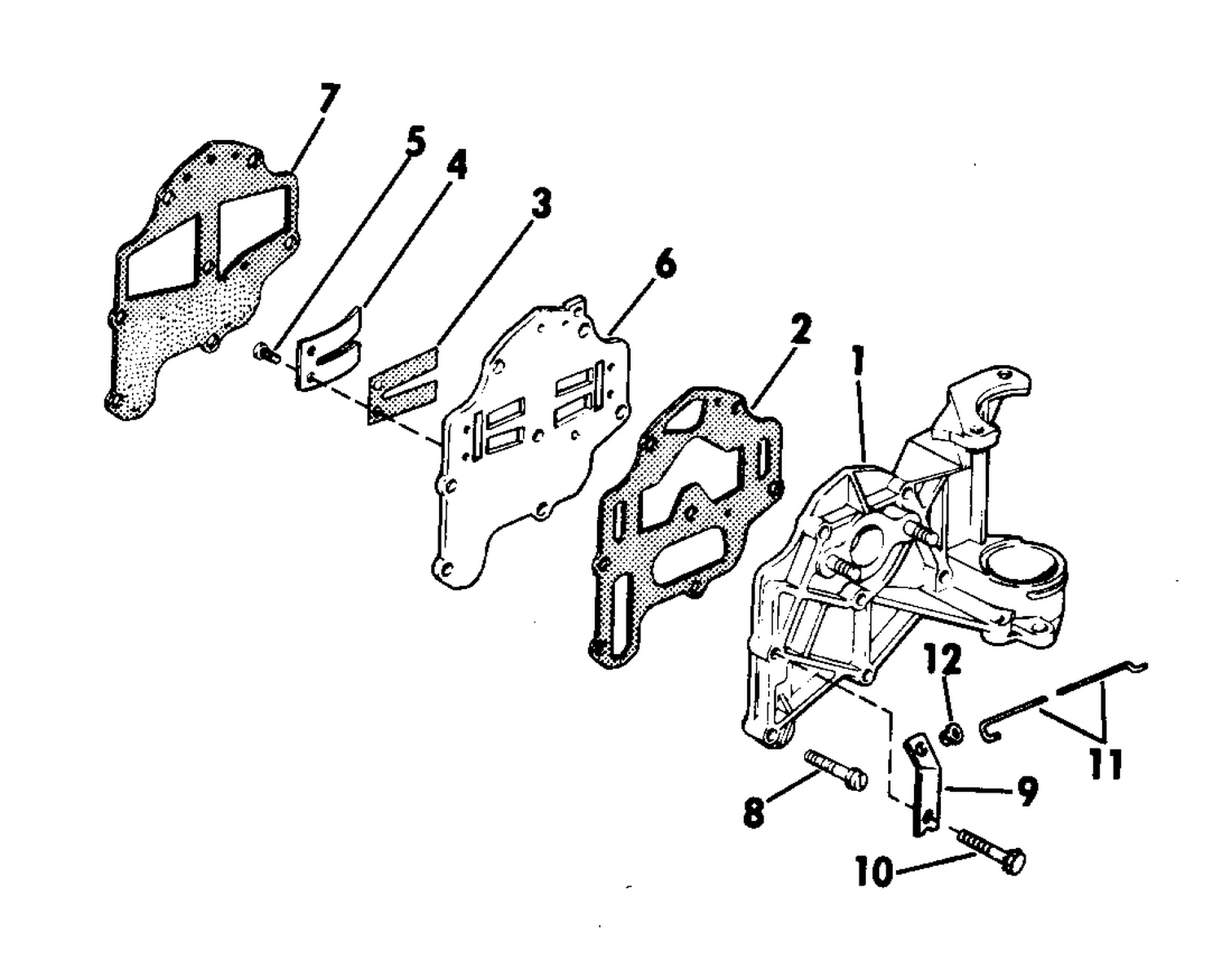

INTAKE MANIFOLD
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0388449 | MANIFOLD, Intake This part replaces 0385836. |
| 2 | 0320982 | GASKET, Manifold This part replaces 0304116. |
| 3 | 0202667 | LEAF |
| 4 | 0202668 | STOP, Leaf |
| 5 | 0303761 | SCREW |
| 6 | 0385084 | LEAF PLATE ASSY |
| 7 | 0317212 | GASKET, Leaf valve |
| 8 | 0305346 | SCREW |
| 9 | 0318448 | SUPPORT |
| 10 | 0318464 | PLUG, Idle restriction |
| 11 | 0318466 | WIRE, Lever arm |
| 0385082 | 0385082 | LEAF PLATE ASSY |
