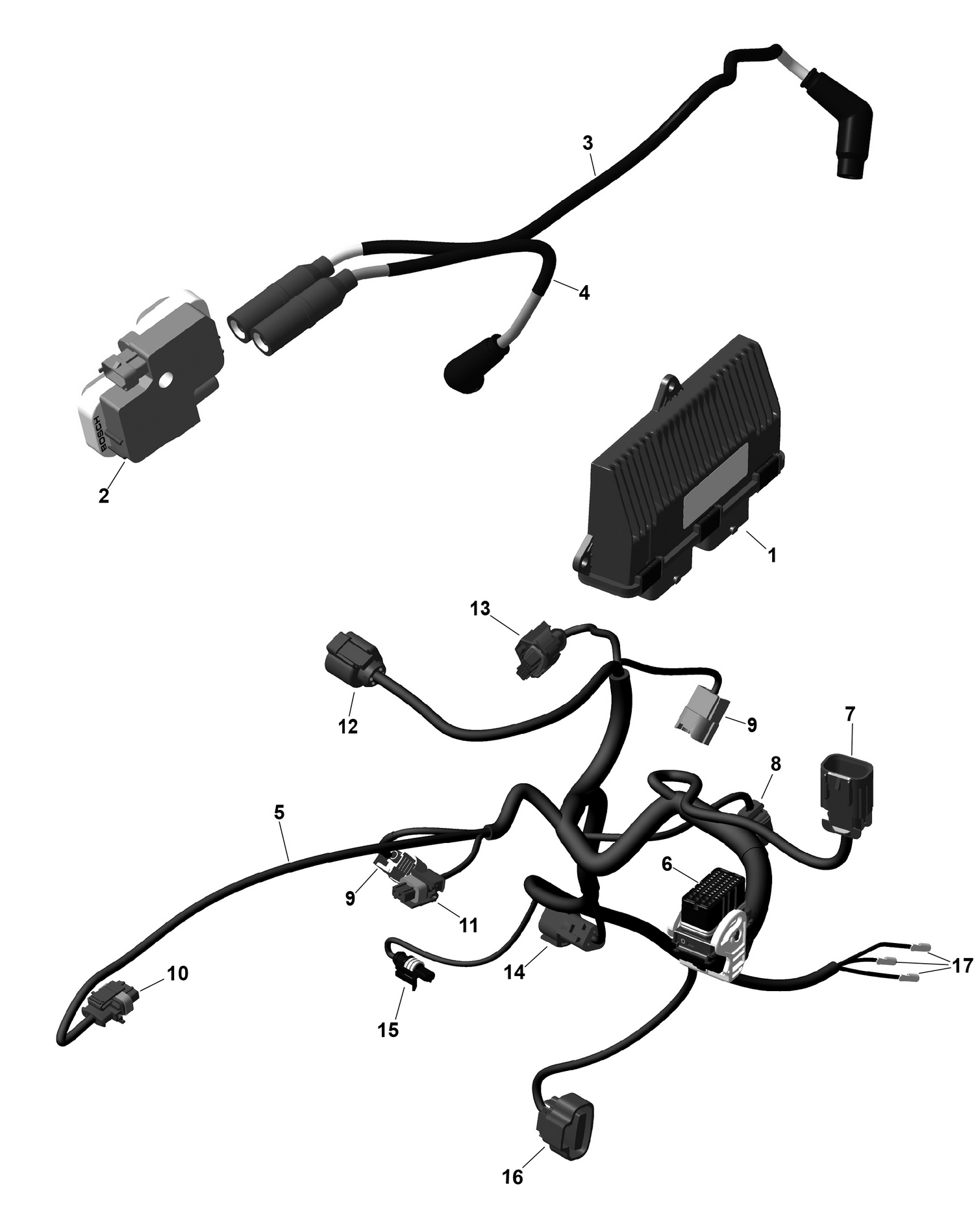

01- ROTAX - Engine Harness And Electronic Module
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 278001546 | Ignition Coil |
| 3 | 420464162 | Spark Plug Cable, 600 mm, PTO SAE |
| 4 | 420464152 | Spark Plug Cable, 315 mm, MAG SAE |
| 6 | 710000568 | Housing |
| 7 | XXX | Not Available As Spare Parts |
| 8 | 278001005 | Male Housing, 2 Circuits |
| 9 | XXX | Not Available As Spare Parts |
| 10 | 278000997 | Male Housing, 3 Circuits |
| 11 | 278001005 | Male Housing, 2 Circuits |
| 12 | 515177406 | Female Housing |
| 13 | 515176410 | Male Connector |
| 14 | 278002378 | Male Housing This part replaces 409207000. |
| 15 | 278001012 | Male Housing, 1 Circuit |
