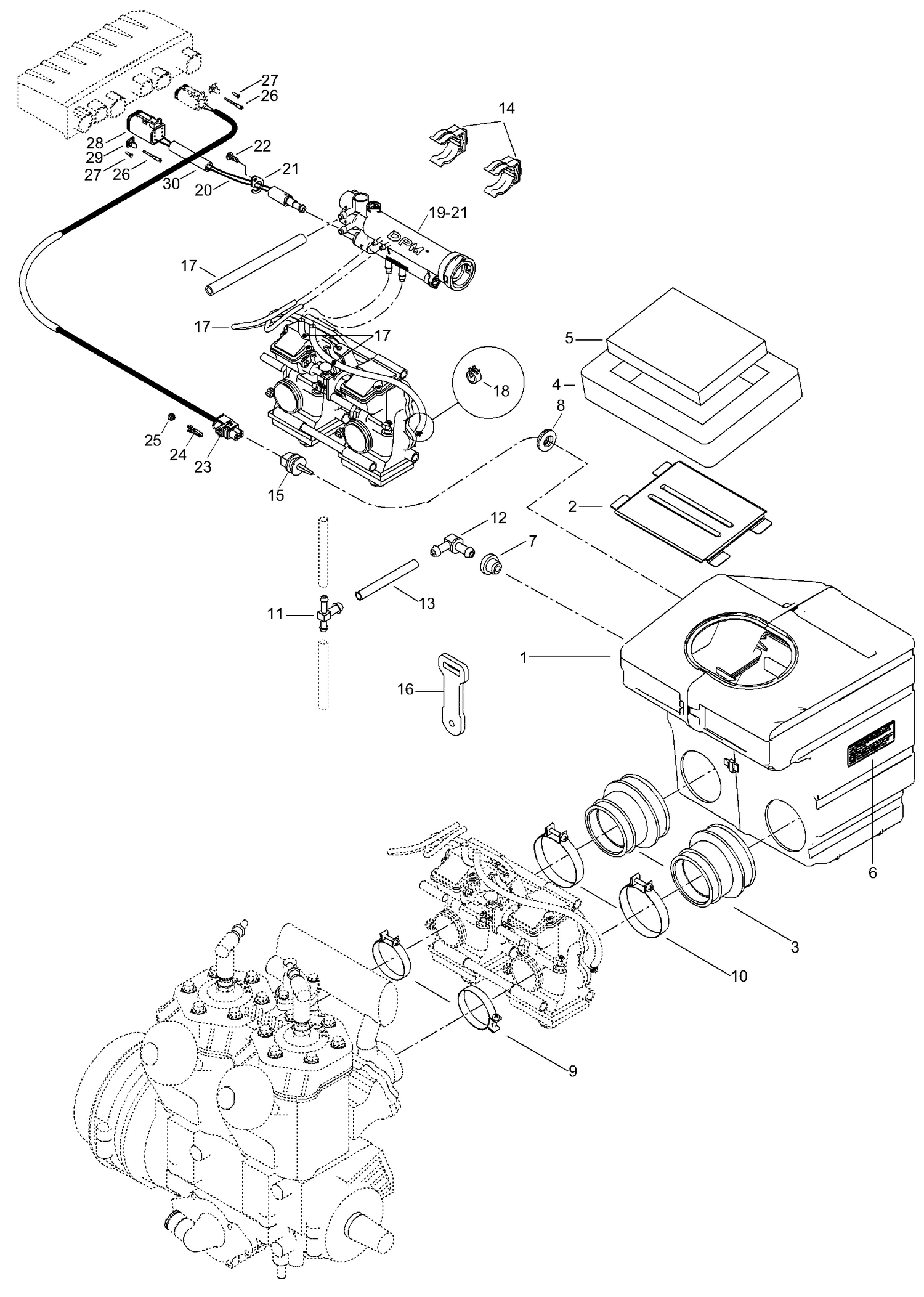

| Ref | Part Number | Description |
|---|
| 2 |
508000004 |
INTAKE GRILL - Call your local BRP dealership |
| 3 |
508000092 |
Intake adaptor |
| 4 |
508000099 |
Lower foam |
| 5 |
508000154 |
Air filter |
| 6 |
516001191 |
Caution Label, Air Intake |
| 7 |
513032908 |
Grommet |
| 8 |
Not |
Available As Spare Part - Grommet - DOES NOT APPLY TO THIS MODEL |
| 9 |
512059835 |
Clamp This part replaces 512059305. |
| 10 |
27046 |
Clamp |
| 11 |
572045500 |
T-fitting |
| 12 |
414580600 |
Connector |
| 13 |
39038 |
Hose 6.5/9.5 |
| 14 |
Not |
Available As Spare Part - Support - DOES NOT APPLY TO THIS MODEL |
| 15 |
Not |
Available As Spare Part - Air temperature sensor - DOES NOT APPLY TO THIS MODEL |
| 16 |
512059372 |
CARBURETOR LATCH - Call your local BRP dealership |
| 17 |
Not |
Available As Spare Part - Hose - DOES NOT APPLY TO THIS MODEL |
| 18 |
414554800 |
Clamp |
| 19 |
Not |
Available As Spare Part - Norma gear clamp - DOES NOT APPLY TO THIS MODEL |
| 20 |
Not |
Available As Spare Part - Harness assy - DOES NOT APPLY TO THIS MODEL |
| 21 |
Not |
Available As Spare Part - Solenoid lock - DOES NOT APPLY TO THIS MODEL |
| 22 |
Not |
Available As Spare Part - Screw K40x10 - DOES NOT APPLY TO THIS MODEL |
| 23 |
Not |
Available As Spare Part - Connector housing - DOES NOT APPLY TO THIS MODEL |
| 24 |
Not |
Available As Spare Part - Female terminal - DOES NOT APPLY TO THIS MODEL |
| 25 |
Not |
Available As Spare Part - Seal - DOES NOT APPLY TO THIS MODEL |
| 26 |
278000632 |
Female terminal |
| 27 |
293000052 |
Sealing Cap |
| 28 |
515175673 |
Connector housing |
| 29 |
Not |
Available As Spare Part - Lock - DOES NOT APPLY TO THIS MODEL |
