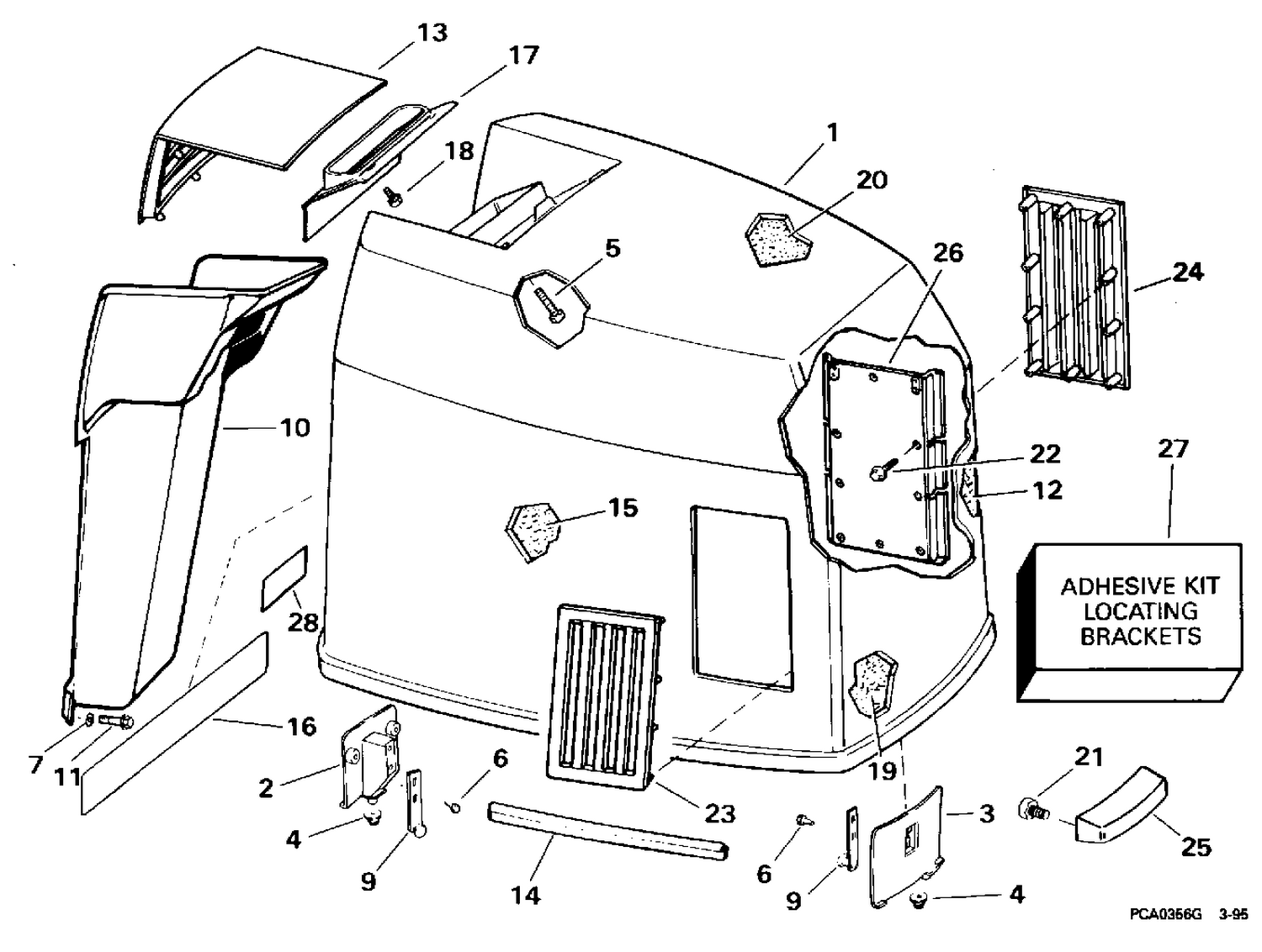

| Ref | Part Number | Description |
|---|
| 1 |
0435968 |
ENGINE COVER ASSY. |
| 1 |
0436593 |
ENGINE COVER ASSY., 300 |
| 1 |
0436804 |
ENGINE COVER ASSY., 300 |
| 1 |
0437724 |
ENGINE COVER AY., 300 |
| 2 |
0336992 |
BRACKET, Locating, rear |
| 9 |
0397630 |
HOOK |
| 10 |
0336365 |
BAFFLE, Air intake |
| 12 |
0341495 |
SOUND BLANKET, Port |
| 12 |
0341498 |
SOUND BLANKET, Port, 300 |
| 13 |
0328009 |
TILT HANDLE |
| 14 |
0912173 |
SEAL, Engine cover |
| 15 |
0341500 |
SOUND BLANKET, Stbd. |
| 15 |
0341540 |
SOUND BLANKET, Stbd., 300 |
| 16 |
0211813 |
APPLIQUE, Lower steering, 300 |
| 16 |
0212239 |
APPLIQUE, Counter rotation |
| 17 |
0330012 |
BAFFLE |
| 19 |
0341497 |
SOUND BLANKET, Front |
| 20 |
0341499 |
SOUND BLANKET, Top |
| 21 |
0334004 |
SCREW, Hook to bracket |
| 23 |
0330090 |
LOUVER, Engine cover, port |
| 24 |
0330091 |
LOUVER, Engine cover, port |
| 25 |
0332607 |
LIFT HANDLE |
| 25 |
0332608 |
LIFT HANDLE |
| 26 |
0328608 |
BRACKET, Louver mounting., 300 |
| 27 |
0431929 |
KIT ADHÉSIF, supports d'emplacement |
| 28 |
0211076 |
DECAL, Counter rotation |
| 0436350 |
0436350 |
DECAL SET |
