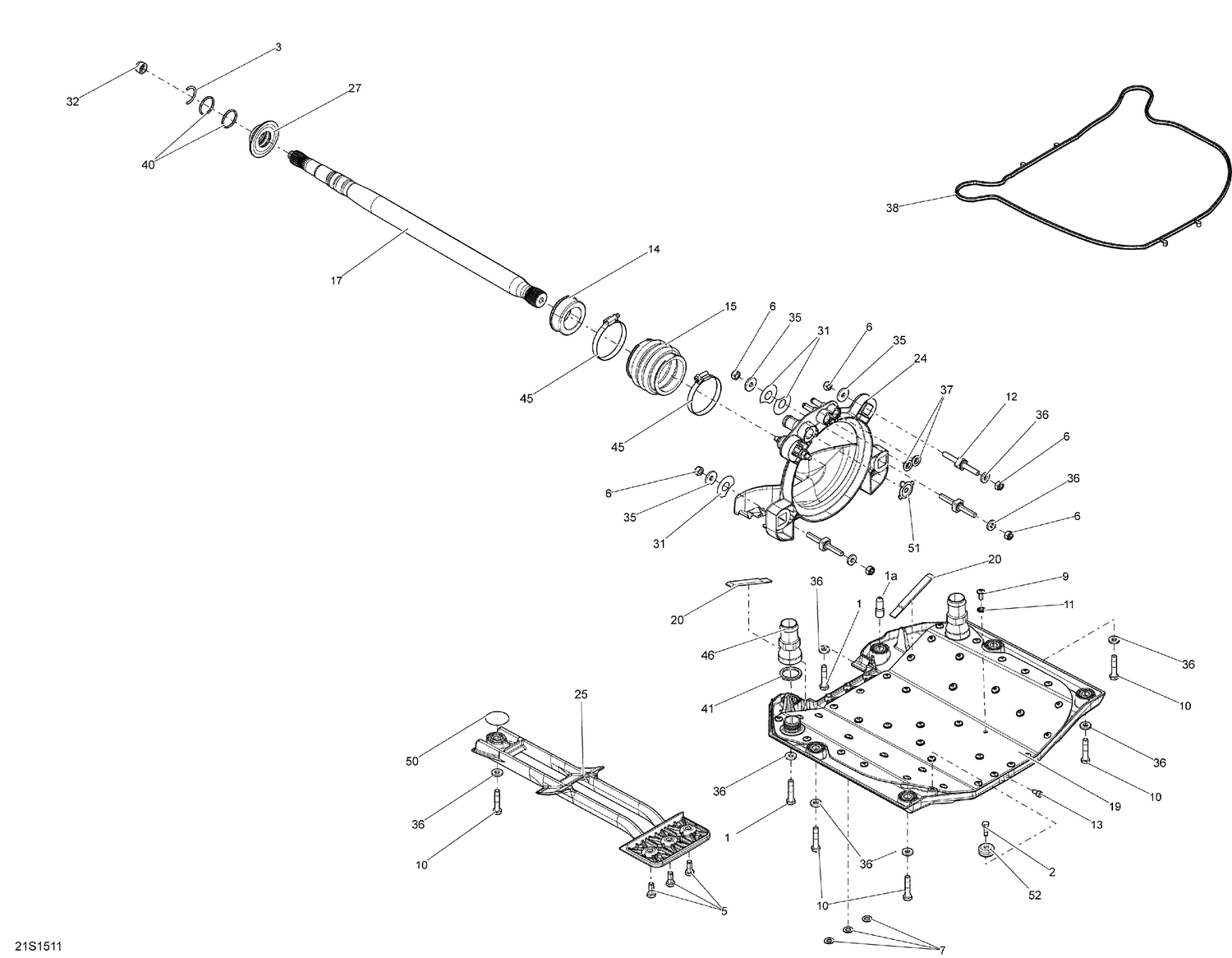

05- Propulsion _21S1511
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 207362060 | Hex. Screw M6 X 20, Scotch Grip |
| 3 | 271001577 | C-Clip |
| 5 | 207381660 | Hex. Screw M8 X 16, Scotch Grip |
| 6 | 232581200 | Hex. Elastic Nut M8 Brass |
| 7 | 234081600 | Stainless, Flat Washer 8 mm |
| 9 | 250000384 | Torx Screw M6 X 14 |
| 10 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 11 | 250200114 | Sealing Washer |
| 12 | 250300046 | Square Stud |
| 13 | 250500005 | Socket Drain Plug M6 X 12 |
| 15 | 271001933 | Bellow |
| 17 | 271001719 | Drive Shaft |
| 19 | 271001750 | Riding Plate Ass'y |
| 20 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 25 | 271001971 | Pump Grate This part replaces 271001867. |
| 27 | 295501204 | Carbon Ring Kit This part replaces 271001892. |
| 31 | 272000053 | Shim 0.3 mm |
| 32 | 272000173 | Drive Shaft Plug |
| 35 | 279000336 | Flat Washer This part replaces 279000164. |
| 36 | 293050001 | Flat Washer M8.5 x 18 |
| 37 | 293250084 | Watertight Seal |
| 38 | 293250235 | Seal |
| 40 | 293300107 | O-Ring |
| 41 | 293300121 | O-Ring |
| 45 | 293650079 | Norma Clamp |
| 46 | 293710111 | Straight Plastic Fitting |
| 50 | 293830047 | PROTECTOR DISK - Call your local BRP dealership |
| 51 | 271002029 | Reducer, Green This part replaces 271001903. |
