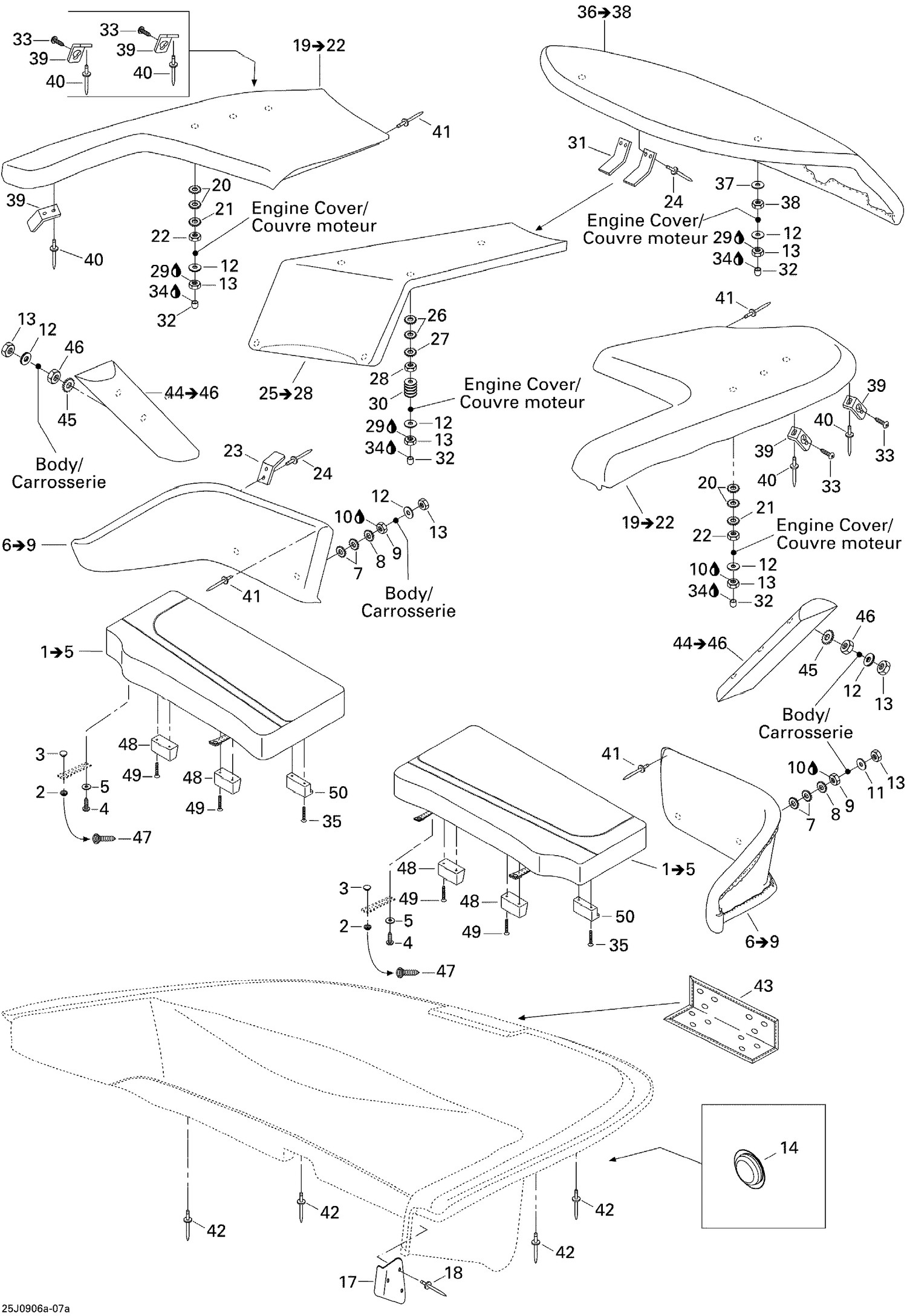

| Ref | Part Number | Description |
|---|
| 2 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 3 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 4 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 5 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 7 |
234381608 |
TOOTHED LOCK WASHER - Call your local BRP dealership |
| 8 |
234461608 |
External Serrated Lock Washer 6 mm |
| 9 |
204100060 |
Hex. Jam Nut |
| 10 |
293800060 |
Loctite 243, 10 ml |
| 11 |
204100139 |
WASHER-FENDER/S.S. - Call your local BRP dealership |
| 12 |
204100089 |
FLAT WASHER 9/32? - Call your local BRP dealership |
| 13 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 14 |
291000279 |
Black Plug |
| 17 |
204613739 |
Upholstery Cap, Port Side |
| 17 |
204613740 |
Upholstery Cap, Starboard |
| 18 |
293150037 |
Avdel Rivet 3/16" |
| 20 |
234381608 |
TOOTHED LOCK WASHER - Call your local BRP dealership |
| 21 |
234461608 |
External Serrated Lock Washer 6 mm |
| 22 |
204100060 |
Hex. Jam Nut |
| 23 |
204611531 |
RETAINING CLIP - Call your local BRP dealership |
| 24 |
293150008 |
Pop Rivet 3/16" |
| 26 |
234381608 |
TOOTHED LOCK WASHER - Call your local BRP dealership |
| 27 |
234461608 |
External Serrated Lock Washer 6 mm |
| 28 |
204100060 |
Hex. Jam Nut |
| 29 |
293800060 |
Loctite 243, 10 ml |
| 30 |
211200029 |
FLAT WASHER, PLASTIC - Call your local BRP dealership |
| 31 |
204611597 |
SUNDECK PLATE - Call your local BRP dealership |
| 32 |
204130008 |
Plastic Cap, White |
| 33 |
204100114 |
SCREW-PAN HD.#10 X 3/4 BLACK - Call your local BRP dealership |
| 35 |
204100039 |
SCREW 1/4?-20 X 2? - Call your local BRP dealership |
| 37 |
234461608 |
External Serrated Lock Washer 6 mm |
| 38 |
204100060 |
Hex. Jam Nut |
| 39 |
204130029 |
Slotted Keyhold Clip |
| 40 |
293150285 |
Pop RIvet 1/8 X ,375 This part replaces 293150006. |
| 41 |
293150013 |
Pop Rivet 3/16" |
| 42 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 43 |
204612869 |
Hinge Cover |
| 45 |
234461608 |
External Serrated Lock Washer 6 mm |
| 46 |
204100060 |
Hex. Jam Nut |
| 47 |
202000159 |
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership |
| 48 |
204611805 |
LATCH - Call your local BRP dealership |
| 49 |
204100081 |
SCREW #8 X 1-1/4? - Call your local BRP dealership |
