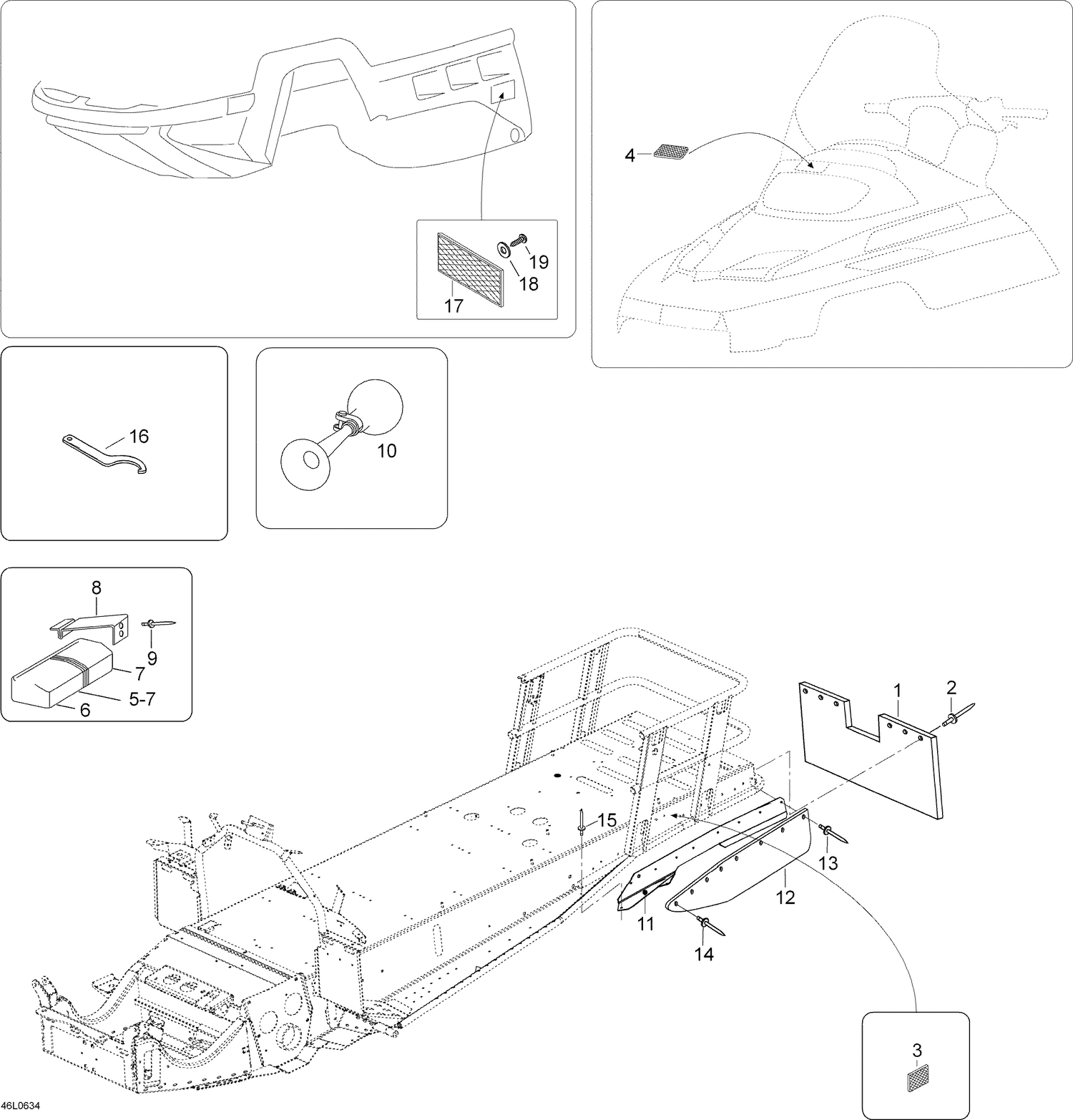

| Ref | Part Number | Description |
|---|
| 1 |
535437 |
Snowquard |
| 2 |
36036 |
Rivet |
| 3 |
21121 |
REFLECTOR (YELLOW) - Call your local BRP dealership |
| 4 |
21060 |
Reflector, vit |
| 6 |
A50121179000 |
TOOL BOX - Call your local BRP dealership This part replaces 708200041. |
| 7 |
572036400 |
COVER-BOX - Call your local BRP dealership |
| 8 |
5346728 |
Spring plate |
| 9 |
36108 |
Rivet |
| 10 |
549011291 |
Horn This part replaces 21003. |
| 11 |
605251248 |
LH SIDE SNOW GUARD - Call your local BRP dealership |
| 11 |
605251249 |
RH SIDE SNOW GUARD - Call your local BRP dealership |
| 12 |
5142828 |
Side snowquard |
| 13 |
36097 |
Rivet Profix 4.0x13 Al musta(1=50pcs) - Call your local BRP dealership |
| 14 |
36891 |
RIVET - Call your local BRP dealership |
| 15 |
36005 |
Rivet |
| 16 |
529035582 |
ADJUSTMENT WRENCH - Call your local BRP dealership |
| 17 |
414510200 |
REFLECTOR, AMBER - Call your local BRP dealership |
| 18 |
20018 |
Rerrated lock washer A5,3 |
