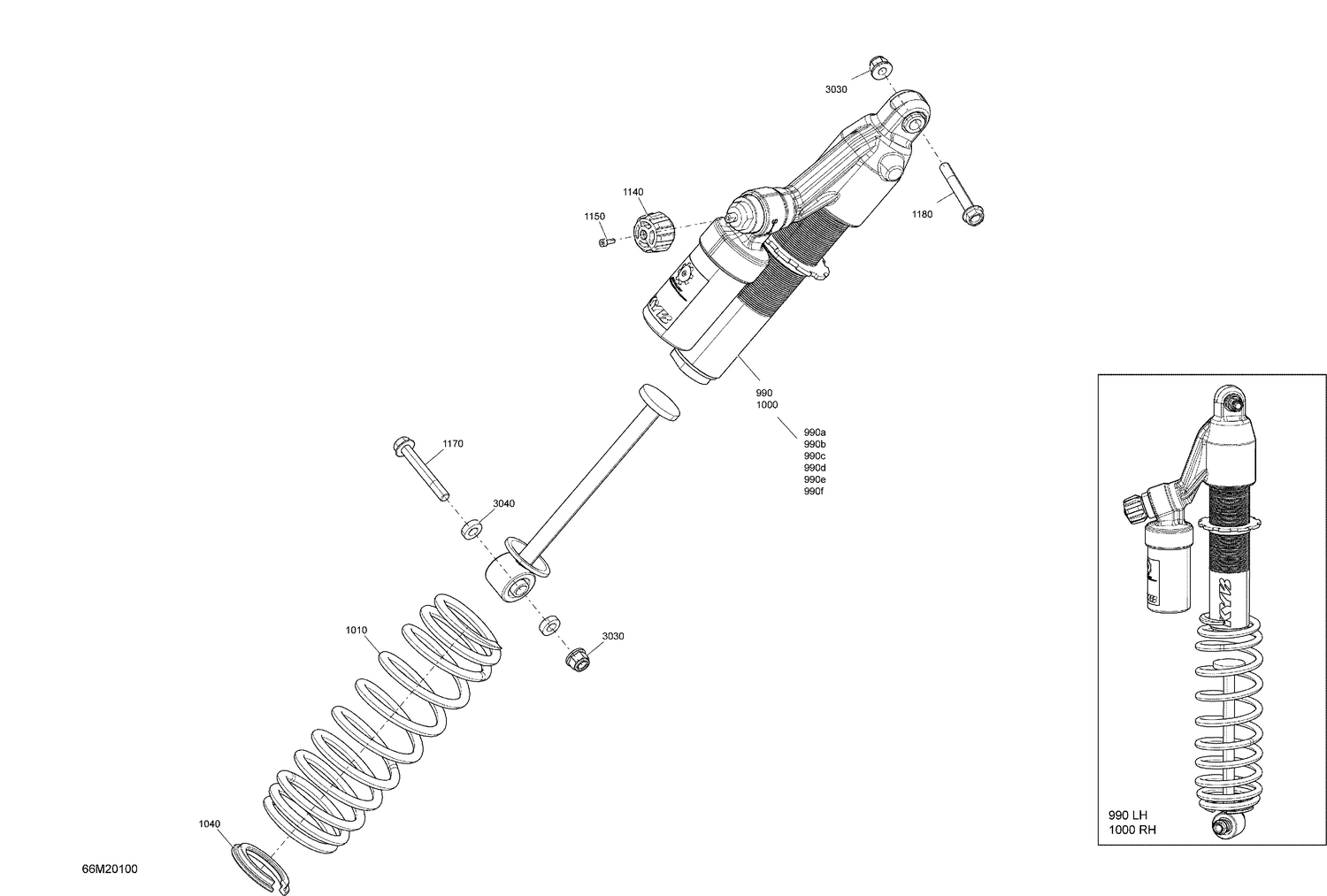

07- Suspension, Front - Shocks
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 990a | 415093807 | O-Ring |
| 990b | 415093806 | Piston Ring |
| 990c | 505070398 | Air Valve |
| 990d | 505070399 | Screw |
| 990e | 505070400 | O-Ring |
| 990f | 415093804 | O-Ring |
| 1010 | 505074309 | Deep Black, Spring |
| 1040 | 503194270 | Spring Stopper |
| 1140 | 503193033 | Shock Adjuster Knob |
| 1150 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 1170 | 250000824 | Hex. Flange Screw M8 X 58 |
| 1180 | 250000824 | Hex. Flange Screw M8 X 58 |
| 3030 | 233281466 | Elastic Flange Nut M8 |
