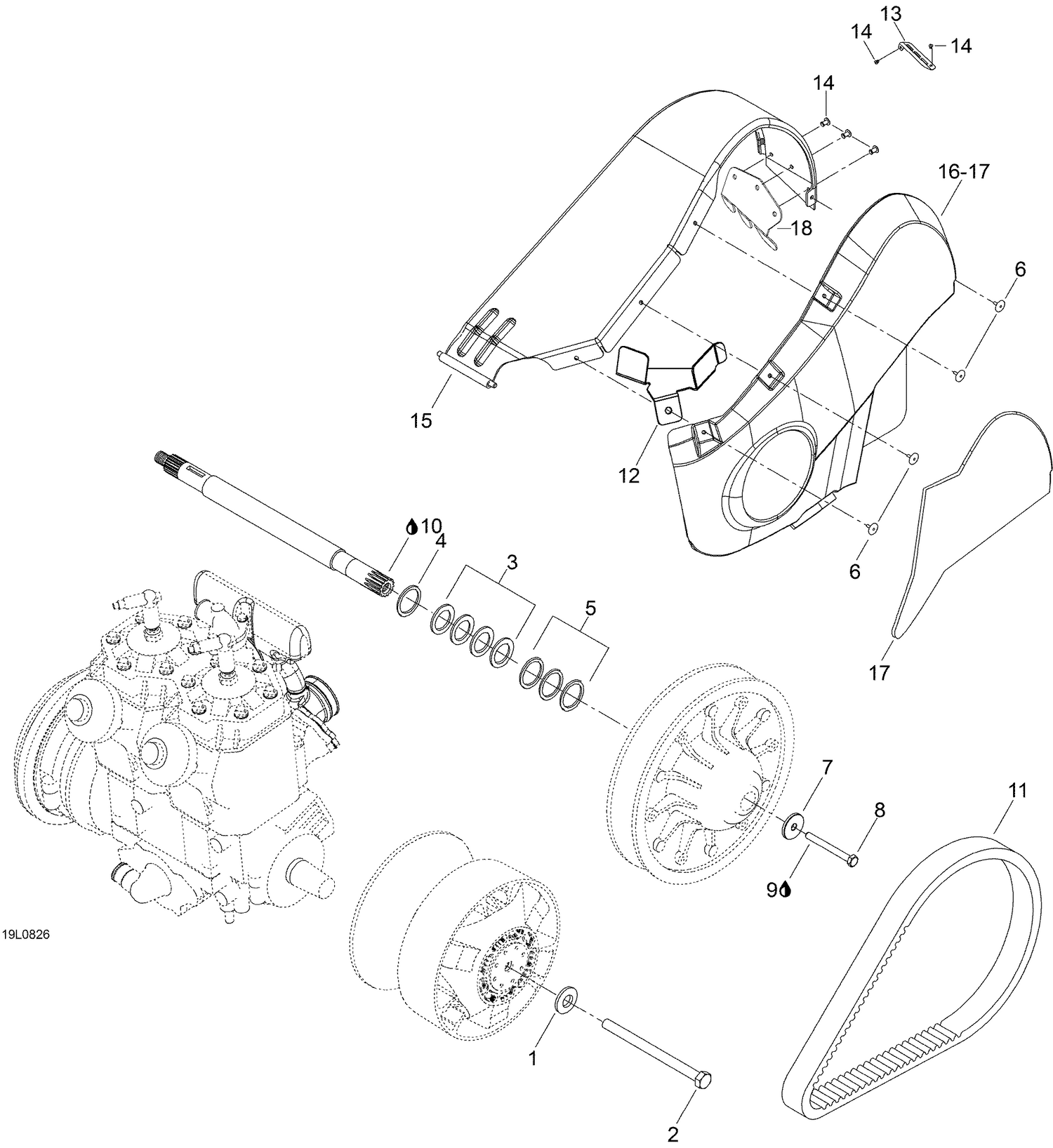

05- Pulley System
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 20110 | Jousialusl. kartiom. M14 M14 D |
| 2 | 417120000 | Kytkimen kiinn. pultti M14 |
| 3 | 417300252 | Spacer |
| 4 | 417300265 | Spacer |
| 5 | 504112000 | Justering bricka |
| 6 | 36036 | Vetoniitti |
| 7 | 517302322 | Vahvike aluslevy |
| 8 | 207089044 | Hex. Screw M8 x 90 This part replaces 40264. |
| 9 | 293800060 | Liima Loctite 243, 10ml |
| 10 | 293800070 | Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 11 | 417300586 | Drive Belt This part replaces 417300197. |
| 12 | 605352707 | Support, air intake silencer |
| 13 | 518323105 | PLATE, BLACK - Call your local BRP dealership |
| 14 | 36108 | Rivet steel 4.8x8 ZN bright |
| 15 | 417300213 | BELT GUARD - Call your local BRP dealership |
| 17 | 417300246 | Stoppning |
