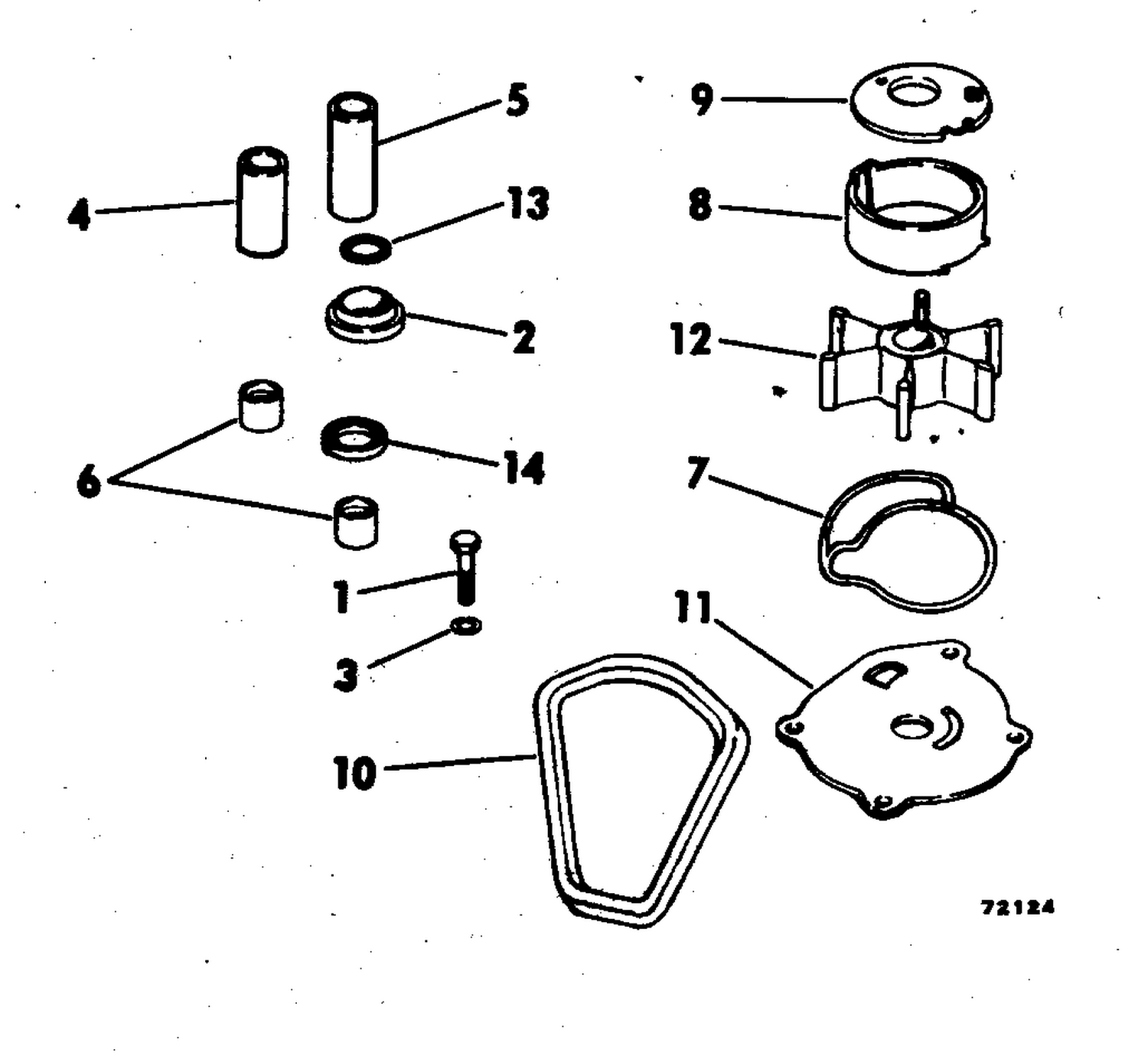

CHROME PUMP KITS 85,115 HP 20 INCH TRANSOM
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0323626 | SCREW This part replaces 0302873. |
| 2 | 0317844 | GROMMET |
| 3 | 0329241 | RONDELLE This part replaces 0305981. |
| 4 | 0314081 | GUIDE WATER TUBE |
| 5 | 0314765 | GUIDE, Water tube |
| 6 | 0314832 | GROMMET, Water tube |
| 7 | 0314880 | SEAL |
| 8 | 0321651 | LINER |
| 9 | 0318433 | PLATE |
| 10 | 0314937 | SEAL |
| 11 | 0318365 | PLATE |
| 12 | 0385528 | IMPELLER ASSEMBLY |
| 0388283 | 0388283 | CHROME PUMP KIT |
