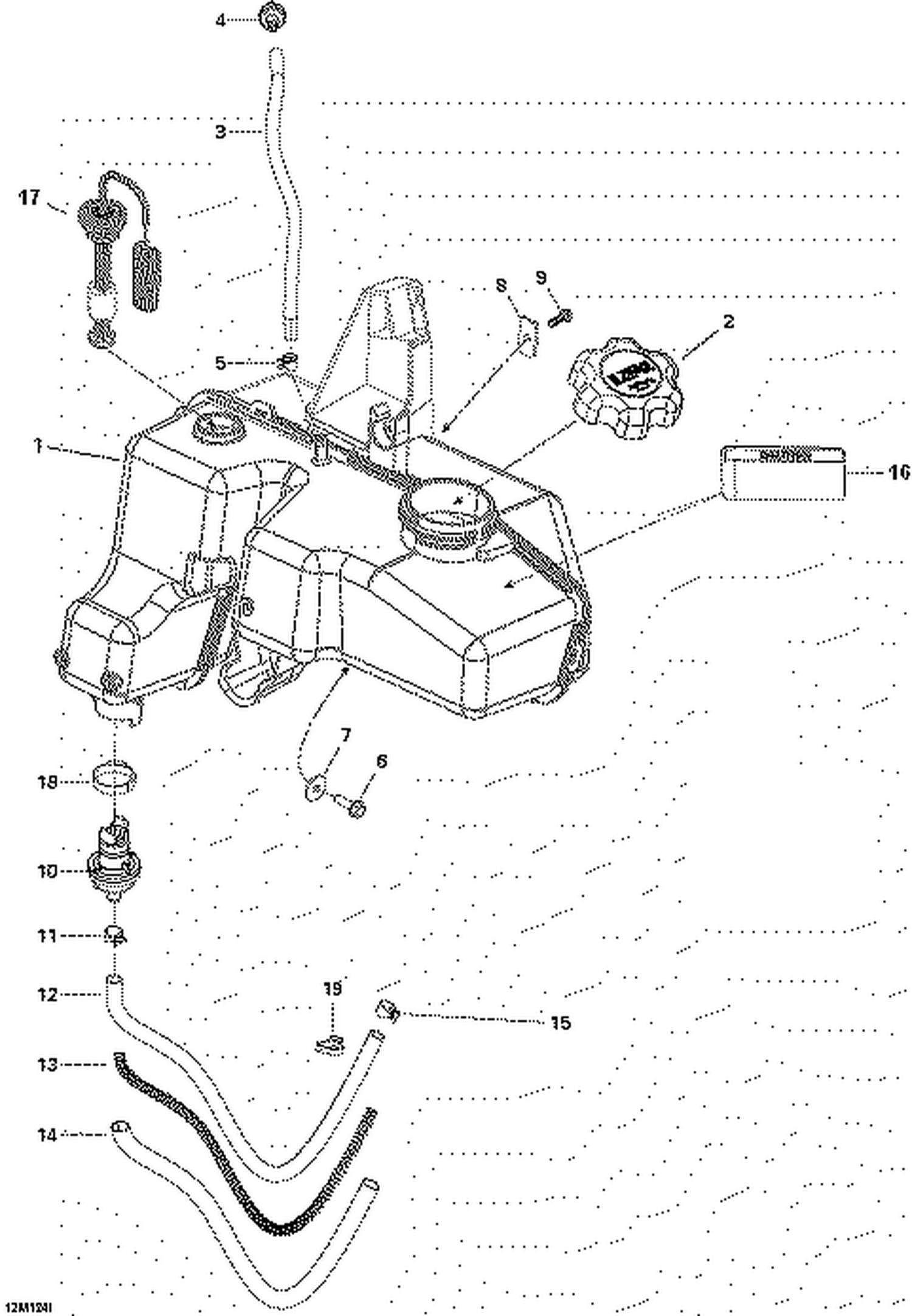

02- Oil System
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 519000341 | Oil Tank This part replaces 519000255. |
| 2 | 519000194 | CAP - Call your local BRP dealership |
| 3 | 219704410 | Polyurethane Hose 10000Mm Long |
| 4 | 275500398 | Check Valve |
| 5 | 414554800 | Spring Clamp |
| 6 | 250000331 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 7 | 224061201 | Flat Washer |
| 8 | 519000179 | Bracket |
| 9 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 10 | 519000242 | Oil Filter |
| 11 | 414415200 | Spring Clamp |
| 12 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 13 | 519000196 | Spring |
| 14 | 219704407 | Tubing 10 MM 1000MM Long |
| 15 | 414420700 | Spring Clamp |
| 16 | 516004720 | WARNING DECAL, BRP XPS OIL - Call your local BRP dealership |
| 17 | 515176978 | Level Sensor |
| 18 | 293650099 | Crimp Clamp |
