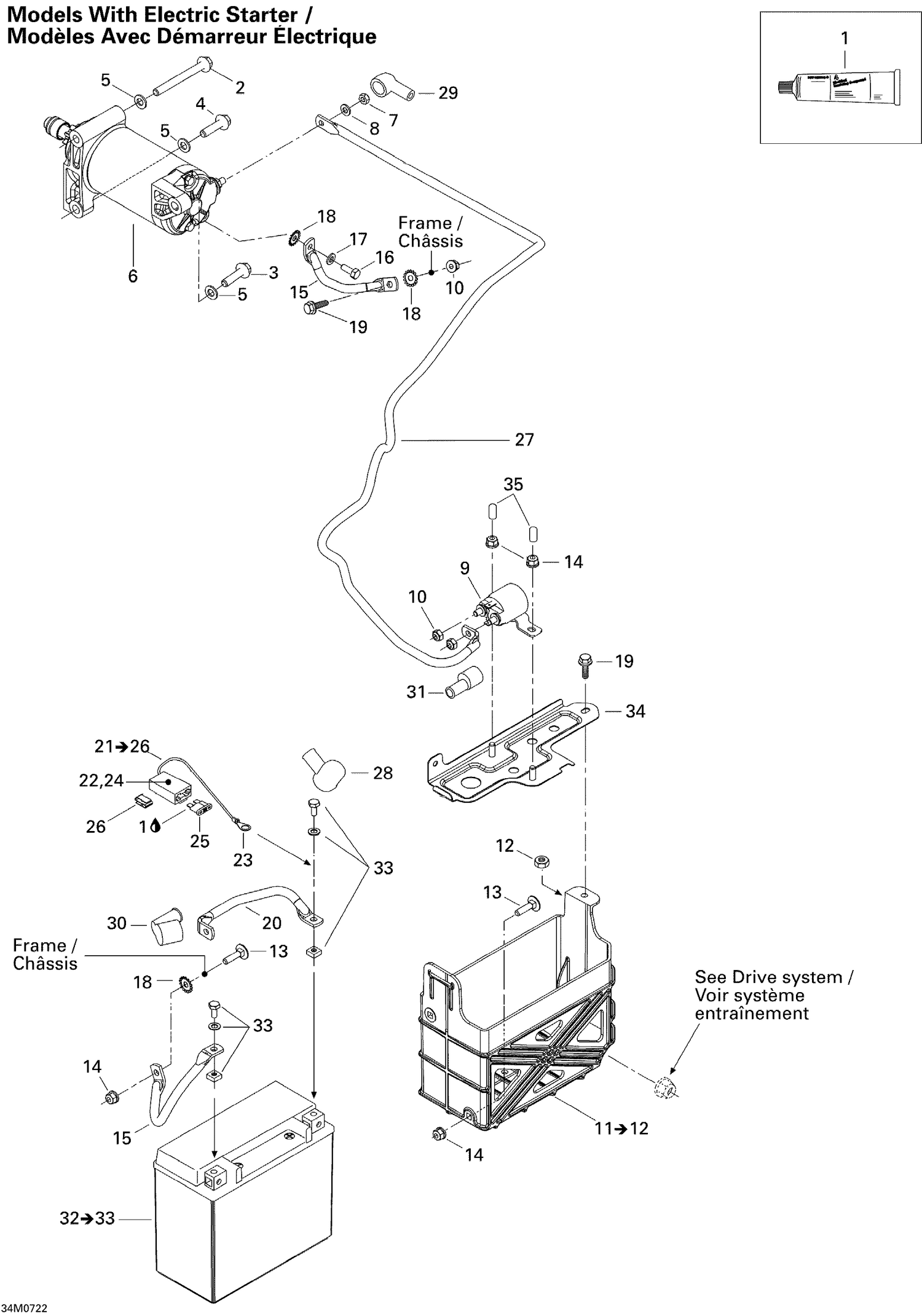

10- Battery And Starter
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 2 | 207587544 | Hex. Flange Screw M8 X 75, Scotch Grip |
| 3 | 207583044 | Hex. Flange Screw M8 X 30, Scotch Grip |
| 4 | 207583044 | Hex. Flange Screw M8 X 30, Scotch Grip |
| 5 | 250200008 | Flat Washer With Teflon 8 mm |
| 6 | 515176133 | Electric Starter Ass'y |
| 7 | 232561414 | Elastic Stop Nut M6 |
| 8 | 234061410 | Flat Washer 6 mm |
| 9 | 515176011 | Starter Relay |
| 10 | 232561414 | Elastic Stop Nut M6 |
| 12 | 232561414 | Elastic Stop Nut M6 |
| 13 | 207762544 | Carriage Bolt M6 X 25 |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 15 | 515175749 | Ground Wire |
| 16 | 207361644 | Hex. Screw M6 X 16, Scotch Grip |
| 17 | 234061410 | Flat Washer 6 mm |
| 18 | 250200041 | Lock Washer Serrated M6 |
| 19 | 207662044 | Hex. Flange Screw M6 X 20 |
| 20 | 515175904 | Battery Wire |
| 22 | 409004200 | Female Terminal |
| 23 | 278000992 | Open Barrel |
| 24 | 409004000 | Fuse Holder |
| 25 | 410917200 | Fuse, 30 Amperes |
| 26 | 409014200 | CLIP - Call your local BRP dealership |
| 27 | 515175905 | BATTERY WIRE - Call your local BRP dealership |
| 28 | 570151000 | Protection Cap |
| 29 | 278001771 | PROTECTOR CAP - Call your local BRP dealership |
| 30 | 570064200 | PROTECTION CAP - Call your local BRP dealership |
| 31 | 515175919 | Protector Cap |
| 33 | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 34 | 515175735 | BATTERY STRIP - Call your local BRP dealership |
