Home / BRP / Can-Am 3-Wheel Vehicles / 2024 / 002 - RT Series / 001 - RT - North America, 2024 / North America - RT - B2RA - STD - Petrol, 2024 000B2RA00 / 07- Body - Skid Plate

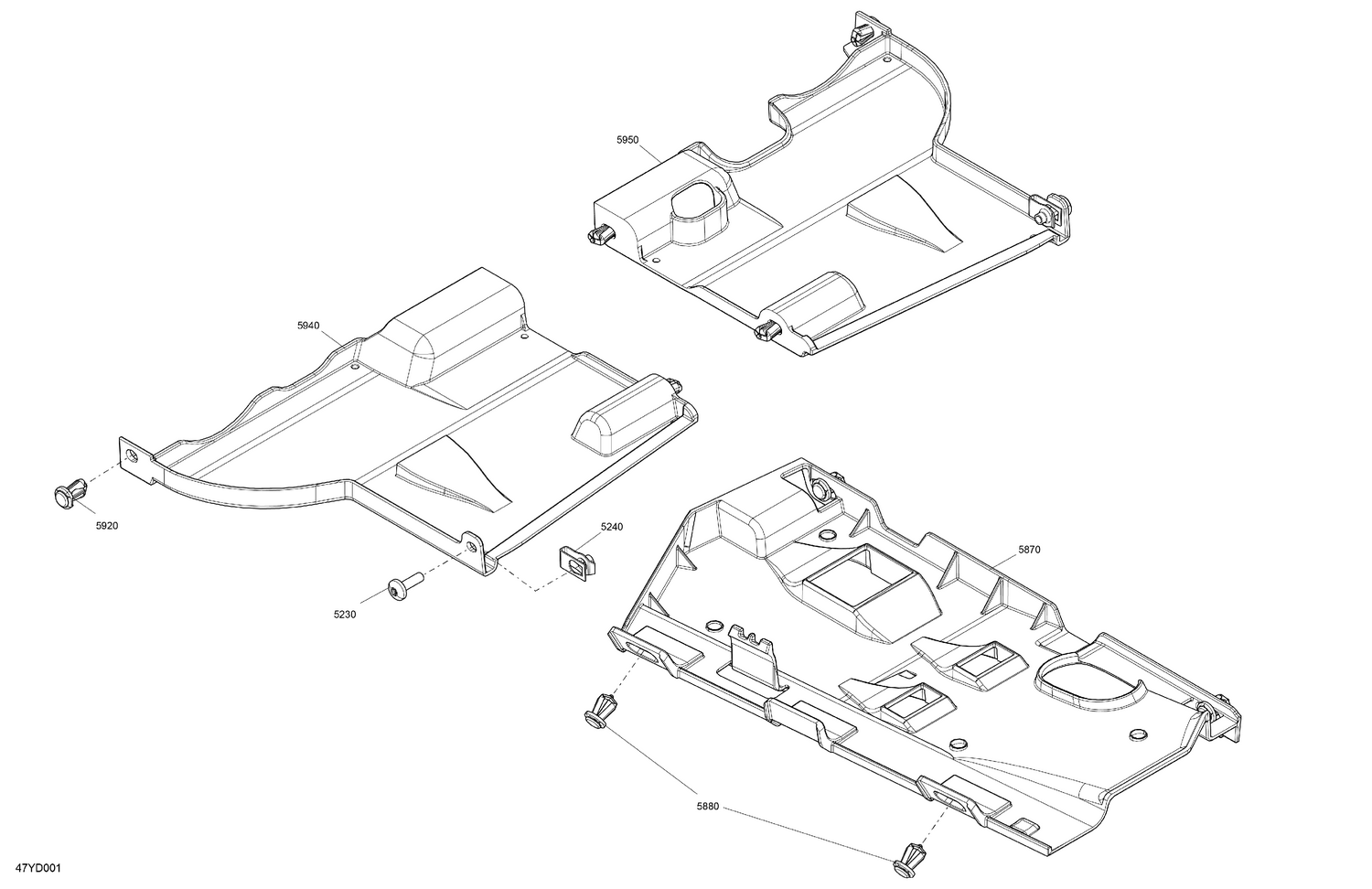

07- Body - Skid Plate

07- Body - Skid Plate

Parts (6)

RefPart NumberDescription
5230 250000705 Torx Truss Screw M6 X 20
5240 250100198 Panel Nut M6 X 1.0
5870 705014742 LH Deflector Panel
5880 293150230 Tuflok Plastic Rivet
5920 293150230 Tuflok Plastic Rivet
5940 705005438 LH Skid Plate
