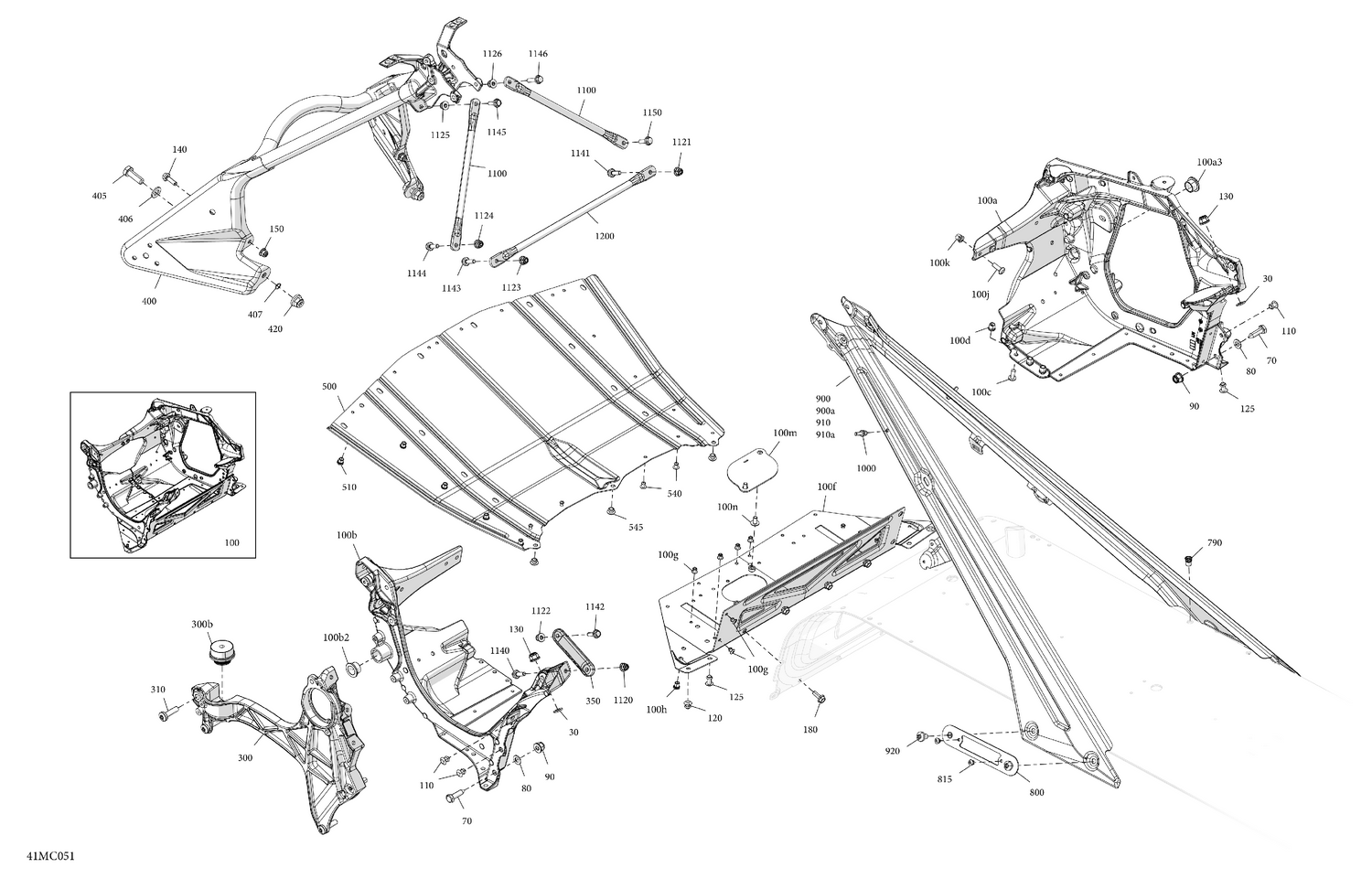

06- Frame - System - Front Section
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 234081410 | Flat Washer 8 mm |
| 70 | 250000942 | Hex Screw M8 X 30 |
| 80 | 234081410 | Flat Washer 8 mm |
| 90 | 233281414 | Hex. Flange Elastic Nut M8 |
| 100a3 | 505072690 | Leg Bushing |
| 100b2 | 505072690 | Leg Bushing |
| 100c | 293150148 | Rivet Magna-Grip 6,4 X 50,8 |
| 100d | 293150149 | Collar Huck Magna-Grip 6.4 |
| 100f | 518332715 | Bottom Plate |
| 100g | 293150203 | Rivet Avibulb 3/16 |
| 100h | 293450268 | Insert M5 X 0.8 |
| 100j | 293150148 | Rivet Magna-Grip 6,4 X 50,8 |
| 100k | 293150149 | Collar Huck Magna-Grip 6.4 |
| 100m | 518329454 | Oil Plate |
| 100n | 250000767 | Torx Truss Screw M6 X 12 |
| 110 | 293150266 | Ornit Rivet 6,5 X 14.5 |
| 120 | 293150265 | Rivet Ornit 6,5 X 12.5 |
| 125 | 293150268 | Rivet Ornit 6,5 X 18.5 |
| 130 | 233281414 | Hex. Flange Elastic Nut M8 |
| 140 | 207662046 | Hex. Flange Screw M6 X 20 |
| 150 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 180 | 207661646 | Hex. Flange Screw M6 X 16 |
| 300b | 512061516 | Vibration Damper |
| 310 | 250001060 | Screw-Pan HD.Torx M8X30 |
| 350 | 518331740 | LH Front Chassis Reinforcement |
| 400 | 518335308 | Chassis Suspension Module |
| 405 | 250001148 | Screw Hex M10 X 30 |
| 406 | 234001410 | Flat Washer 10 mm |
| 407 | 505072448 | O-Ring |
| 420 | 250100165 | Hex. Flange Elastic Nut M10 |
| 500 | 518331615 | Front Bottom Plate |
| 510 | 293450268 | Insert M5 X 0.8 |
| 540 | 390909100 | Avex Rivet |
| 545 | 293150264 | Rivet Ornit 6,5 X 10.5 |
| 790 | 293450278 | Insert |
| 800 | 518329480 | Member Fixation Plate |
| 815 | 293150237 | Avibulb Rivet 4.8 X 12.1 |
| 900a | 518333356 | LH Rear Diagonal Cross Member |
| 910a | 518332559 | RH Rear Diagonal Cross Member |
| 920 | 250000887 | Pan Head Torx Screw M8 X 12 |
| 1000 | 250300651 | Protruding Stud M5 x 12 |
| 1100 | 518329370 | Upper Colomn Support |
| 1120 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1121 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1122 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1123 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1124 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1125 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1126 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1140 | 207662046 | Hex. Flange Screw M6 X 20 |
| 1141 | 207662046 | Hex. Flange Screw M6 X 20 |
| 1142 | 207662046 | Hex. Flange Screw M6 X 20 |
| 1143 | 207662046 | Hex. Flange Screw M6 X 20 |
| 1144 | 207662046 | Hex. Flange Screw M6 X 20 |
| 1145 | 207662046 | Hex. Flange Screw M6 X 20 |
| 1146 | 207662556 | Hex. Flange Screw M6 X 25 |
| 1150 | 207562056 | Hex. Flange Screw M6 X 20 |
