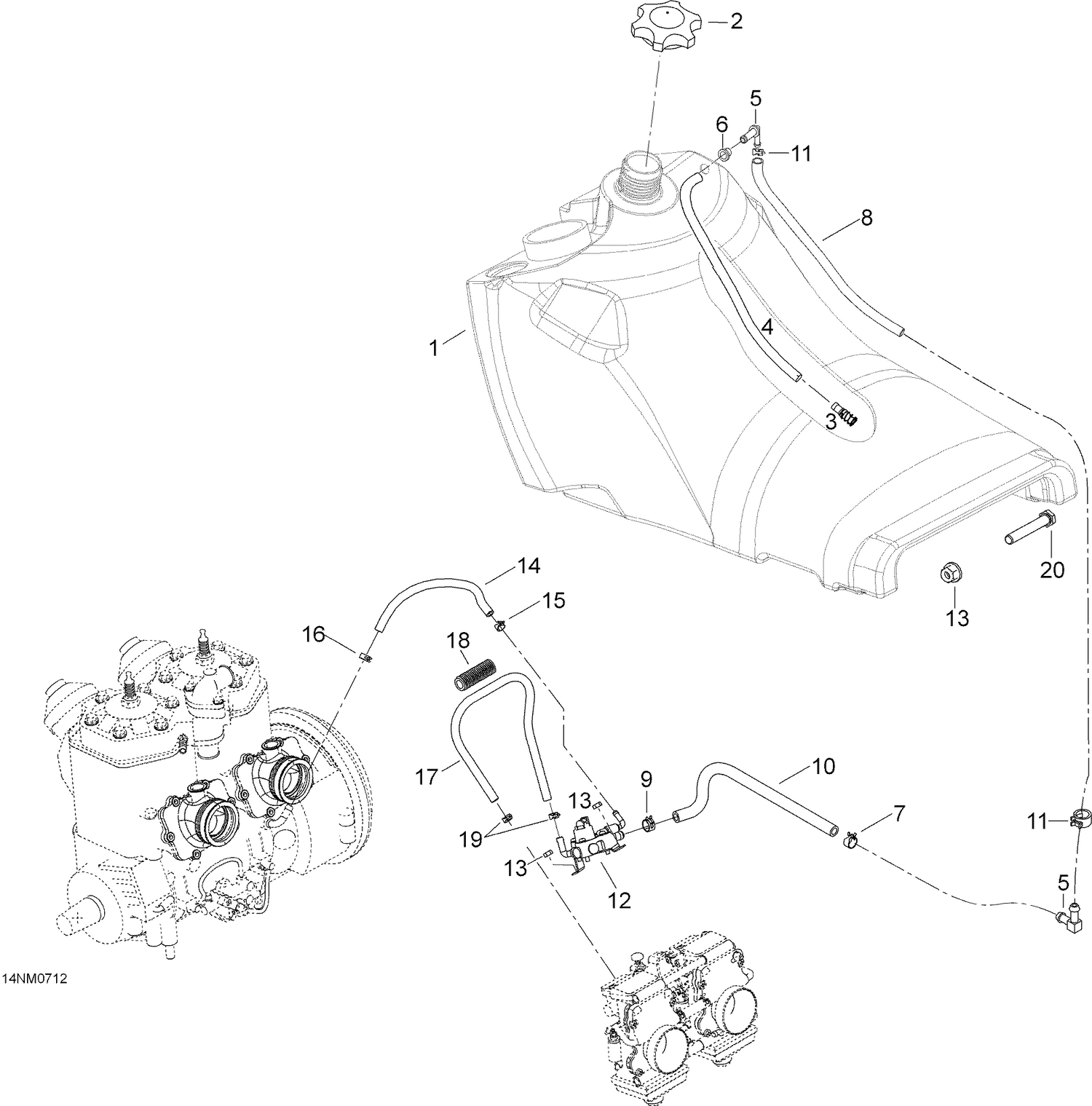

02- Fuel System
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605253731 | Fuel tank |
| 2 | 709000059 | FUEL CAP - Call your local BRP dealership |
| 3 | 414872100 | Fuel filter |
| 4 | 39048 | Hose |
| 5 | 5341709 | CONNECTOR-MALE - Call your local BRP dealership |
| 6 | 280000674 | Grommet This part replaces 28037. |
| 7 | 605627003 | Clamp |
| 8 | 513033374 | Formed Hose This part replaces 513033027. |
| 9 | 513032979 | UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 10 | 513033022 | HOSE 8 MM, METER - Call your local BRP dealership |
| 11 | 414655700 | Clamp |
| 12 | 403901811 | FUEL PUMP - Call your local BRP dealership |
| 13 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 14 | 513033035 | HOSE - Call your local BRP dealership |
| 15 | 414415200 | Clamp |
| 16 | 513033029 | Clamp |
| 17 | 415117800 | Hose |
| 18 | 28015 | Tubing |
| 19 | 414420700 | Universal Spring Clamp |
