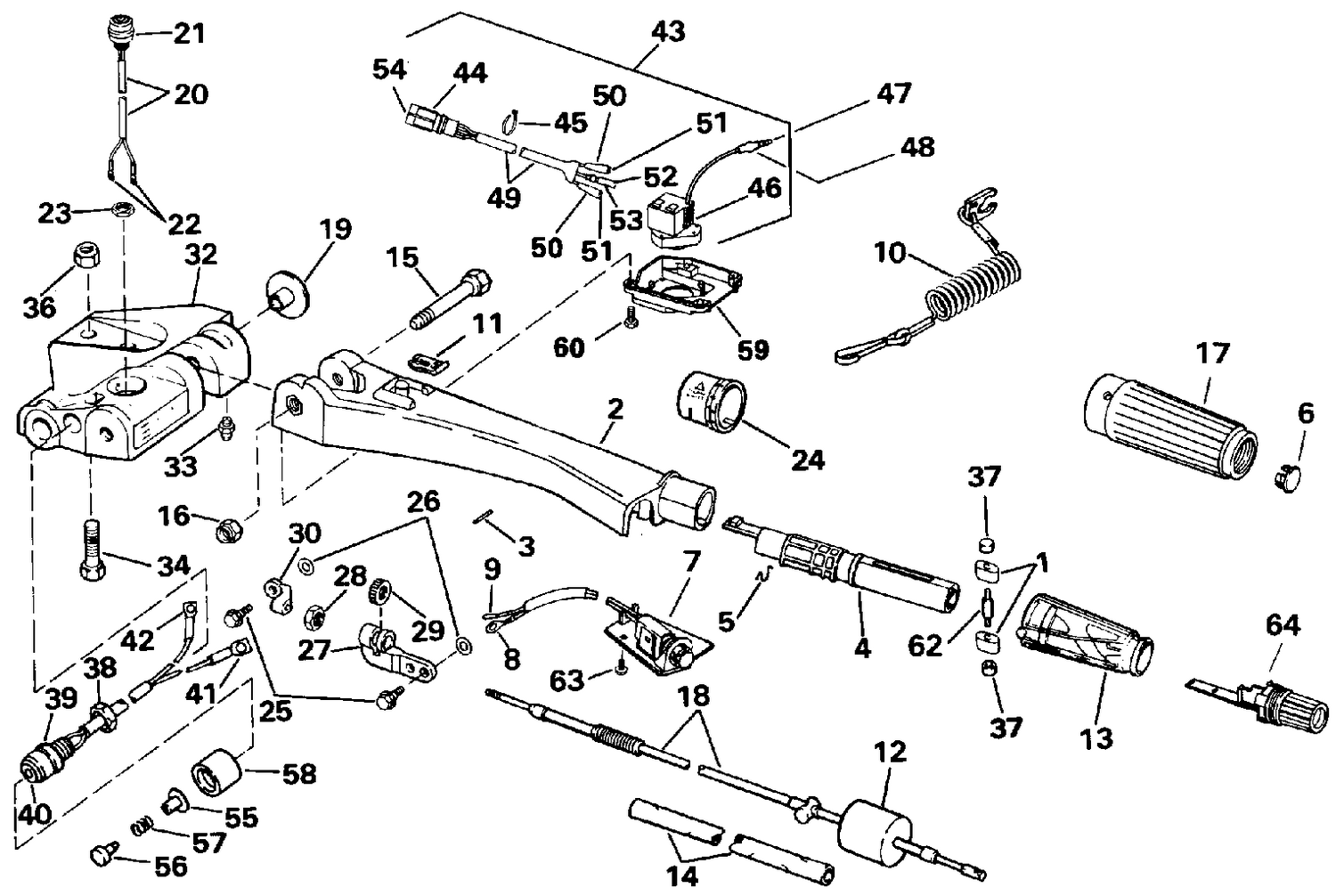

STEERING HANDLE
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 0585133 | INTERRUPTEUR D'ARRÊT This part replaces 0584267. |
| 13 | 0329882 | GRIP&HELIX AY |
| 17 | 0433657 | GRIP ASSY |
| 18 | 0397002 | THROTTLE CABLE ASSY. |
| 25 | 0326618 | SCREW, Clamp |
| 27 | 0397129 | CONNECTOR KIT |
| 30 | 0325715 | CONNECTOR, Throttle cable |
| 32 | 0334642 | BRACKET, Steering handle |
| 43 | 0583934 | CABLE & HORN, VRO |
| 46 | 0585992 | HORN This part replaces 0583931. |
| 49 | 0583935 | CABLE ASSEMBLY |
| 57 | 0313584 | SPRING |
| 59 | 0334942 | COVER, Cable & horn |
| 63 | 0316195 | SCREW |
