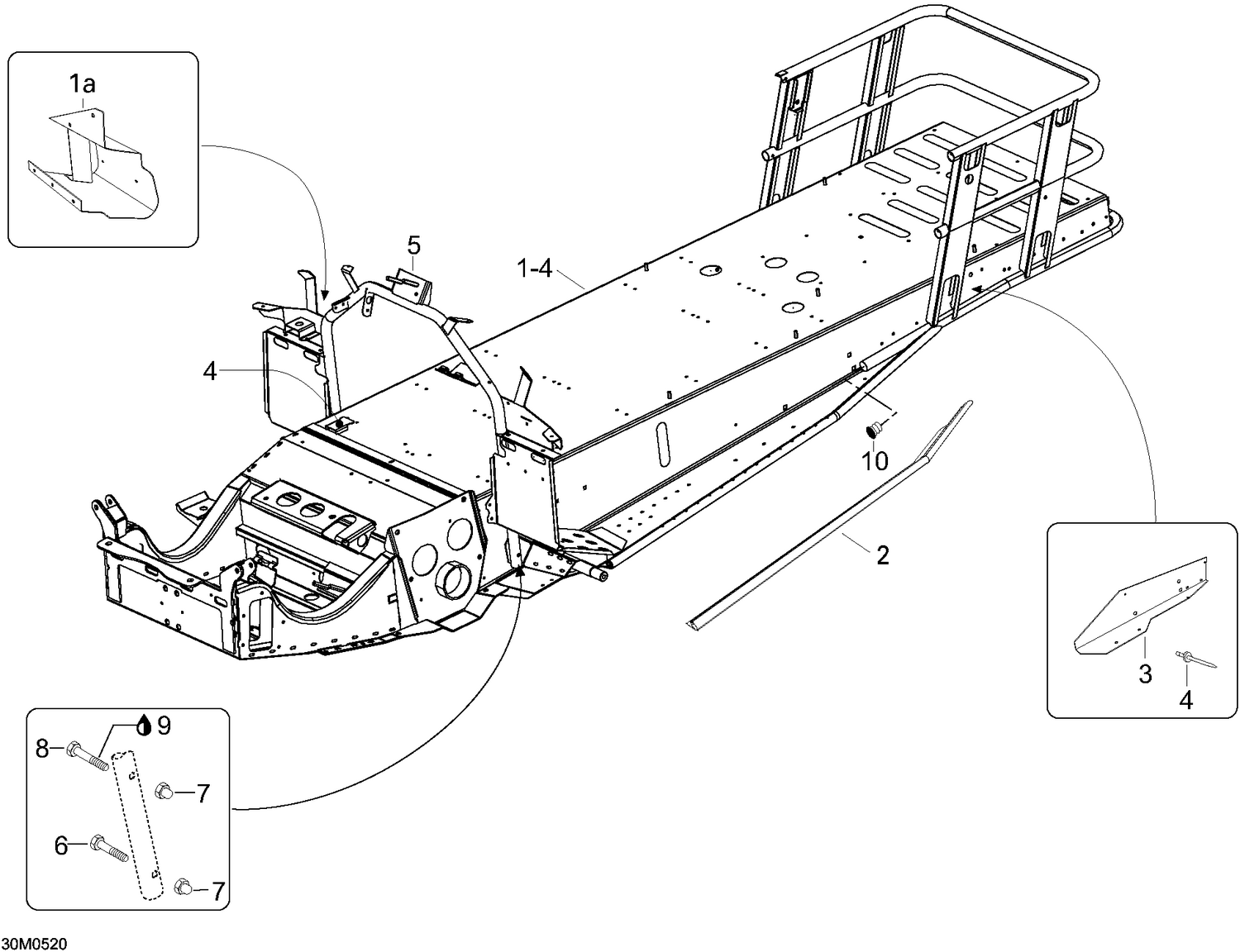

09- Frame
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1a | 605350839 | RH Toe Rest |
| 1a | 605350840 | LH TOE REST - Call your local BRP dealership |
| 2 | 605250773 | LH REINFORCEMENT - Call your local BRP dealership |
| 2 | 605250774 | RH REINFORCEMENT - Call your local BRP dealership |
| 3 | 605350845 | LH CONER SUPPORT - Call your local BRP dealership |
| 3 | 605350846 | RH Coner Support |
| 4 | 36005 | Rivet This part replaces M36005. |
| 5 | 605151693 | Steering Support |
| 6 | 207063044 | Hex. Screw M6 X 30 |
| 7 | 232061414 | Hex. Nut M6 |
| 8 | 207064044 | Hex. Screw M6 X 40 |
| 9 | 293800060 | Loctite 243, 10 ml |
