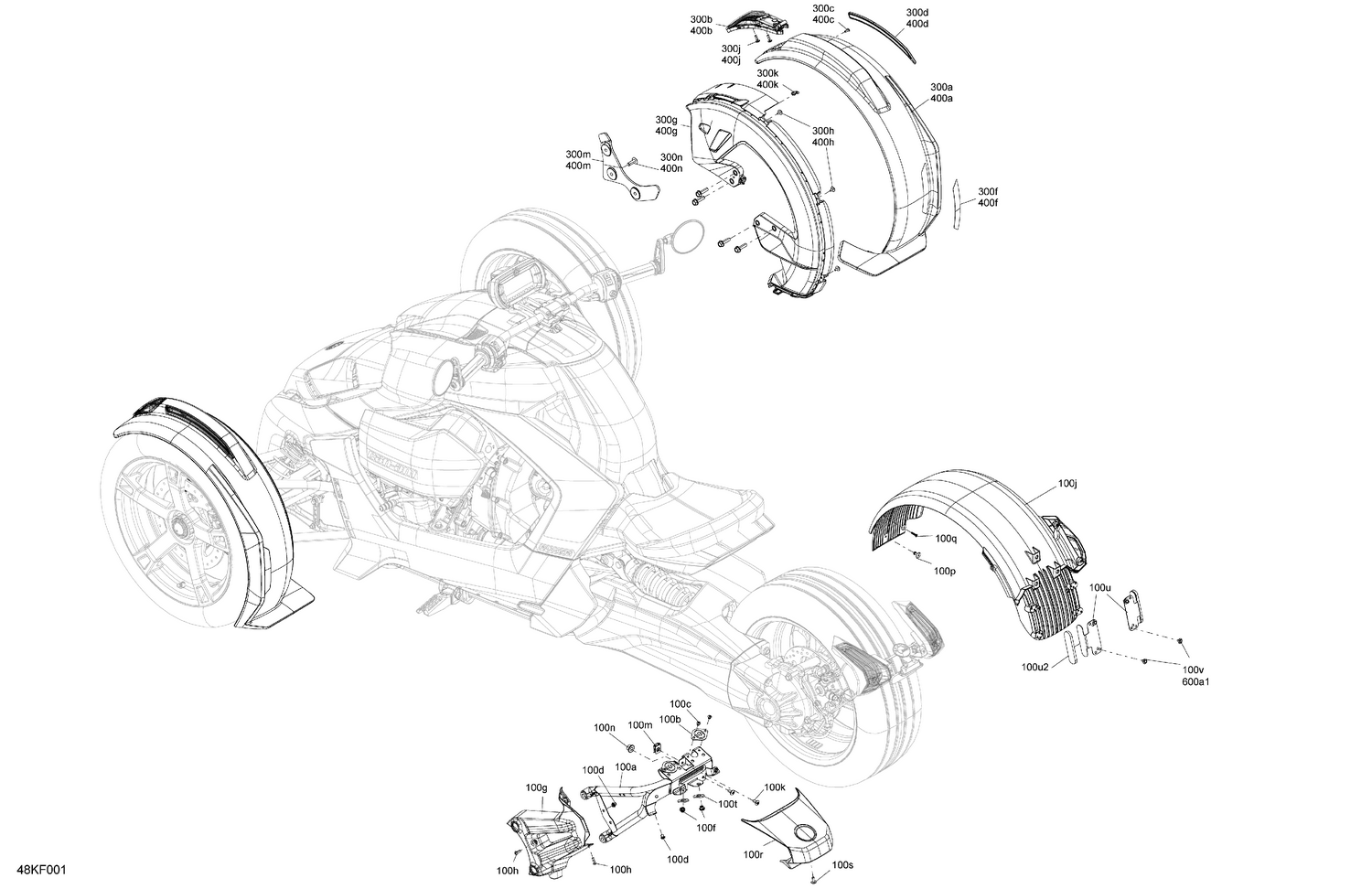

| Ref | Part Number | Description |
|---|
| 100a |
705013304 |
Rear Fender Support |
| 100b |
705005055 |
Grommet Ass'y |
| 100c |
293150300 |
Black, Pop Rivet 3/16 X ,425 |
| 100d |
293450267 |
Insert M5 - 0.8 |
| 100f |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 100g |
705013305 |
LH Fender Trim Support |
| 100h |
250000578 |
Torx Truss Screw M5 X 16, T25 |
| 100j |
705011162 |
Deep Black, Rear Fender |
| 100k |
250000789 |
Torx Truss M6X14 |
| 100m |
250100208 |
Panel Nut M6 X 1.0 |
| 100n |
233061414 |
Hex. Flange Nut M6 |
| 100p |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 100q |
250001097 |
Screw 8-32 |
| 100r |
706003151 |
Rear Fender Trim |
| 100s |
250000616 |
Black, Socket Screw, M6 X 16 S.Grip |
| 100t |
224061121 |
Flat Washer |
| 100u2 |
705015551 |
Red, Reflector |
| 100v |
250000725 |
Screw M4 X 16 |
| 300a |
705010755 |
LH Front Fender |
| 300b |
710007008 |
LH Front Position Light |
| 300c |
250001131 |
Torx Truss PT K40 x 12 |
| 300d |
705012404 |
Yellow, LH Reflector |
| 300f |
705012406 |
Rear Reflector, Front Fender |
| 300g |
705017326 |
LH Front Fender Support |
| 300h |
250000805 |
Plastite Screw M4 X 10 |
| 300j |
250000720 |
Torx Screw K50 X 16 |
| 300k |
409210100 |
Clip Bracket Connector (edge) |
| 300m |
705018433 |
LH Front Fender Trim |
| 300n |
250001131 |
Torx Truss PT K40 x 12 |
| 400a |
705010756 |
RH Front Fender |
| 400b |
710007009 |
RH Front Position Light |
| 400c |
250001131 |
Torx Truss PT K40 x 12 |
| 400d |
705012405 |
Yellow, RH Reflector |
| 400f |
705012406 |
Rear Reflector, Front Fender |
| 400g |
705017327 |
RH Front Fender Support |
| 400h |
250000805 |
Plastite Screw M4 X 10 |
| 400j |
250000720 |
Torx Screw K50 X 16 |
| 400k |
409210100 |
Clip Bracket Connector (edge) |
| 400m |
705018434 |
RH Front Fender Trim |
| 400n |
250001131 |
Torx Truss PT K40 x 12 |
