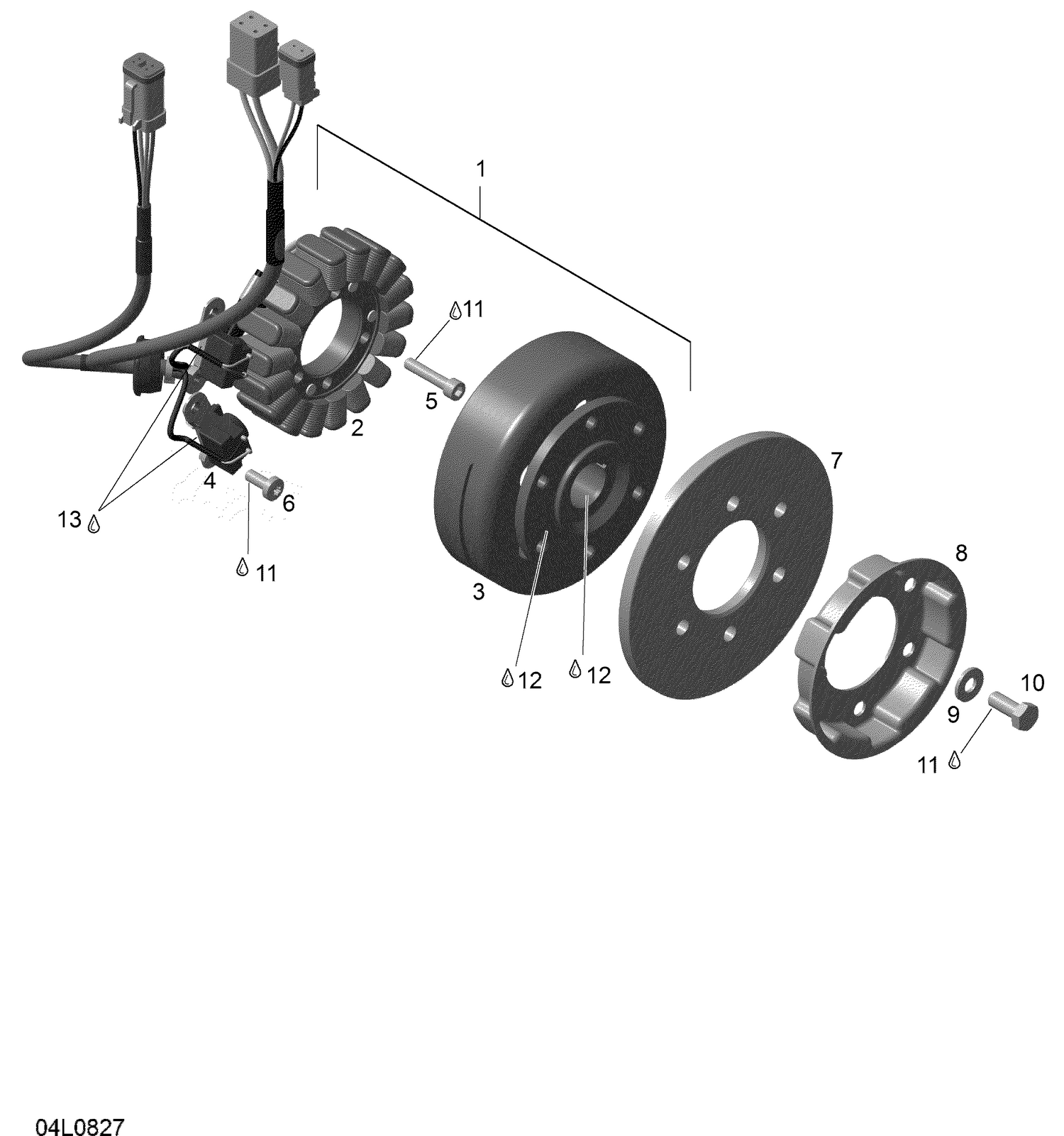

| Ref | Part Number | Description |
|---|
| 2 |
420888905 |
Stator ass'y |
| 3 |
420665722 |
Flywheel This part replaces 420665720. |
| 4 |
410922948 |
Pickup Ass'y This part replaces 420966803. |
| 5 |
205063044 |
Allen screw M6x30 This part replaces 420840880. |
| 6 |
420640324 |
Torx Screw M6 X 16 This part replaces 420640321. |
| 7 |
420866070 |
FLYWHEEL - Call your local BRP dealership |
| 8 |
420852534 |
STARTING PULLER - Call your local BRP dealership |
| 9 |
420827405 |
Washer |
| 10 |
207182044 |
Hex. Cap Screw M8 x 20 This part replaces 420940591. |
| 11 |
293800060 |
Loctite 243, 10ml |
| 12 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
