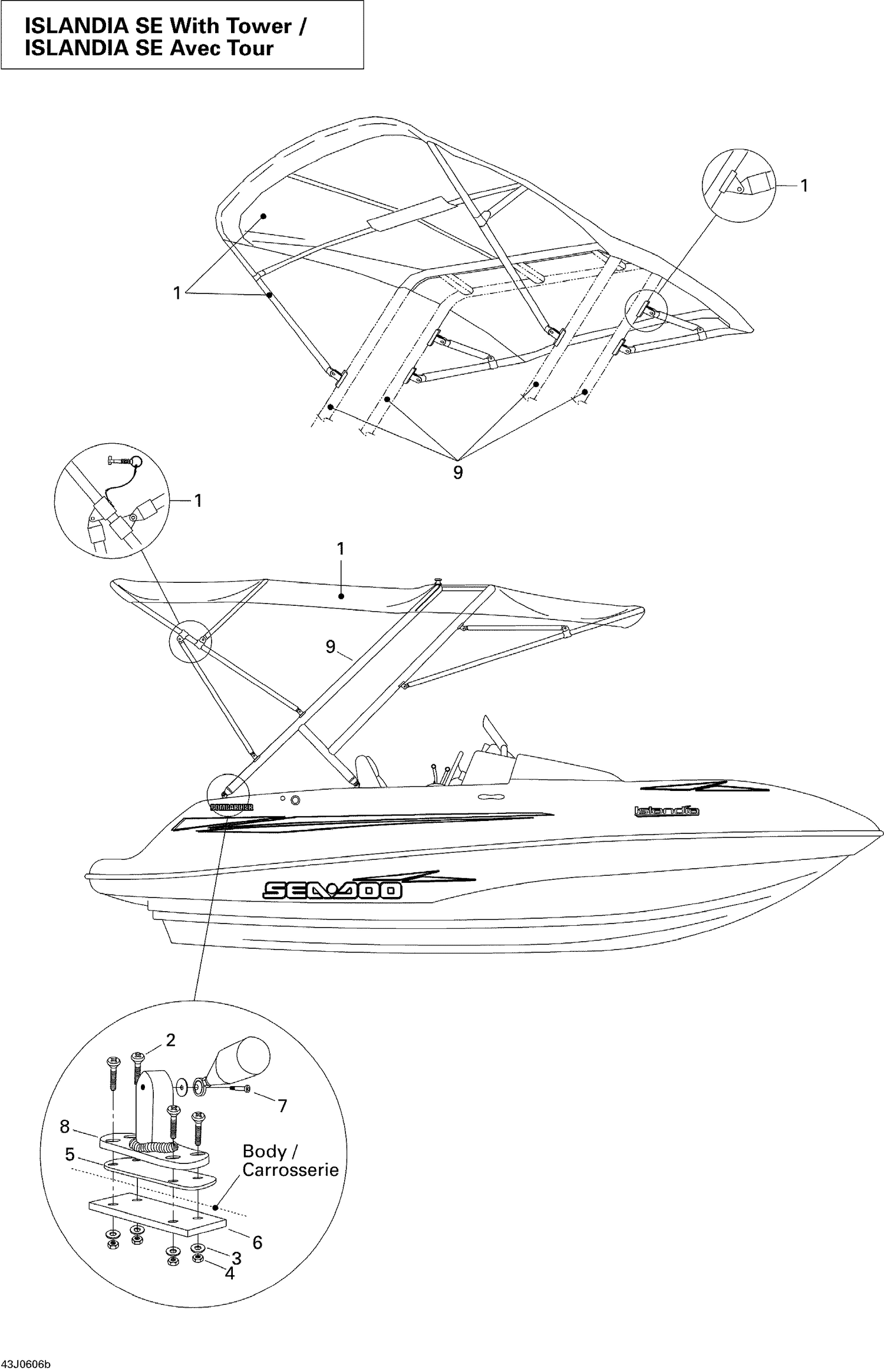

09- Bimini Top SE with Tower
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204072371 | Bimini Top Ass’y |
| 2 | 204100151 | SCREW-CTSK.OV.HD. 1/4-20 X 2 - Call your local BRP dealership |
| 3 | 204071423 | WASHER - Call your local BRP dealership |
| 4 | 212000005 | NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 5 | 204130135 | Gasket |
| 6 | 204072472 | Backing Plate |
| 7 | 204100145 | SHOULDERED BOLT - Call your local BRP dealership |
| 8 | 204072546 | Tower Mounting Kit |
