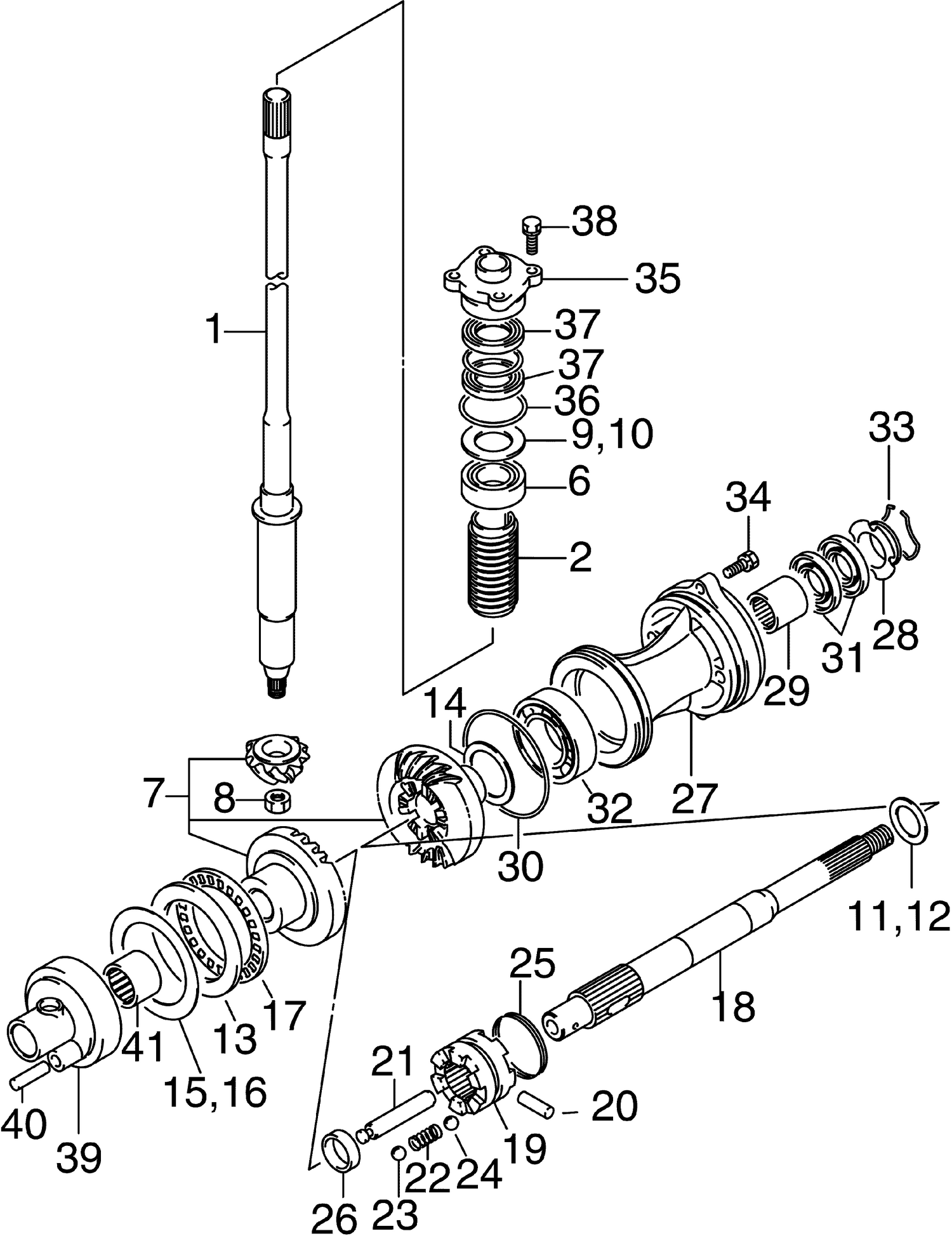

GEARS, STANDARD
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5034639 | SHAFT Assy, DRIVE 20 IN. MODELS |
| 1 | 5034640 | SHAFT Assy, DRIVE 25 IN. MODELS This part replaces 5037217. |
| 2 | 5032553 | COLLAR, DRIVE SHAFT |
| 6 | 5030532 | BEARING |
| 8 | 5033966 | NUT |
| 9 | 5030975 | SHIM KIT, Driveshaft |
| 11 | 5033990 | SHIM SET, PROP SHAFT REV |
| 13 | 5033973 | WASHER, FWD (70X95X5.25mm) |
| 15 | 5033991 | SHIM SET |
| 16 | 5033976 | Shim 70X95X0.9 |
| 17 | 5033986 | BEARING (70X95X4.0mm) Forward |
| 20 | 5032584 | PIN |
| 25 | 5034145 | SPRING |
| 26 | 5033952 | SPACER |
| 27 | 5033946 | HOUSING, PROP SFT BRG |
| 34 | 5031216 | BOLT |
| 35 | 5033846 | HOUSING |
| 38 | 5030398 | BOLT |
| 39 | 5033948 | HOUSING, FWD GEAR BRG |
